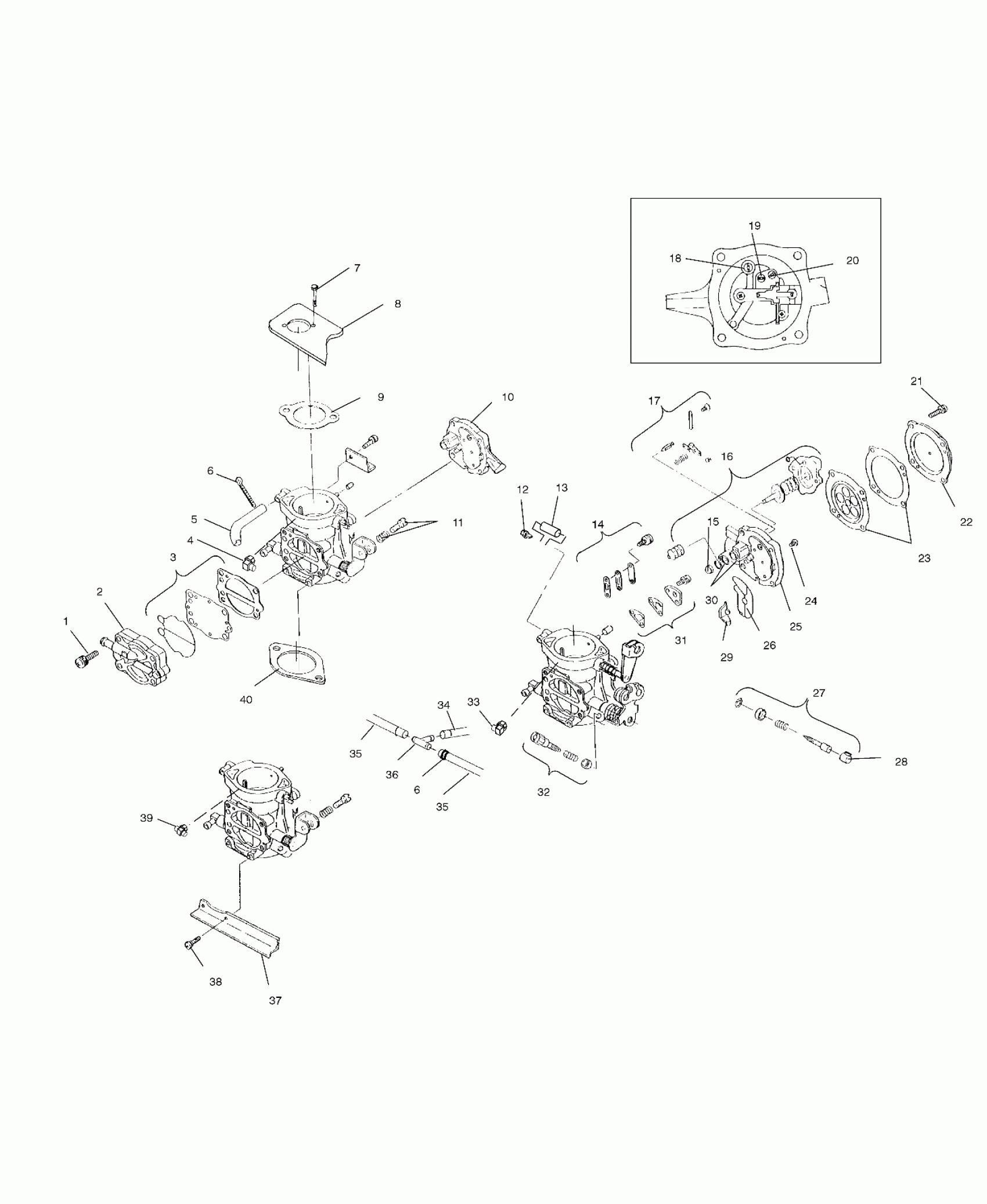

Polaris VIRAGE TX - W025199D CARBURETOR - W025199D/W025199I (4971327132C09) Diagram

#

Description
Price

-

Asm., Carburetor, Keihin

1253323

Unavailable

-

Kit, Carb Rebuild [Incl. 9,17,23,40]

2200910

Unavailable

1

Screw, Fuel Pump

3050136

Unavailable

2

Kit, Fuel Pump Body

2200687

Unavailable

3

Kit, Gasket, Fuel Pump

2200686

Unavailable

4

Nozzle, PTO

3050254

Unavailable

5

Hose, Fuel

3050143

Unavailable

6

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

6

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

7

SCR-M6X1.00X145-HX/FL-SS

7516816

$29.99

8

Base, Intake Silencer

5630546

$49.75

9

Gasket, Carb, Upper

5830062

Unavailable

10

Block, Jet

3050258

Unavailable

11

Kit, Synchronizing Screw

2200734

Unavailable

12

Joint, Connecting

3050156

$26.19

13

Tube, Rubber

3050157

Unavailable

14

Kit, Check Valve, Mid Range [1 Per Carb] [1 Per Carb]

2200685

Unavailable

15

Screen, Fuel Strainer

3050144

Unavailable

16

Kit, Accelerator Pump [1 Per Carb] [1 Per Carb]

2201309

Unavailable

17

Kit, Needle Valve [Per Carb] [1 Per Carb]

2200733

Unavailable

18

Jet, Main Mag [Per Carb] [Per Carb]

3050186

$8.98

18

Jet, Main [Per Carb] Center [Per Carb]

3050187

$8.98

18

Jet, Main [Per Carb] PTO [Per Carb]

3050184

$8.98

19

Jet, Pilot [1 Per Carb] [1 Per Carb]

3050128

$6.27

20

Jet, Pilot [1 Per Carb] [1 Per Carb]

3050118

Unavailable

21

Screw, Jet Block Cover

3050135

Unavailable

22

Cover, Jet Block

3050139

$45.24

23

Kit, Diaphragm, Jet Block [1 Per Carb] [1 Per Carb]

2200730

Unavailable

24

Screw, Jet Block [1 Per Carb] [1 Per Carb]

3050137

$3.98

25

Block, Jet

3050259

Unavailable

26

O-Ring, Jet Block

3050147

Unavailable

27

Kit, Idler Mixture Screw [1 Per Carb] [1 Per Carb]

2200689

Unavailable

28

Cap, Limiter

3050140

Unavailable

29

Collar

3050138

Unavailable

30

O-Ring, Valve Seat

3050148

Unavailable

31

Kit, Check Valve, Main [1 Per Carb] [1 Per Carb]

2200688

$34.21

32

Kit, Idle Stop Screw

2200731

$27.92

33

Nozzle, Magneto, Keihin

3050252

Unavailable

34

Tube, Rubber

3050261

Unavailable

35

Hose, Fuel, Accelerator Pump

3050142

Unavailable

35

Hose, Fuel, Accelerator Pump

3050142

Unavailable

36

Fitting, Tee

3050141

$9.52

37

Plate, Connecting

3050164

$23.65

38

Screw, Connecting Plate

3050159

Unavailable

39

Nozzle, Center, Keihin

3050253

Unavailable

40

Gasket, Carburetor

5830043

Unavailable
