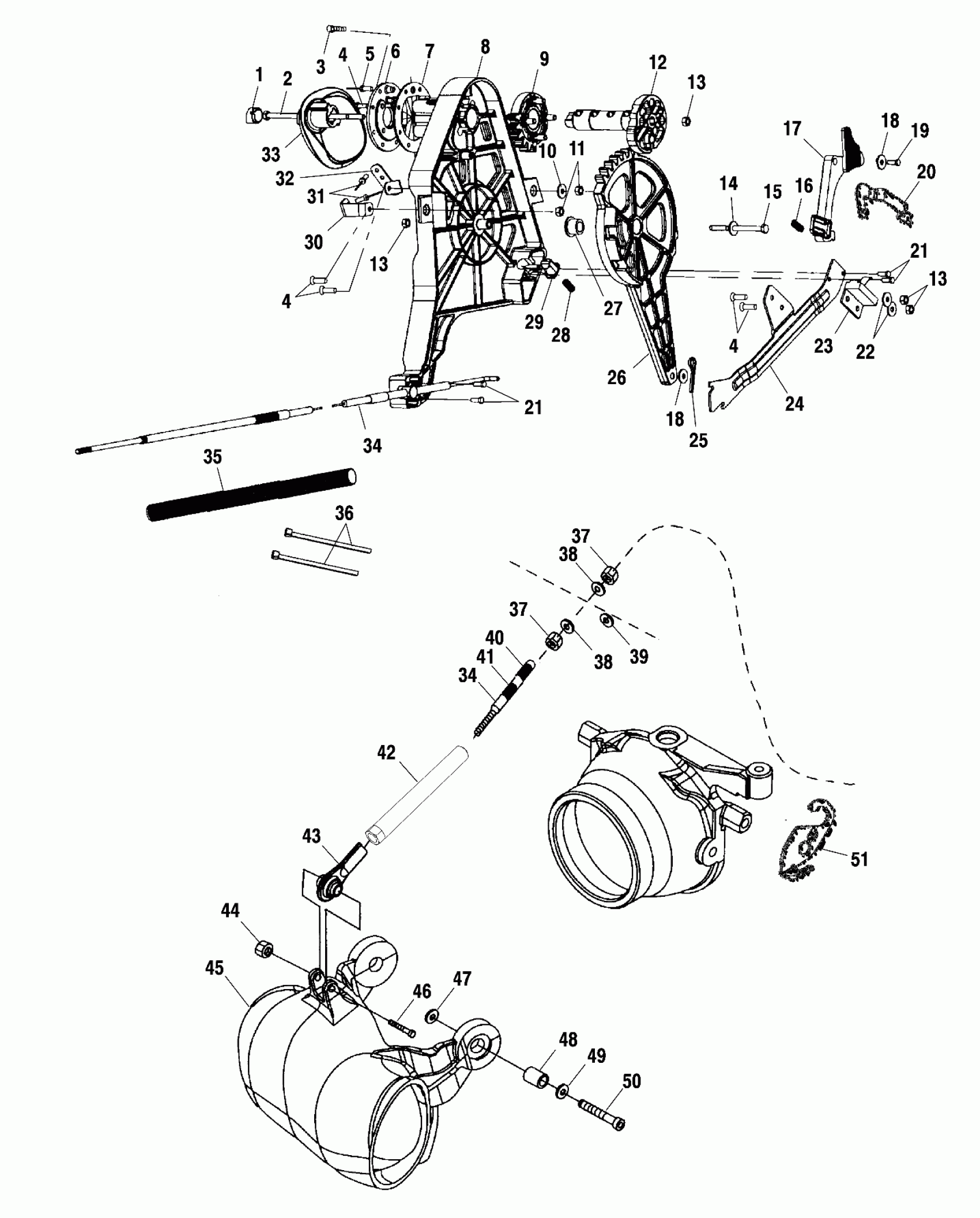

Polaris VIRAGE TX - W015199D REVERSE - W015199D (4964836483B003) Diagram

#

Description
Price

1

CAP,REVERSE HANDLE,BLK

5433677-070

Unavailable

2

SCR-M6X1.00X145-HX/FL-SS

7516816

$29.99

3

SCREW, S.S.(10)

7516805

$0.71

4

SCREW (10)

7517669

Unavailable

4

SCREW (10)

7517669

Unavailable

4

SCREW (10)

7517669

Unavailable

5

RIVET-POP 3/16(10)

7661040

$0.54

6

FLANGE-BASE,REVERSE

5434066

$11.51

7

GASKET-REVERSE,MS

5811982

Unavailable

8

PLATE-BASE,REVERSE

5433643

Unavailable

9

PINION-REVERSE,1"

5434067

Unavailable

10

WASHER, LOCK(10)

7552613

Unavailable

11

NUT, 6 MM.,S.S.(10)

7546705

$4.76

12

SHAFT-CAM,REVERSE [No Longer Available]

5433955

Unavailable

13

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

13

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

13

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

14

WASHER, FLAT, S.S.(10)

7555856

$3.19

15

BOLT(10)

7516806

Unavailable

16

SPRING,COMPRESSION

7041888

$13.10

17

ARM-REVERSE LOCK

5433676

Unavailable

18

WASHER, FLAT, S.S.(10)

7555837

$1.59

18

WASHER, FLAT, S.S.(10)

7555837

$1.59

19

SCREW, S.S.(10)

7511882

$1.59

20

BRKT-LOCK ARM SUPPORT

5412058

$28.73

21

SCREW(10)

7512049

Unavailable

21

SCREW(10)

7512049

Unavailable

22

WASHER, FLAT [No Longer Available]

7555857

Unavailable

23

SWITCH-RVS,LIMIT,SEALED

2410241

Unavailable

24

BRKT-REVERSE,SUPPORT

5245180

$57.94

25

PIN, COTTER(10)

7661010

$1.19

26

ARM,REVERSE Substituted by 5433954

5433871

Unavailable

27

BSHG-FLG,.500X.750X.563,AF

5433647

Unavailable

28

SPRING-COMPRESSION

7041995

$13.10

29

PLUNGER-DETENT,REVERSE

5433673

Unavailable

30

BRKT,REVERSE PLATE,REAR

5244289

Unavailable

31

RIVET-POP 3/16(.376-.750)AL-SS Substituted by 7621511

7661041

$0.49

32

BRKT,REVERSE PLATE,FWD Substituted by 5245635

5244288

Unavailable

33

HANDLE-REVERSE,BLACK

5433605-070

Unavailable

34

CABLE,REVERSE

7080899

Unavailable

34

CABLE,REVERSE

7080899

Unavailable

35

CONDUIT-CONVOLUTED,100 CM

4010051-100

$9.89

36

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

37

NUT (10)

7542528

$2.19

37

NUT (10)

7542528

$2.19

38

Washer

1860103

$3.33

38

Washer

1860103

$3.33

39

WASHER, LOCK,S.S.(10)

7571625

$2.38

40

SEAL,ROD

5411818

Unavailable

41

SEAL,ROD

5411819

$2.94

42

ASM-GUIDE TUBE,REVERSE,.75

7080950

Unavailable

43

ROD,END,1/4-28X.375

7061062

$27.94

44

NUT,NYLOK,S.S.(10)

7542133

Unavailable

45

GATE-REVERSE,DIRECTIONAL

5434049

Unavailable

46

SCREW1/4-20X1.75HX(10)

7517749

$2.06

47

WASHER(10)

7555866

Unavailable

48

Collar

5020683

$6.59

49

WASHER,FLAT,S.S.(10)

7555874

$2.38

50

BOLT, S.S.(10)

7515368

Unavailable

51

BRKT-REVERSE STOP,PLASTIC GATE

5434272

Unavailable
