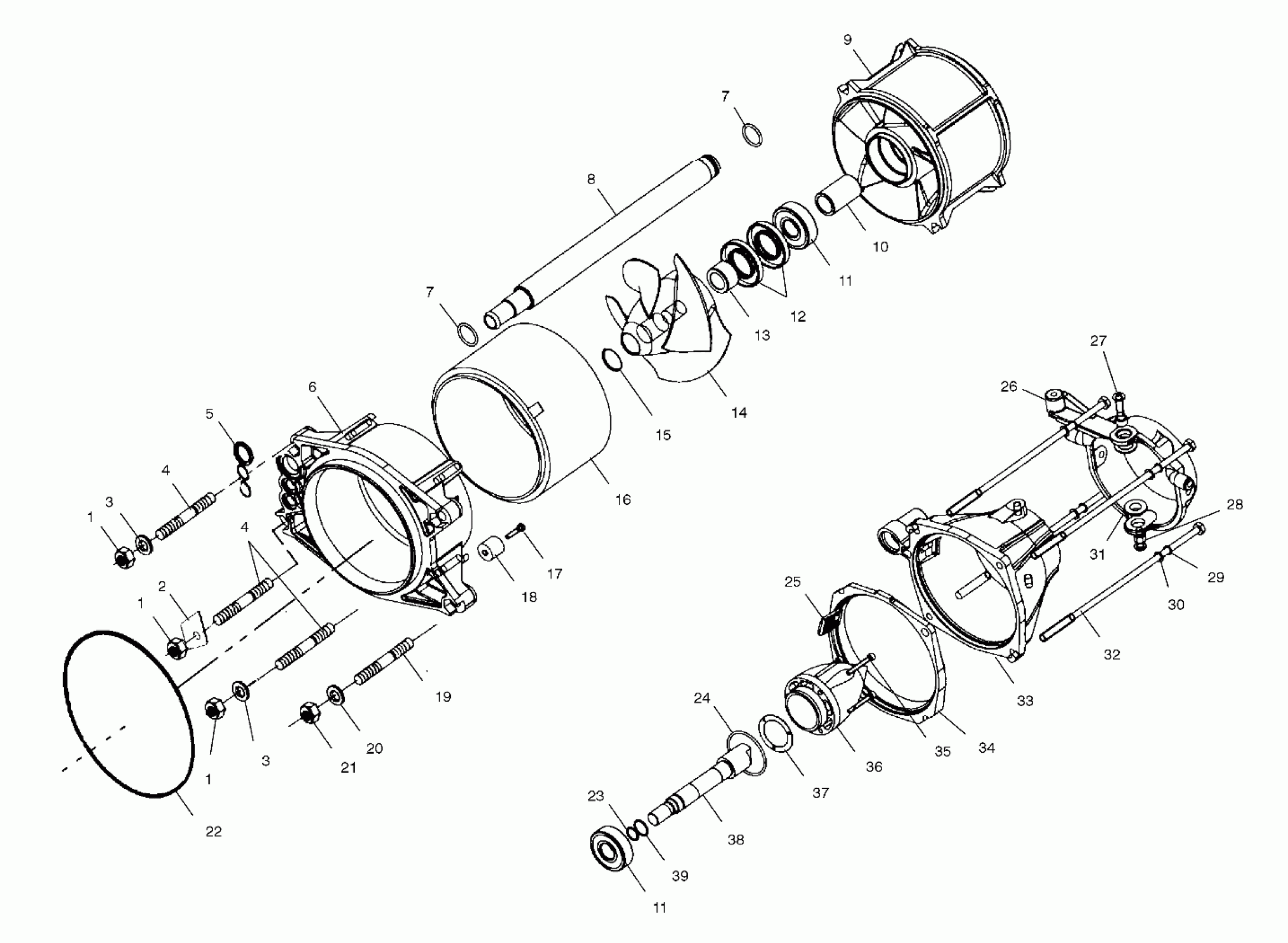

Polaris VIRAGE TX - W015199D PROPULSION - W015199D (4964836483B002) Diagram

#

Description
Price

1

NUT,HEX,S.S.(10)

7542455

Unavailable

1

NUT,HEX,S.S.(10)

7542455

Unavailable

1

NUT,HEX,S.S.(10)

7542455

Unavailable

2

BRKT,STEERING CABLE NUT

5244556

Unavailable

3

WASHER,FLAT, S.S.(10)

7555853

$2.62

3

WASHER,FLAT, S.S.(10)

7555853

$2.62

4

STUD,MOUNT,PUMP,1.38 INT.

5132355

Unavailable

4

STUD,MOUNT,PUMP,1.38 INT.

5132355

Unavailable

5

SEAL,WATER PIPE

5411107

Unavailable

6

HSG,PUMP,W/O RING,INT STUD

5131573

Unavailable

7

O RING,(10)

5410735

$0.79

7

O RING,(10)

5410735

$0.79

8

PIPE,WATER,ENG.(X-PUMP)

5432269

$30.71

9

STATOR,SS,ASIA TREND

5132088

$364.99

10

Spacer

5010294

Unavailable

11

Bearing

3514008

Unavailable

11

Bearing

3514008

Unavailable

12

SEAL,BRG,STATOR

3610043

Unavailable

13

Spacer, Impeller

5010295

Unavailable

14

IMPELLER,17-25,3BLADE,SS

5131554

Unavailable

15

O-RING(10)

5410731

Unavailable

16

EXTENSION,PUMP

5131196

$204.99

17

SCREW(10)

7522019

$0.95

18

ANODE-ZINC Substituted by 2200745

5630598

Unavailable

19

STUD,MOUNT,PUMP,LONG INT.

5132111

Unavailable

20

WASHER, LOCK, S.S.(10)

7552607

$1.39

21

NUT, HEX, S.S.,(10)

7542454

Unavailable

22

O-RING,PUMP HSG/HULL

5410652

Unavailable

23

O-RING,(10)

5410817

Unavailable

24

O-RING(10)

5410819

$0.79

25

SCREEN,ENG.INLET

5431523

Unavailable

26

NOZZLE,STRG,SLT

5130999

Unavailable

27

BOLT, S.S.(10)

7515366

Unavailable

28

Collar

5130938

Unavailable

29

WASHER, LOCK, S.S.(10)

7552610

Unavailable

30

WASHER, FLAT, S.S.,(10)

7555835

$0.69

31

BRG,STRG.NOZZLE,(10)

5431518

Unavailable

32

Bolt

7515389

Unavailable

33

NOZZLE,STAT.,0X4 WEDGE

5131569

Unavailable

34

WEDGE,PUMP,0X4,MOLDED

5432841

Unavailable

35

SCREW(10)

7512064

Unavailable

36

Cone, Pump

5431519

Unavailable

37

SEAL,TAILCONE

5811984

Unavailable

38

SHAFT-STUB

5132674

$47.62

39

O-RING(10)

5410818

$0.79
