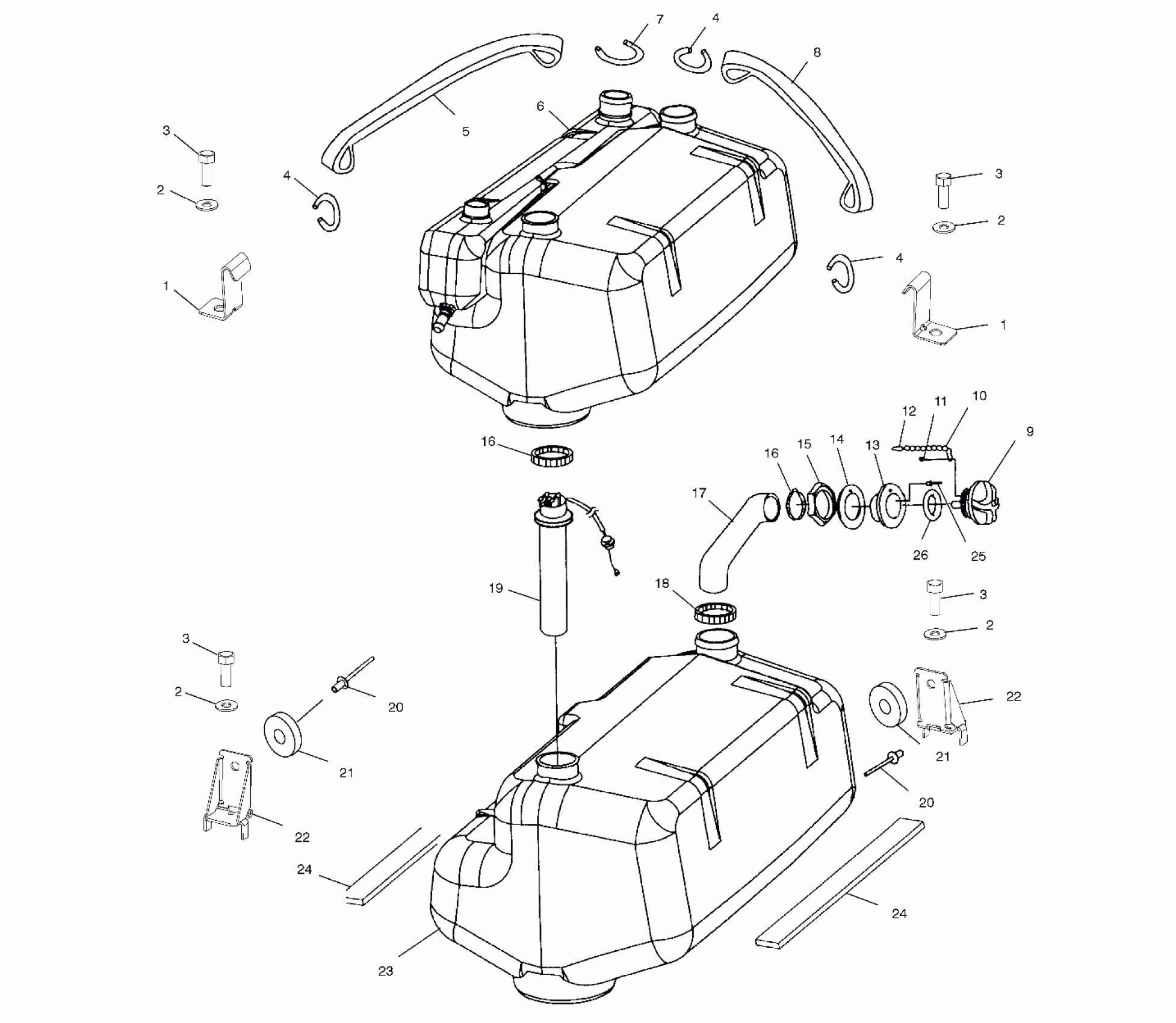

Polaris VIRAGE TX - W015199D FUEL TANK - W015199D (4964836483A009) Diagram

#

Description
Price

1

BRKT-STRAP,5/16 BOLT

5244279

Unavailable

1

BRKT-STRAP,5/16 BOLT

5244279

Unavailable

2

WASHER, LOCK, S.S.(10)

7552610

Unavailable

2

WASHER, LOCK, S.S.(10)

7552610

Unavailable

2

WASHER, LOCK, S.S.(10)

7552610

Unavailable

2

WASHER, LOCK, S.S.(10)

7552610

Unavailable

3

BOLT, S.S.(10)

7515361

$2.19

3

BOLT, S.S.(10)

7515361

$2.19

3

BOLT, S.S.(10)

7515361

$2.19

3

BOLT, S.S.(10)

7515361

$2.19

4

HOOK,STRAP,NARROW

5243775

$4.92

4

HOOK,STRAP,NARROW

5243775

$4.92

4

HOOK,STRAP,NARROW

5243775

$4.92

5

STRAP-BATTERY

5430621

Unavailable

6

Tank, Oil (See Oil Tank Pg. A12, Ref. 15)

----

Unavailable

7

HOOK,STRAP,180 DEG RETURN

5243776

$2.46

8

STRAP,BATTERY HOLDDOWN

5410424

$4.84

9

CAP,FUEL,RATCHET,ASM. Substituted by 2201745

2520177

Unavailable

10

CHAIN,BEAD,FUELCAP RETAIN.

7080710

Unavailable

11

SCREW(10)

7511873

Unavailable

12

Coupling

7080442

Unavailable

13

INLET,FUEL

5433553

$13.89

14

SEAL,FUEL INLET

5811492

$20.59

15

NUT,INLET,FUEL

5433621

$17.44

16

CLAMP,HOSE,SS.

7080766

$2.06

16

CLAMP,HOSE,SS.

7080766

$2.06

17

HOSE,FUEL FILL

5411757

$57.94

18

CLAMP, HOSE, S.S.(10)

7080451

$7.14

19

SENDER,PICKUP,ASM.17 GAL

2410124

Unavailable

20

RIVET

7621407

$1.19

20

RIVET

7621407

$1.19

21

PAD-FUEL TANK STOP,5/16

5812206

Unavailable

21

PAD-FUEL TANK STOP,5/16

5812206

Unavailable

22

BRKT,FUEL TANK STOP

5244758

$28.11

22

BRKT,FUEL TANK STOP

5244758

$28.11

23

TANK,FUEL,16 GAL

5433018

Unavailable

24

PAD-EVA,26"X5"X.22

5812152

Unavailable

24

PAD-EVA,26"X5"X.22

5812152

Unavailable

25

RIVET(50)

7621229

Unavailable

26

SEAL,FUEL CAP

5411305

Unavailable
