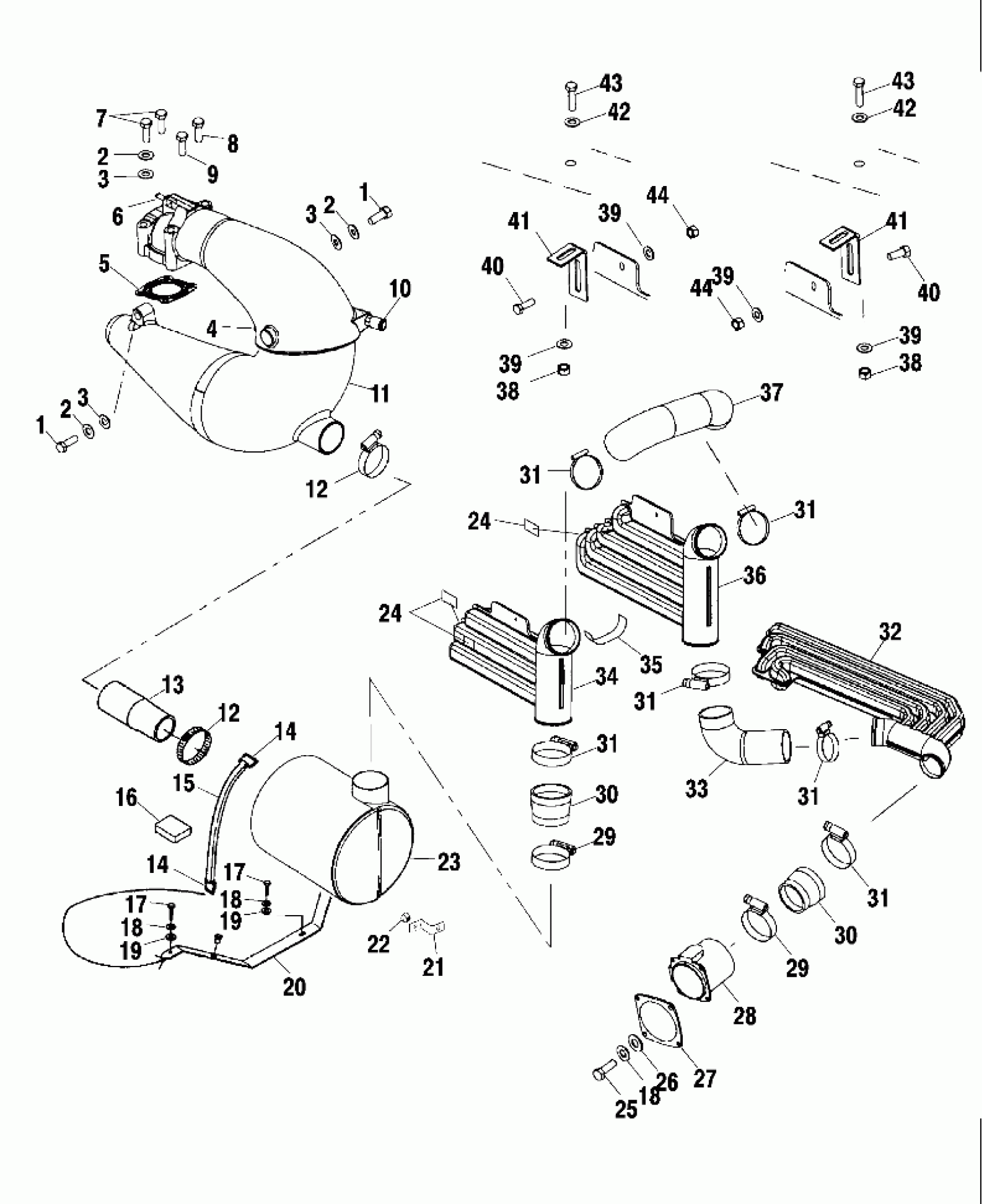

Polaris VIRAGE TX - W015199D EXHAUST SYSTEM - W015199D (4964836483B005) Diagram

#

Description
Price

1

Screw

7517309

Unavailable

1

Screw

7517309

Unavailable

2

WASHER, LOCK,SS.(10)

7552611

Unavailable

2

WASHER, LOCK,SS.(10)

7552611

Unavailable

2

WASHER, LOCK,SS.(10)

7552611

Unavailable

3

WASHER, FLAT, S.S.(10)

7555856

$3.19

3

WASHER, FLAT, S.S.(10)

7555856

$3.19

3

WASHER, FLAT, S.S.(10)

7555856

$3.19

4

Fitting, Exhaust Injector (See Cooling System Pg. B9, Ref. 14) (See Cooling System Pg. B9, Ref. 14)

----

Unavailable

5

GASKET,EXH.PIPE

5830051

Unavailable

6

FITTING,SCREEN,EXH.

7052105

$32.54

7

BOLT, S.S.(10)

7517004

Unavailable

8

BOLT, S.S.

7517005

$10.46

9

SCREW, S.S.

7517209

$10.32

10

FITTING,WATER INLET

5020668

Unavailable

11

ASM-EXHST PIPE 3CYL PWC-01FRED

1261084-093

Unavailable

12

CLAMP,HOSE,SS.

7080766

$2.06

12

CLAMP,HOSE,SS.

7080766

$2.06

13

HOSE,PIPE/SILENCER

5411117

Unavailable

14

HOOK,'D',SST/SS,(10)

5224472

Unavailable

14

HOOK,'D',SST/SS,(10)

5224472

Unavailable

15

STRAP,RUBBER

5410853

$9.84

16

PAD,FOAM,SHORT

5811341

$4.13

17

BOLT(10)

7515127

Unavailable

17

BOLT(10)

7515127

Unavailable

18

WASHER, LOCK, S.S.(10)

7555838

Unavailable

18

WASHER, LOCK, S.S.(10)

7555838

Unavailable

18

WASHER, LOCK, S.S.(10)

7555838

Unavailable

19

WASHER, FLAT, S.S.(10)

7555839

Unavailable

19

WASHER, FLAT, S.S.(10)

7555839

Unavailable

20

CRADLE,SILENCER

5241732

$14.76

21

BRKT,SILENCER,SHORT

5243742

Unavailable

22

Bumper, Rubber

5410414

$3.17

23

SILENCER, EXHAUST

1260746-093

$319.99

24

PAD-RESONATOR,VIRAGE

5812094

Unavailable

24

PAD-RESONATOR,VIRAGE

5812094

Unavailable

25

BOLT(10)

7515127

Unavailable

26

WASHER(10)

7555836

$3.99

27

SEAL,EXH.FITTING

5810529

$20.48

28

FITTING,EXHAUST,2 5/8 ID

5132446

Unavailable

29

CLAMP, HOSE(10)

7080445

$9.99

29

CLAMP, HOSE(10)

7080445

$9.99

30

HOSE,EXHAUST,3.00X2.25L

5411951

$81.75

30

HOSE,EXHAUST,3.00X2.25L

5411951

$81.75

31

CLAMP,HOSE,3.75,SS

7080907

$11.11

31

CLAMP,HOSE,3.75,SS

7080907

$11.11

31

CLAMP,HOSE,3.75,SS

7080907

$11.11

31

CLAMP,HOSE,3.75,SS

7080907

$11.11

31

CLAMP,HOSE,3.75,SS

7080907

$11.11

31

CLAMP,HOSE,3.75,SS

7080907

$11.11

32

RESONATOR-EXHAUST,MS,3 CYL,#3

5433629

Unavailable

33

HOSE-CROSSOVER,VIRAGE,DUAL DR

5434031

Unavailable

34

RESONATOR,EXHAUST,3CYL,#1

5433812

Unavailable

35

PAD,RESONATOR BRKT

5830197

Unavailable

36

RESONATOR,EXHAUST,3CYL,#2

5433813

Unavailable

37

HOSE-CROSSOVER,VIRAGE,DUAL DUR

5434032

Unavailable

38

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

38

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

39

WASHER, FLAT, S.S.(10)

7555839

Unavailable

39

WASHER, FLAT, S.S.(10)

7555839

Unavailable

39

WASHER, FLAT, S.S.(10)

7555839

Unavailable

39

WASHER, FLAT, S.S.(10)

7555839

Unavailable

40

SCR-1/4-20X1.0,SS,CARRIAGE(10)

7517870

$1.73

40

SCR-1/4-20X1.0,SS,CARRIAGE(10)

7517870

$1.73

41

BRKT-RESONATOR,VIRAGE 3 CYL

5245130

Unavailable

41

BRKT-RESONATOR,VIRAGE 3 CYL

5245130

Unavailable

42

WASHER,RUBBER(10)

7555870

$0.40

42

WASHER,RUBBER(10)

7555870

$0.40

43

SCR,M6X1.0X25 SS(10)

7517798

$4.35

43

SCR,M6X1.0X25 SS(10)

7517798

$4.35

44

NUT,NYLOK,S.S.(10)

7542133

Unavailable

44

NUT,NYLOK,S.S.(10)

7542133

Unavailable
