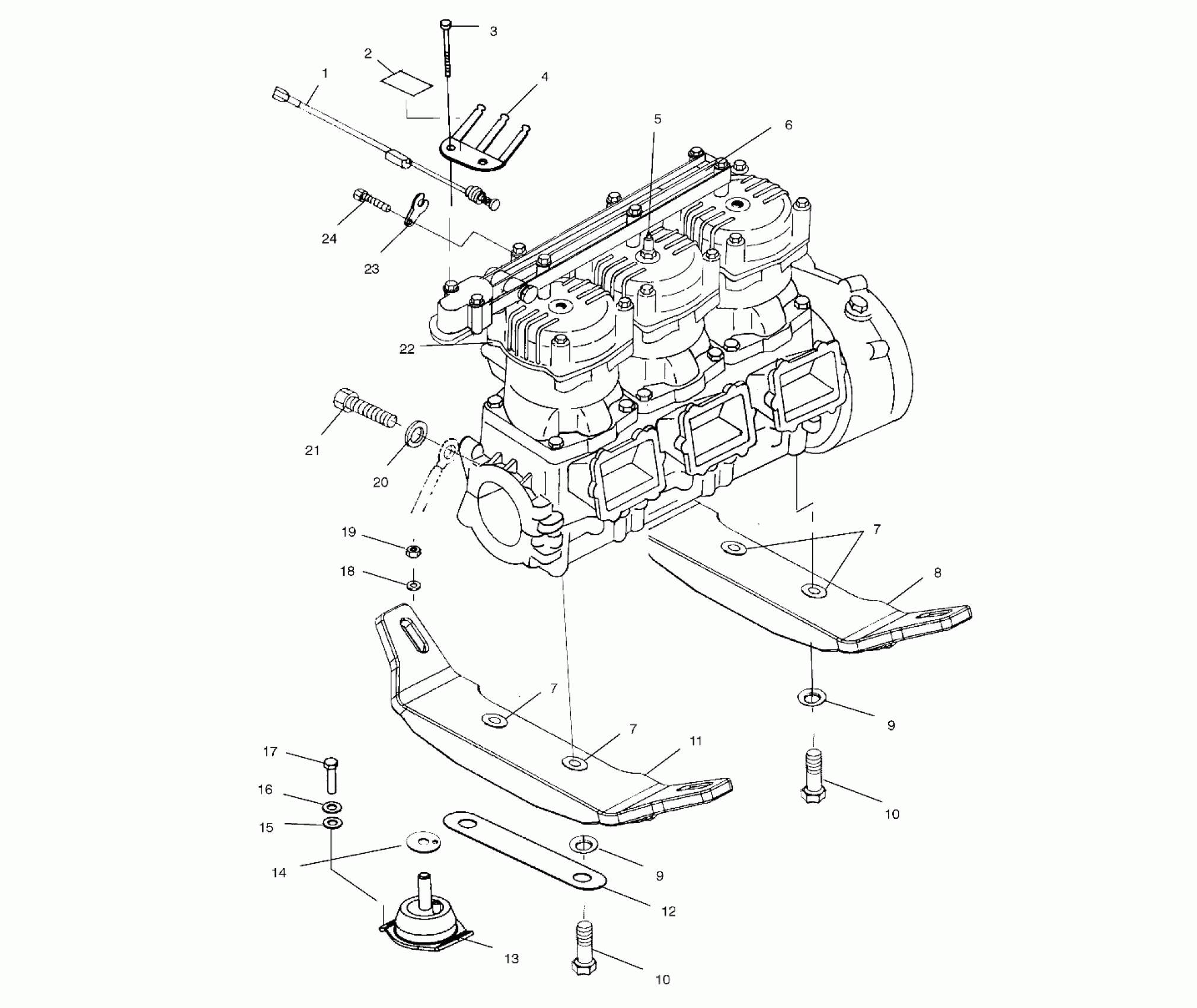

Polaris VIRAGE TX - W015199D ENGINE MOUNTING - W015199D (4964836483C001) Diagram

#

Description
Price

1

SWITCH,TEMP,W/CONNECTOR

2410187

Unavailable

2

DECAL,SPARKPLUG REC.

7077026

$2.95

3

SCREW,SHOULDER,S.S.(10)

7515149

Unavailable

4

GROUND,SPARKPLUG,3CYL

5242476

Unavailable

5

Spark Plug, NGK BPR9ES (See Cylinder and Manifold Pg. C6, Ref. 5)

-------

Unavailable

6

Decal - Warning (See Cylinder and Manifold Pg. C6, Ref. 2)

-------

Unavailable

7

WASHER-FLAT,.44X1.25X.10,SS

7556184

Unavailable

7

WASHER-FLAT,.44X1.25X.10,SS

7556184

Unavailable

7

WASHER-FLAT,.44X1.25X.10,SS

7556184

Unavailable

8

PLATE-FRONT MOUNT W/WASHER

5631166

Unavailable

9

WASHER-FLAT,.44X.94X.06,18-8SS

7556170

Unavailable

9

WASHER-FLAT,.44X.94X.06,18-8SS

7556170

Unavailable

10

SCREW, SS.

7517330

Unavailable

10

SCREW, SS.

7517330

Unavailable

11

PLATE-REAR MOUNT W/WASHER

5631167

Unavailable

12

LOCK-MOUNT PLATE

5245460

Unavailable

13

MOUNT-ENGINE,LORD,BENT,50-520

3021254

Unavailable

14

SHIM,ENG.MT.(PWC)

5211727

Unavailable

15

WASHER(10)

7555866

Unavailable

16

WASHER, LOCK, S.S.(10)

7552610

Unavailable

17

SCREW(10)

7517627

Unavailable

18

WASHER, FLAT, S.S.(10)

7555848

Unavailable

19

NUT, NYLOK, S.S.(10) Substituted by 7547001

7542725

Unavailable

20

WASHER,LOCK,SS.

7556055

Unavailable

21

BOLT,SS.

7517497

$3.97

22

SHORTBLOCK,W120-TCSP-02A The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly.

2201704

Unavailable

23

CLIP,RETAIN,TEMP.SW.

5240876

Unavailable

24

BOLT,(1)

7516603

$10.39
