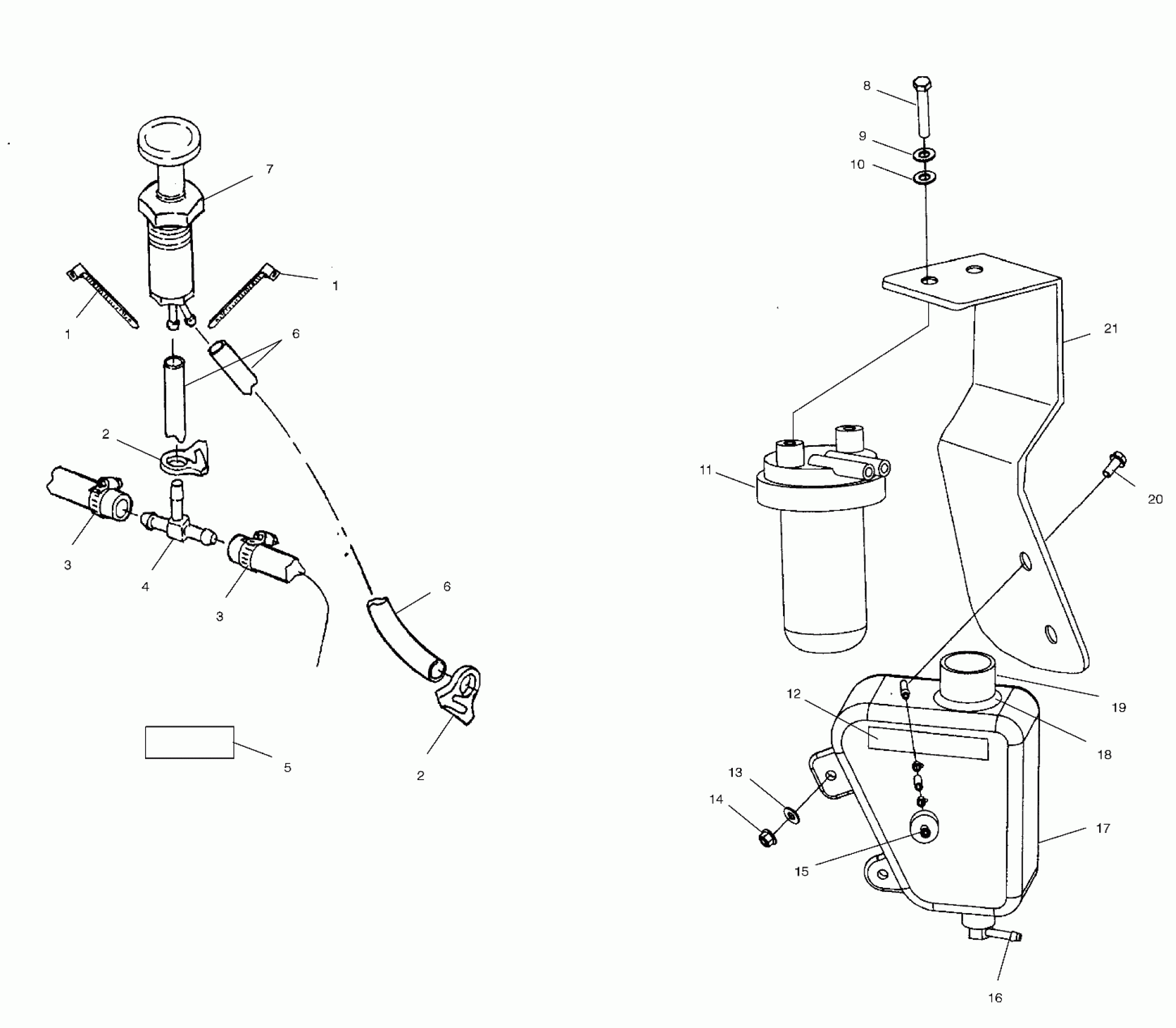

Polaris VIRAGE TX - W015199D ENGINE FOGGING SYSTEM - W005199I (4964836483C002) Diagram

#

Description
Price

-

ENG FOG,KIT,GENESIS

2872635

Unavailable

1

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

1

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

2

CLAMP, HOSE(10)

7080484

$1.24

2

CLAMP, HOSE(10)

7080484

$1.24

3

CLAMP, HOSE, S.S.(10)

7080476

$6.35

3

CLAMP, HOSE, S.S.(10)

7080476

$6.35

4

FITTING,T

7052139

$9.52

5

DECAL,PRIMER,ENG.FOGGER,(SLT)

7075738

$2.94

6

OILLINE,(OD=5/16,ID=1/8) Substituted by 8450062-2

8450062

Unavailable

6

OILLINE,(OD=5/16,ID=1/8) Substituted by 8450062-2

8450062

Unavailable

7

PRIMER,ENG.,FOG

3160114

Unavailable

8

Screw (See Fuel/Water Separator Pg. C3, Ref. 1)

----

Unavailable

9

Washer, Lock (See Fuel/Water Separator Pg. C3, Ref. 4)

----

Unavailable

10

Washer, Dish (See Fuel/Water Separator Pg. C3, Ref. 2)

----

Unavailable

11

Separator, Fuel/Water (See Fuel/Water Separator Pg. C3, Ref. 5)

----

Unavailable

12

DECAL,"FOG.OIL ONLY"

7075732

Unavailable

13

WASHER, FLAT, S.S.(10)

7555837

$1.59

14

NUT, HEX, S.S.(10)

7541931

$5.99

15

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

16

FITTING, 90 DEG.

7052138

Unavailable

17

TANK,OIL,FOG KIT

5432362

$35.24

18

GASKET-OVERFLOW CAP

5810279

$2.41

19

CAP,OIL BOTTLE

5432359

$3.33

20

BOLT, SS.(10)

7512045

$4.99

21

BRACKET,BOTTLE,FOG

5244295

$42.14
