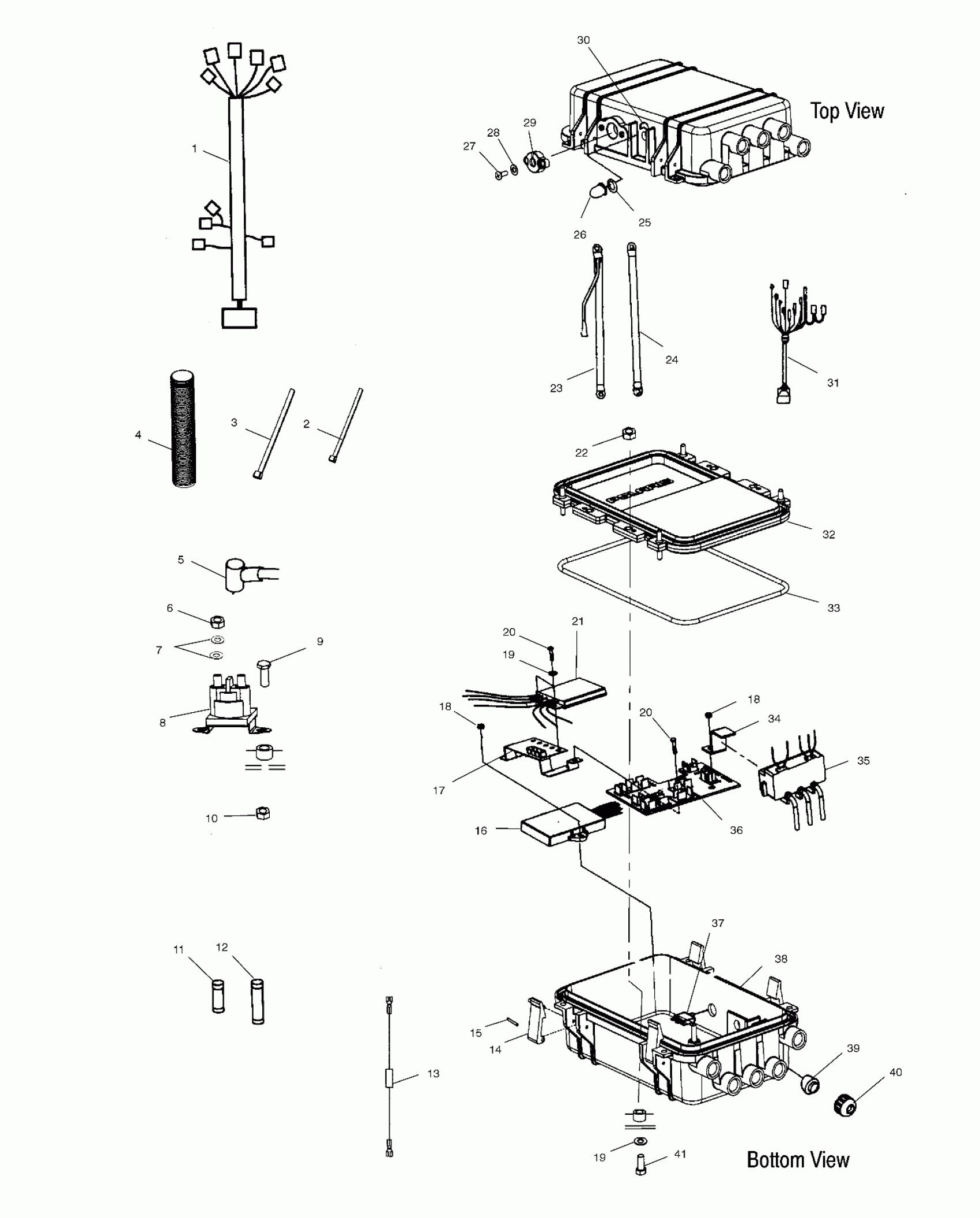

Polaris VIRAGE TX - W015199D ELECTRICAL BOX - W015199D (4964836483B013) Diagram

#

Description
Price

1

HARNESS,MIAN VIRAGE W/O SPLICE

2460955

$394.99

2

STRAP, PANDUIT,4 IN.(10)

7080483

Unavailable

3

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

4

CONDUIT,FLEX,1.250ID Substituted by 5521287-63

5521287-53

Unavailable

5

INSULATOR-CABLE

5410346

$7.73

6

NUT, 6 MM.,S.S.(10)

7546705

$4.76

7

WASHER, LOCK(10)

7552613

Unavailable

8

SOLENOID-STARTER,EXTERNAL

4010401

Unavailable

9

Screw

7517671

$1.97

10

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

11

FUSE,3AMP,AGW [No Longer Available]

4060161

Unavailable

12

FUSE,(10)

4060111

Unavailable

13

HARNESS-JUMPER,PWC

2460928

$13.89

14

LATCH,ELEC.BOX Substituted by 2620120

5432503

$102.38

15

PIN,LATCH,ELEC.BOX

5333544

$10.46

16

CONTROLLER-IGN,3-CYL Substituted by 4010543

4010379

Unavailable

17

ASM-STRAP,GROUNDING W/FUSES

2410250

Unavailable

18

NUT,NYLOK,SS

7547061

$0.56

18

NUT,NYLOK,SS

7547061

$0.56

19

WASHER, FLAT, S.S.(10)

7555837

$1.59

19

WASHER, FLAT, S.S.(10)

7555837

$1.59

20

BOLT, S.S.(10)

7512042

Unavailable

20

BOLT, S.S.(10)

7512042

Unavailable

21

REGULATOR-S/S 1 BUTTON 505

4010648

Unavailable

22

NUT,NYLOK,SS.

7547059

$4.76

23

CABLE-BATTERY/SOLENOID

4010238

Unavailable

24

CABLE-SOLENOID/STARTER

4010237

Unavailable

25

O-Ring

5411491

$1.03

26

BOOT,THREADED,RED

7080461

$13.99

27

BOLT,SS,(10)

7515113

Unavailable

28

WASHER(10)

7555836

$3.99

29

PLATE,STATOR,1 HOLE

5432574

$6.59

30

DECAL-"RESET ELEC SYSTEM"

7077691

Unavailable

31

HARNESS-9 WIRE STATOR,3CYL Substituted by 2460875

2460717

$81.75

32

COVER-ELECTRICAL BOX Substituted by 2631998

5433119

Unavailable

33

SEAL, E-BOX Substituted by 2620120

5432569

Unavailable

34

BRKT,COIL,3CYL

5244369

Unavailable

35

Coil, Ignition (See Magneto Pg. C11, Ref. 13)

----

Unavailable

36

BOARD,ASM,TERMINAL

2410201

Unavailable

37

CKT.BREAKER,15A.(WATER.)

2434011

$20.48

38

ELECTRICAL BOX,IGNITION,ASM. (Incl. 14,15,32,33)

2632137

Unavailable

39

Grommet

5411235

Unavailable

40

CAP,GROMMET,ELEC.BOX

5432502

$2.62

41

SCREWM5X0.8X60(10)

7517825

Unavailable
