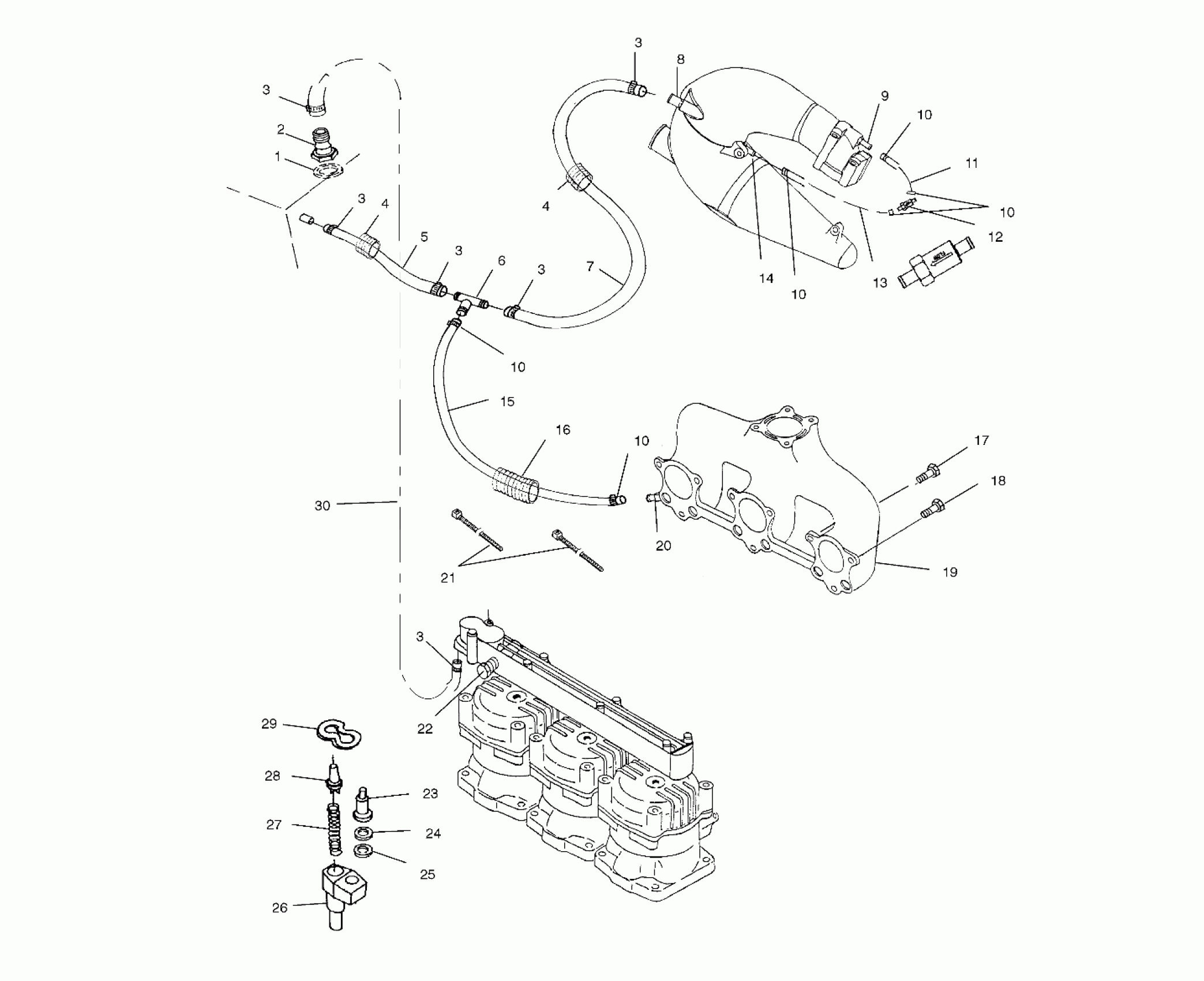

Polaris VIRAGE TX - W015199D COOLING SYSTEM - W015199D (4964836483B009) Diagram

#

Description
Price

1

Gasket

5811317

$0.87

2

FITTING-THRU HULL,WHITE

5431444-133

Unavailable

3

CLAMP,HOSE,SS(10)

7080475

Unavailable

3

CLAMP,HOSE,SS(10)

7080475

Unavailable

3

CLAMP,HOSE,SS(10)

7080475

Unavailable

3

CLAMP,HOSE,SS(10)

7080475

Unavailable

3

CLAMP,HOSE,SS(10)

7080475

Unavailable

3

CLAMP,HOSE,SS(10)

7080475

Unavailable

4

CONDUIT,FLEX,1.250ID

5521287-45

$7.38

4

CONDUIT,FLEX,1.250ID

5521287-45

$7.38

5

HOSE,WATER INLET

5411335

Unavailable

6

FITTING,TEE

5431784

Unavailable

7

HOSE,WATER-IN EXH PIPE 1050

5411793

Unavailable

8

Fitting, Inlet, Water (See Exhaust System Pg. B6, Ref. 10)

----

Unavailable

9

Fitting, Exhaust Screen (See Exhaust System Pg. B6, Ref. 6)

----

Unavailable

10

CLAMP, HOSE, S.S.(10)

7080476

$6.35

10

CLAMP, HOSE, S.S.(10)

7080476

$6.35

10

CLAMP, HOSE, S.S.(10)

7080476

$6.35

10

CLAMP, HOSE, S.S.(10)

7080476

$6.35

10

CLAMP, HOSE, S.S.(10)

7080476

$6.35

11

HOSE-4.0" .31ID

5412043

Unavailable

12

VALVE-CHECK,3/8X3/8 3.5PSI

7052303

Unavailable

13

HOSE-16.5"W/90DEG.31ID

5412042

$24.60

14

FITTING-INJECTOR,EXHAUST .070

7052290

Unavailable

15

HOSE,STINGER,FORMED

5410897

$23.02

16

CONDUIT,FLEX(.75"ID) Substituted by 5521398-96

5521398-42

$5.71

17

Bolt

7516727

Unavailable

18

BOLT, S.S,(10)

7516725

Unavailable

19

MANIFOLD ASM,EXH,(TRIPLE)

1260809

Unavailable

20

FITTING,DRAIN,EXH.MANIFOLD

5020746

Unavailable

21

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

22

PLUG,PIPE(10)

7051527

$6.59

23

THERMOSTAT, (143 F.)

7051008

Unavailable

24

GASKET-THERMOSTAT,60D

5412014

Unavailable

25

WASHER-7/8X11/8X1/8,AL,ANODIZE

7556174

Unavailable

26

COVER-THERMOSTAT,PWC,HF

5631136

Unavailable

27

Spring, Compression

7041310

$1.83

28

VALVE-POP OFF,PWC,HF

5433823

$4.92

29

SEAL,O-RING/THERMO/FITTING

5410860

Unavailable

30

HOSE,WATER OUT,3/4 ID

5411310

Unavailable
