- VIRAGE TX - W015199D
CARBURETOR - W015199D (4964836483C009)

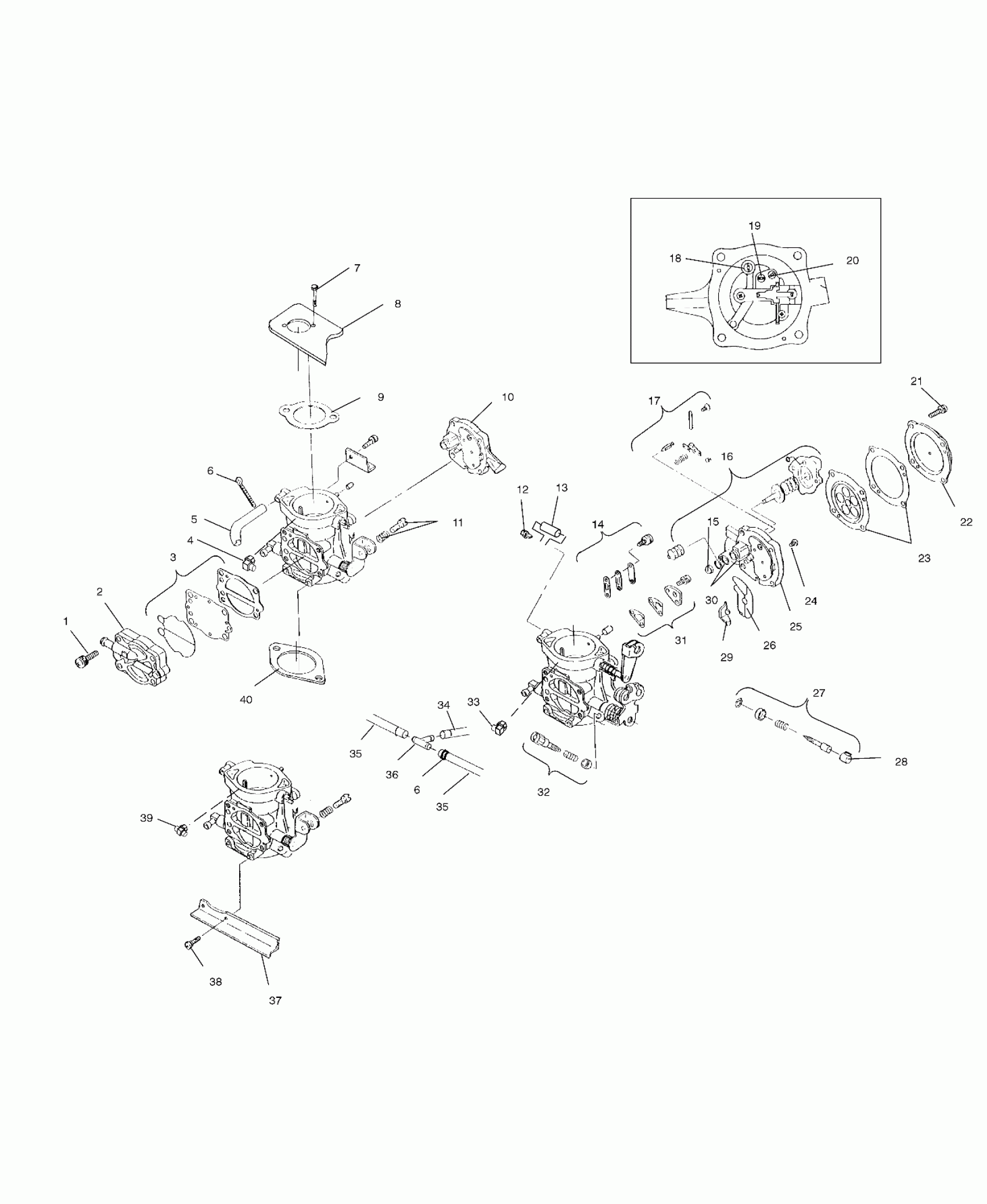

Polaris VIRAGE TX - W015199D CARBURETOR - W015199D (4964836483C009) Diagram
#
-
CARB,3CYL PWC,KEIHIN SL
1253323
Unavailable
-
KIT,CARB.REBUILD,PWC (Incl. 9,17,23,40)
2200910
Unavailable
1
SCREW, FUELPUMP
3050136
Unavailable
2
KIT,FUELPUMP BODY(KEIHIN)
2200687
Unavailable
3
KIT,GASKET(FUELPUMP)
2200686
Unavailable
4
NOZZLE,PTO,KEIHIN
3050254
Unavailable
5
Hose, Fuel
3050143
Unavailable
6
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
6
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
7
SCR-M6X1.00X145-HX/FL-SS
7516816
$23.99
8
BASE,SILENCER,INTAKE,TRIPLE
5630546
Unavailable
9
GASKET,CARB.,UPPER
5830062
Unavailable
10
BLOCK-JET,KEIHIN Substituted by 3050205
3050258
Unavailable
11
KIT,SYNCH.SCREW
2200734
Unavailable
12
JOINT,CONNECTING
3050156
Unavailable
13
TUBE,RUBBER
3050157
Unavailable
14
KIT,CHECKVALVE,MID-RANGE,KHN (1 Per Carb)
2200685
Unavailable
15
SCREEN,FUELSTRAINER
3050144
Unavailable
16
PUMP,ACCEL.KIT (1 Per Carb)
2201309
Unavailable
17
KIT,NDLE VLVE,97DOM,NOT SL 1050 (1 Per Carb)
2200733
Unavailable
18
JET-MAIN,140 KEIHIN (Per Carb) Mag
3050186
Unavailable
18
JET-MAIN,142 KEIHIN (Per Carb) Center
3050187
Unavailable
18
JET-MAIN,135 KEIHIN (Per Carb) PTO
3050184
Unavailable
19
JET-PILOT,65 KEIHIN (1 Per Carb)
3050128
Unavailable
20
JET-PILOT, 40 KEIHIN (1 Per Carb)
3050118
Unavailable
21
SCREW,JET BLOCK COVER
3050135
Unavailable
22
COVER,JET BLOCK
3050139
Unavailable
23
KIT,DIAPHRAGM-JET BLOCK (1 Per Carb)
2200730
Unavailable
24
SCREW, JET BLOCK (1 Per Carb)
3050137
Unavailable
25
BLOCK-JET,KEIHIN Substituted by 3050204
3050259
Unavailable
26
O-Ring, Jet Block
3050147
Unavailable
27
KIT,IDLESCREW,(KEIHIN) (1 Per Carb)
2200689
Unavailable
28
Cap, Limiter
3050140
Unavailable
29
Collar
3050138
Unavailable
30
O-RING,(VALVE SEAT)
3050148
Unavailable
31
KIT,CHECKVALVE,MAIN(KEIHIN) (1 Per Carb)
2200688
Unavailable
32
KIT,IDLESTOP SCREW
2200731
Unavailable
33
NOZZLE,MAG,KEIHIN
3050252
Unavailable
34
TUBE,RUBBER Substituted by 3050142
3050261
Unavailable
35
HOSE,FUEL,(ACCEL.PUMP)
3050142
Unavailable
35
HOSE,FUEL,(ACCEL.PUMP)
3050142
Unavailable
36
FITTING, T
3050141
$9.59
37
PLATE,CON,KEIHIN
3050164
Unavailable
38
SCREW,CONNECT.PLATE
3050159
Unavailable
39
NOZZLE,CTR,KEIHIN
3050253
Unavailable
40
GASKET,CARB.
5830043
Unavailable
