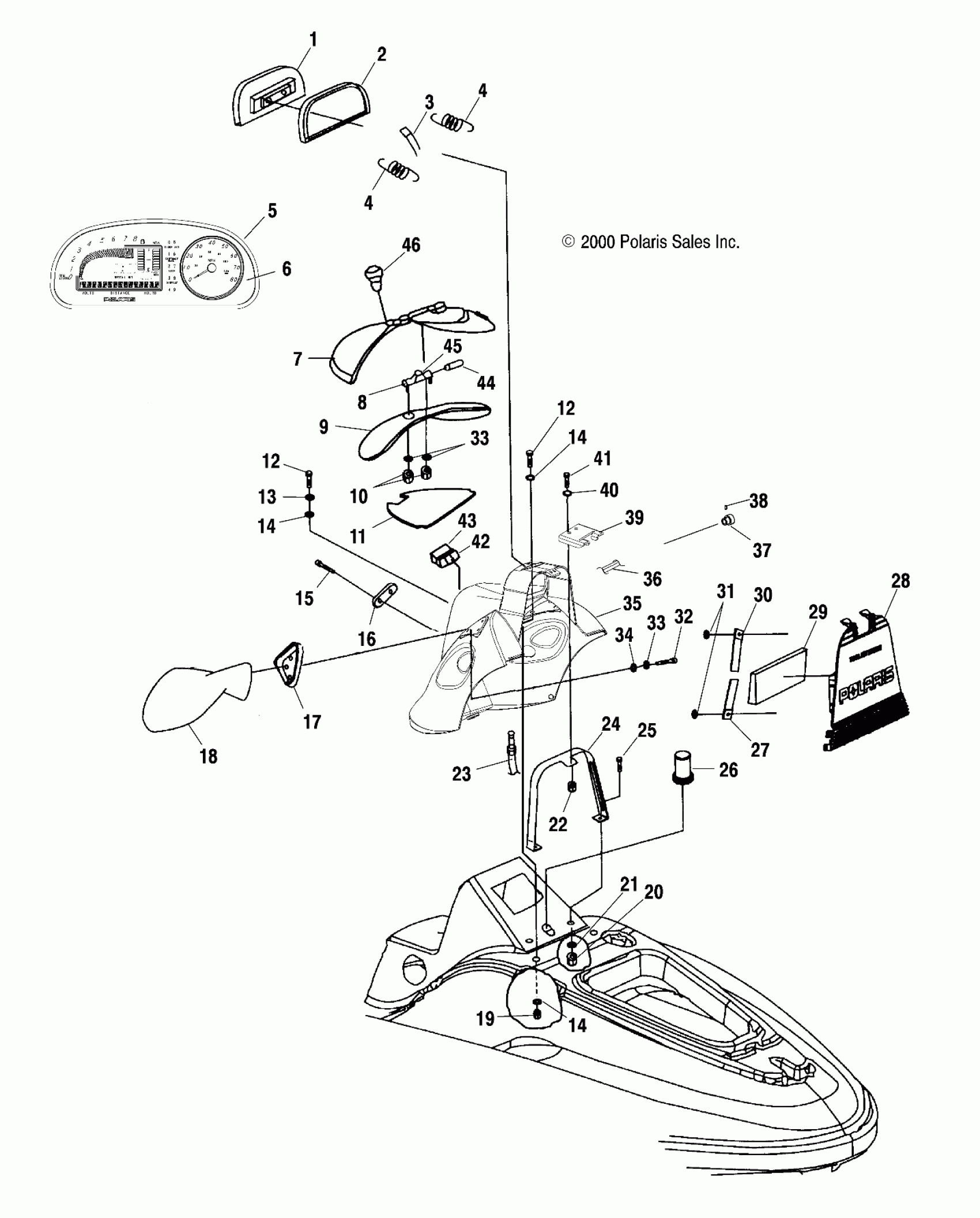

Polaris VIRAGE TX - W005199D SHROUD - W005199D (4955825582A005) Diagram

#

Description
Price

1

GAUGE-MFI,ANALOG/DIGITAL,BASIC

3280339

Unavailable

2

GASKET-MFI

5411738

$5.16

3

PITOT LINE,90DEG FORMED,190CM Substituted by 8450070-235

8450070-190

$24.25

4

SPRING,MOUNTING,MFI

7041931

$1.83

4

SPRING,MOUNTING,MFI

7041931

$1.83

5

MFI,BUTTON REPLACEMENT,KIT

2201593

$25.30

6

BEZEL-MFI,OVERLAY

3280342

$23.81

7

LID,CONS,HAVASU RED MET Substituted by 2201996

5433709-310

Unavailable

8

SPRING-TORSION,CONSOLE,SS Substituted by 7042007

7041754

Unavailable

9

SEAL,LID,CONSOLE

5521478

$9.05

10

NUT, 6 MM.,S.S.(10)

7546705

$4.76

11

PAD,CONSOLE

5811783

Unavailable

12

SCREW(10)

7517668

$2.06

12

SCREW(10)

7517668

$2.06

13

WASHER,LOCK,SS.

7556055

Unavailable

14

WASHER, FLAT, S.S.(10)

7555831

Unavailable

14

WASHER, FLAT, S.S.(10)

7555831

Unavailable

14

WASHER, FLAT, S.S.(10)

7555831

Unavailable

15

SCREW,SS.

7516609

Unavailable

16

PLATE,HOOK,CONSOLE

5211865

Unavailable

17

GASKET-MIRROR,LH

5411557

$4.92

17

GASKET-MIRROR,RH

5411558

$4.92

18

MIRROR,LH,BLACK,ASM.

2631972-070

$119.05

18

MIRROR,RH,BLACK,ASM.

2631973-070

$106.35

19

NUT,HEX,(10)

7546804

$1.19

20

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

21

WASHER, FLAT, S.S.(10)

7555839

Unavailable

22

NUT, HEX, S.S.(10)

7541931

$5.99

23

CABLE,CHOKE,SINGLE CARB Substituted by 7081020

7080926

Unavailable

24

BRKT,SUPPORT,SHROUD

5244673

$50.05

25

BOLT(10)

7516717

$3.33

26

GROMMET-DECK,WIRE HARNESS

5411664

Unavailable

27

STRAP-TOOL KIT,LOWER

2690151

Unavailable

28

COVER-WIRE,SHROUD,BLK

5433210-070

$10.90

29

Kit, Tool (See Tool Kit Pg. C4)

----

Unavailable

30

STRAP-TOOL KIT,UPPER

2690150

Unavailable

31

RING-RETAINING,.25 STUD

7710517

$1.59

32

SCREW, S.S.(10)

7516805

$0.71

33

WASHER, LOCK(10)

7552613

Unavailable

33

WASHER, LOCK(10)

7552613

Unavailable

34

WASHER-6.4MMX18X1.6,SS

7556094

$4.76

35

SHRD,STR W/CH,R,HAV RED MT Substituted by 2202007

5433589-310

Unavailable

36

BUMPER,DOOR/SHROUD

5812076

$10.81

37

KNOB,CHOKE

2080004

$9.05

38

Screw

2080005

$0.69

39

PLATE,LATCH,RECEIVER

5244670

Unavailable

40

WASHER, FLAT, S.S.(10)

7555837

$1.59

41

SCR,(10)#10-32X3/4

7517818

Unavailable

42

GASKET,HOOK,CONSOLE

5811552

$1.43

43

HOOK,CONSOLE,LATCH 1/4 TURN

5433266

Unavailable

44

PIN-HINGE,CONSOLE

5333698

Unavailable

45

HINGE-CONSOLE,3/16 PIN

5433384

Unavailable

46

LATCH,ASM,CONSOLE1/4 TURN

2632234

$36.83
