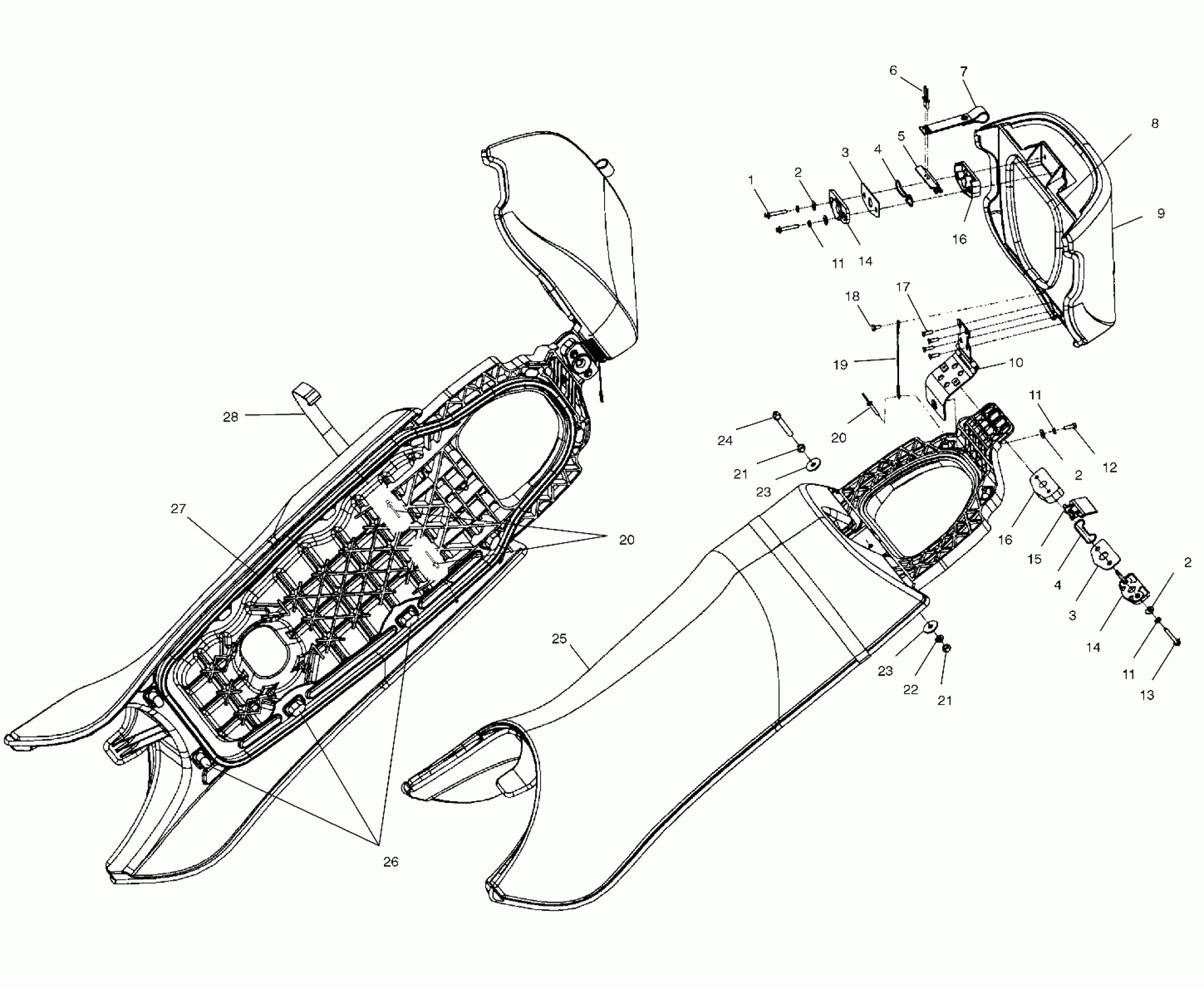

Polaris VIRAGE TX - W005199D SEAT - W005199D (4955825582A013) Diagram

#

Description
Price

1

BOLT(10)

7516806

Unavailable

2

WASHER, FLAT, S.S.(10)

7555839

Unavailable

2

WASHER, FLAT, S.S.(10)

7555839

Unavailable

2

WASHER, FLAT, S.S.(10)

7555839

Unavailable

3

PLATE,SEATBASE LATCH

5211314

$4.92

3

PLATE,SEATBASE LATCH

5211314

$4.92

4

SPRING,SEATBASE LATCH

7042036

Unavailable

4

SPRING,SEATBASE LATCH

7042036

Unavailable

5

HANDLE,SEAT LATCH,W/HOLES

5433779

$10.63

6

RIVET

7621478

Unavailable

7

STRAP,SEAT LATCH,VIRAGE

5812025

Unavailable

8

SEAL,SEAT,REAR,MS

5411807

Unavailable

9

SEAT,REAR,MS,HAVASU RED

2682540-292

$257.99

9

COVER,SEAT,REAR,MS,HAVASU RED

2682542-292

Unavailable

10

HINGE,ASM,SEAT,VIRAGE Substituted by 1013431

1013202

$70.24

11

WASHER, LOCK, S.S.(10)

7555838

Unavailable

11

WASHER, LOCK, S.S.(10)

7555838

Unavailable

11

WASHER, LOCK, S.S.(10)

7555838

Unavailable

12

SCR,M6X1.0X20 Substituted by 7516805

7517805

$0.71

13

SCREW,M6X1.0X45

7517806

$1.56

14

PLATE,LATCH,BOT.SEAT BASE

5431357

$5.71

14

PLATE,LATCH,BOT.SEAT BASE

5431357

$5.71

15

HANDLE, SEAT

5431358

Unavailable

16

PLATE,TOP,SEATBASE LATCH

5431359

Unavailable

16

PLATE,TOP,SEATBASE LATCH

5431359

Unavailable

17

SCREW (10)

7517669

Unavailable

18

SCR-M6X1.0X12 PH/PAN HD-SS

7517717

$1.11

19

CABLE,LIMITER,HINGE,8.0

7080914

$23.02

20

RIVET-POP 3/16 (.523-.750)AL-B [No Longer Available]

7661044

Unavailable

20

RIVET-POP 3/16 (.523-.750)AL-B [No Longer Available]

7661044

Unavailable

21

NUT, HEX, S.S.,(10)

7542454

Unavailable

21

NUT, HEX, S.S.,(10)

7542454

Unavailable

22

WASHER, LOCK, S.S.(10)

7552607

$1.39

23

WASHER, FLAT(10)

7555846

$5.56

23

WASHER, FLAT(10)

7555846

$5.56

24

PLUNGER,LATCH

5020753

Unavailable

25

SEAT,MAIN,MS,HAVASU RED

2682541-292

$354.99

25

COVER,SEAT,MAIN,MS,HAVASU RED

2682543-292

$155.56

26

BUMPER-SEAT

5521490

Unavailable

27

SEAL,SEAT,MAIN,MS

5521536

$61.87

28

STRAP,ST.,VIRAGE,HAVASU RD

2682593-292

$65.87
