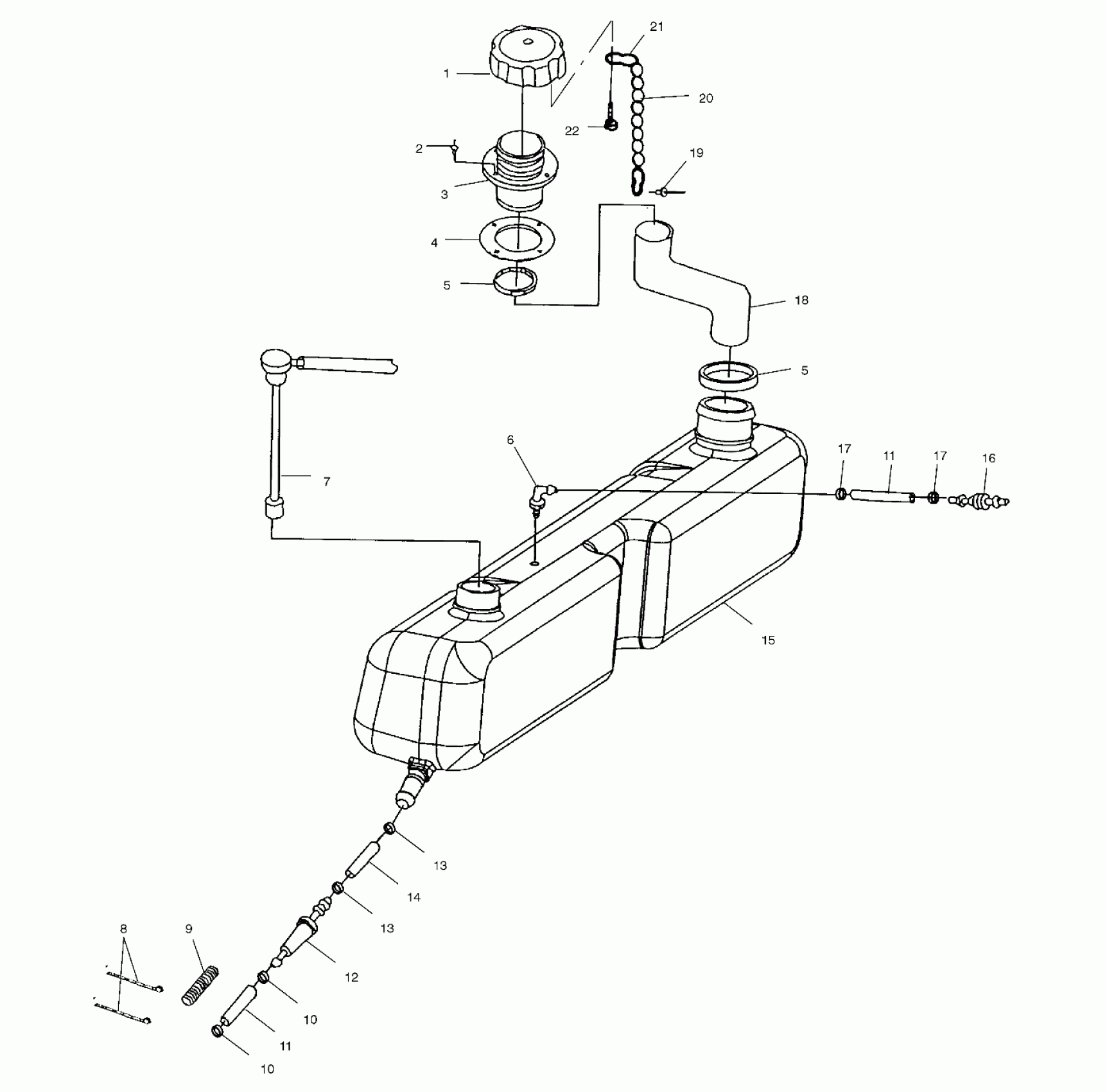

Polaris VIRAGE TX - W005199D OIL TANK - W005199D (4955825582A014) Diagram

#

Description
Price

1

CAP,OILTANK

5432843

$7.38

2

RIVET-POP (10)

7661038

$7.14

3

INLET-OIL

5433601

$5.71

4

GASKET,OIL INLET

5811554

$1.51

5

CLAMP, HOSE(10) Substituted by 7080870

7080481

$2.54

5

CLAMP, HOSE(10) Substituted by 7080870

7080481

$2.54

6

ELBOW,90 DEG.

7052130

$2.46

7

SENDER ASM,OIL LEVEL

2410131

Unavailable

8

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

9

CONDUIT,CONVOL(30 CM)

4010051-30

Unavailable

10

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

10

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

11

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

11

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

12

FILTER,OIL

2530015

Unavailable

13

CLAMP-HOSE,.875-SS

7080474

$8.54

13

CLAMP-HOSE,.875-SS

7080474

$8.54

14

FUEL LINE

8450059-150

Unavailable

15

TANK,OIL

5433083

Unavailable

16

VALVE,VACUUM CHECK

7052118

Unavailable

17

STRAP, PANDUIT,4 IN.(10)

7080483

Unavailable

17

STRAP, PANDUIT,4 IN.(10)

7080483

Unavailable

18

HOSE,OIL FILL

5411756

$23.81

19

RIVET(50)

7621229

Unavailable

20

CHAIN,BEAD,FUELCAP RETAIN.

7080710

Unavailable

21

Coupling

7080442

Unavailable

22

SCREW, SS.

7517241

$1.75
