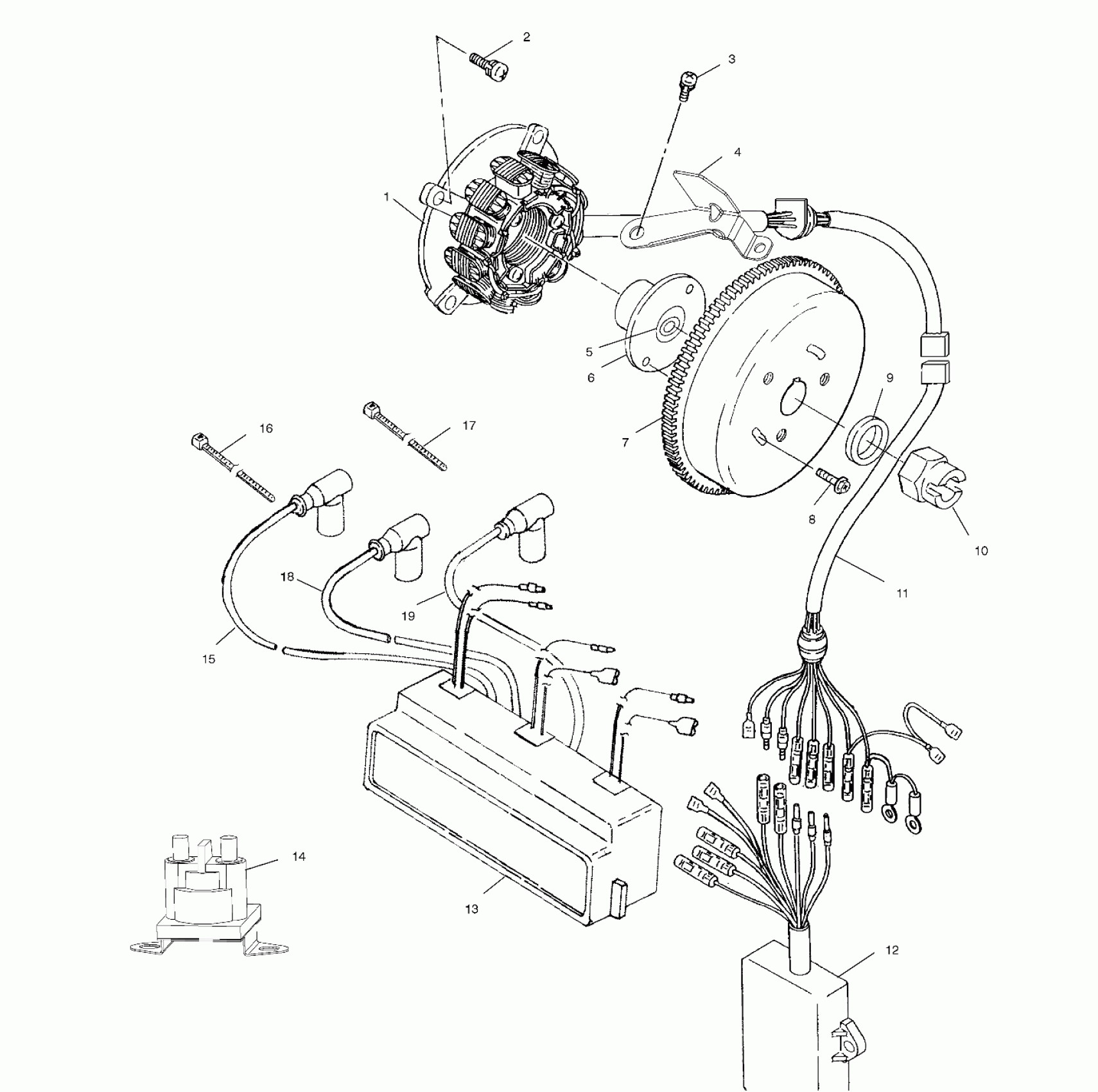

Polaris VIRAGE TX - W005199D MAGNETO - W005199I (4955825582C011) Diagram

#

Description
Price

1

STATOR ASM.3CYL PWC GEN-3 PVL

4010170

Unavailable

2

SCR-M6X1.0X30,HX/SOC/CP-ZPC

7517714

$10.32

3

SCREW(10)

7516822

$2.38

4

CLAMP-STATOR WIRES

5243231

Unavailable

5

O-Ring

5411320

$1.35

6

Holder, Magnet

5432282

$20.48

7

FLYWHEEL ASM.PWC GEN-3 PVL (Incl. 5,6,8)

4010189

$289.68

8

KIT,TIMING SCREWS,PVL(PWC)

2201228

$13.49

9

WASHER(10)

7555907

$5.56

10

Nut

7546909

Unavailable

11

HARNESS-9 WIRE STATOR 3CYL,PVL

2460875

$81.75

12

CNTRLLR,3CYL PWC,PVL,'00 Substituted by 4010379

4010317

Unavailable

13

COIL,IGN,PVL,3RD GEN,3CYL

4010342

Unavailable

14

SOLENOID-STARTER EXTERNAL MUNT Substituted by 4010401

4010228

Unavailable

15

SPARK PLUG WIRE,PVL 71CM

4010173-71

Unavailable

16

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

17

STRAP, PANDUIT,4 IN.(10)

7080483

Unavailable

18

SPARK PLUG WIRE,PVL 56CM Substituted by 4010173-71

4010173-56

Unavailable

19

SPARK PLUG WIRE,PVL 42CM Substituted by 4010173-71

4010173-42

Unavailable
