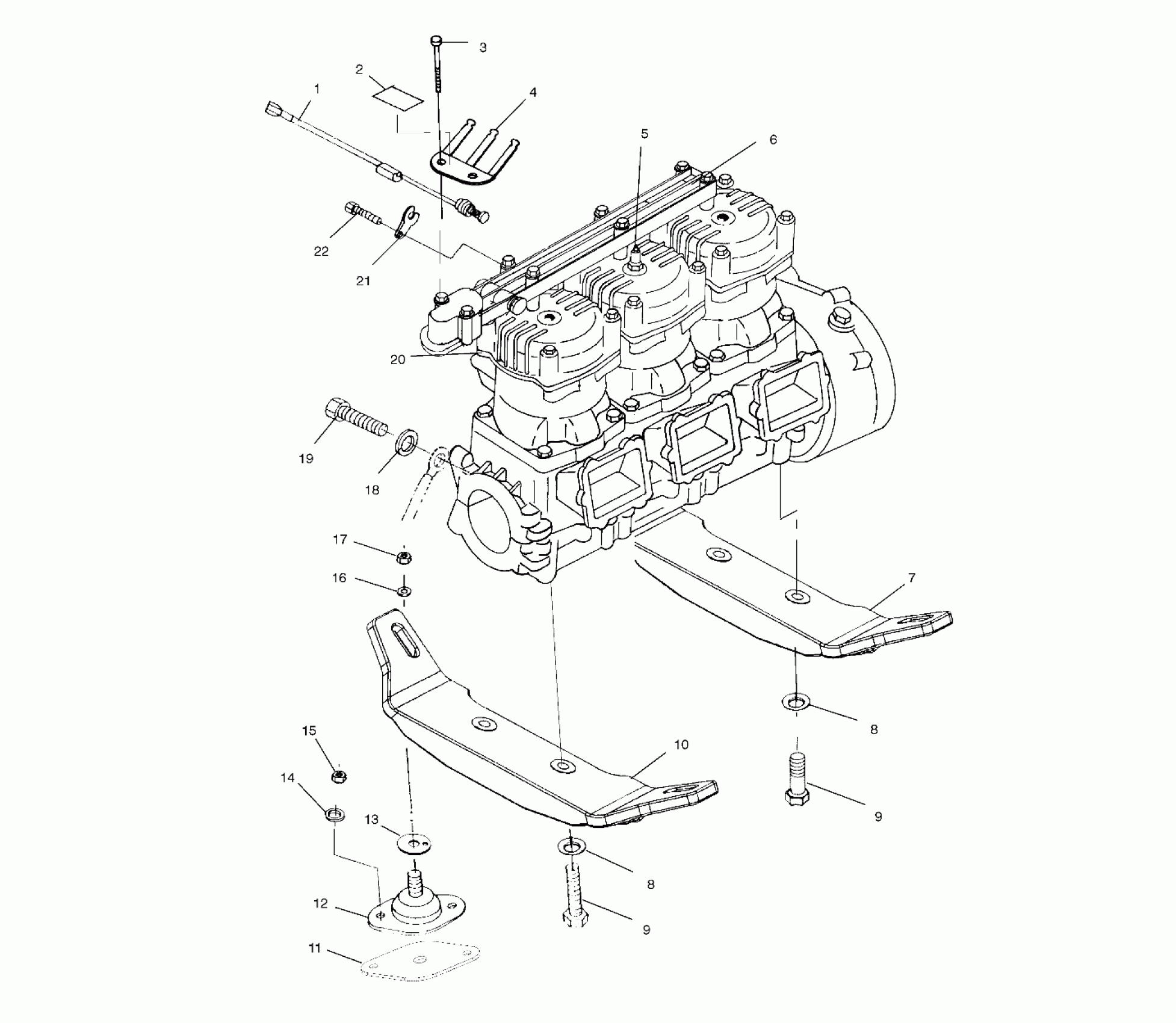

Polaris VIRAGE TX - W005199D ENGINE MOUNTING - W005199I (4955825582C003) Diagram

#

Description
Price

1

SWITCH,TEMP,W/CONNECTOR

2410187

Unavailable

2

DECAL,SPARKPLUG REC.

7077026

$2.95

3

SCREW,SHOULDER,S.S.(10)

7515149

Unavailable

4

GROUND,SPARKPLUG,3CYL

5242476

Unavailable

5

Spark Plug, NGK BPR8ES (See Footnote) (See Cylinder and Manifold Pg. C6, Ref. 5)

-------

Unavailable

6

Decal - Warning (See Footnote) (See Cylinder and Manifold Pg. C6, Ref. 2)

-------

Unavailable

7

PLATE,F.MOUNT Substituted by 5631128

5630585

Unavailable

8

WASHER,LOCK,S.S.

7552609

Unavailable

8

WASHER,LOCK,S.S.

7552609

Unavailable

9

SCREW, SS.

7517330

Unavailable

9

SCREW, SS.

7517330

Unavailable

10

PLATE,R.MOUNT Substituted by 5631129

5630584

Unavailable

11

PLATE,REPAIR,GEN.FRT MNT

5244508

Unavailable

12

MOUNT-ENGINE,PWC Substituted by 3021208

3021103

Unavailable

13

SHIM,ENG.MT.(PWC)

5211727

Unavailable

14

WASHER, LOCK, S.S.(10)

7552610

Unavailable

15

SCREW(10)

7517627

Unavailable

16

WASHER, FLAT, S.S.(10)

7555848

Unavailable

17

NUT, NYLOK, S.S.(10) Substituted by 7547001

7542725

Unavailable

18

WASHER,LOCK,SS.

7556055

Unavailable

19

BOLT,SS.

7517497

$3.97

20

SHORTBLOCK,W120-TCSP-02A (See Footnote) Note: The Short Block assembly contains a crankcase assembly, cylinder and cylinder head assembly, and a piston & crankshaft assembly.

2201704

Unavailable

21

CLIP,RETAIN,TEMP.SW.

5240876

Unavailable

22

BOLT,(1)

7516603

$10.39
