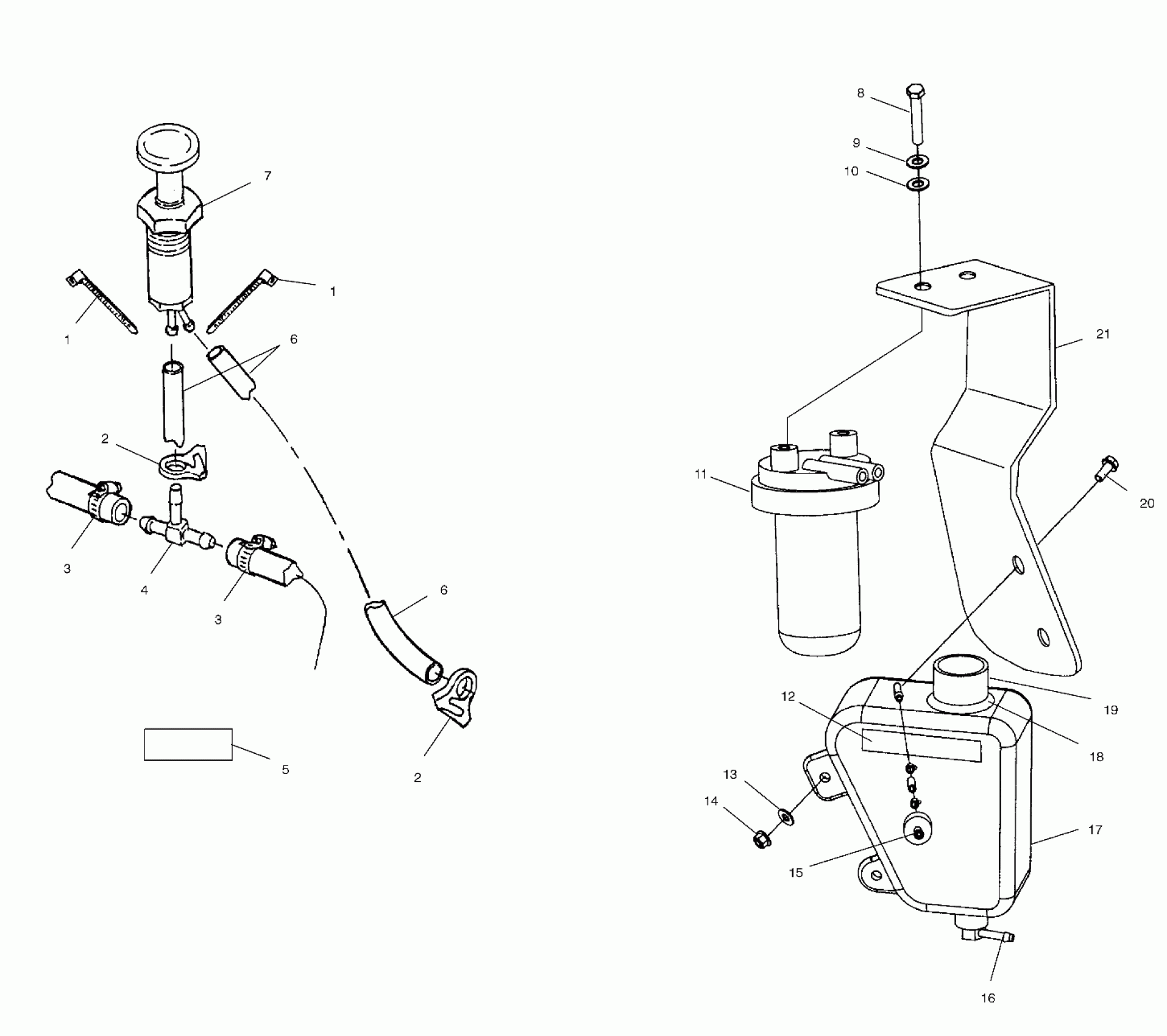

Polaris VIRAGE TX - W005199D ENGINE FOGGING SYSTEM - W005199I (4955825582C014) Diagram

#

Description
Price

-

ENG FOG,KIT,GENESIS

2872635

Unavailable

1

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

1

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

2

CLAMP, HOSE(10)

7080484

Unavailable

2

CLAMP, HOSE(10)

7080484

Unavailable

3

CLAMP, HOSE, S.S.(10)

7080476

$6.39

3

CLAMP, HOSE, S.S.(10)

7080476

$6.39

4

FITTING,T

7052139

Unavailable

5

DECAL,PRIMER,ENG.FOGGER,(SLT)

7075738

Unavailable

6

OILLINE,(OD=5/16,ID=1/8) Substituted by 8450062-2

8450062

Unavailable

6

OILLINE,(OD=5/16,ID=1/8) Substituted by 8450062-2

8450062

Unavailable

7

PRIMER,ENG.,FOG

3160114

Unavailable

8

Screw (See Footnote) (See Fuel/Water Separator Pg. C13, Ref. 1)

-------

Unavailable

9

Washer, Lock (See Footnote) (See Fuel/Water Separator Pg. C13, Ref. 2)

-------

Unavailable

10

Washer, Dish (See Footnote) (See Fuel/Water Separator Pg. C13, Ref. 3)

-------

Unavailable

11

Separator, Fuel/Water (See Footnote) (See Fuel/Water Separator Pg. C13, Ref. 5)

-------

Unavailable

12

DECAL,"FOG.OIL ONLY"

7075732

Unavailable

13

WASHER, FLAT, S.S.(10)

7555837

Unavailable

14

NUT, HEX, S.S.(10)

7541931

$4.79

15

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

16

FITTING, 90 DEG.

7052138

Unavailable

17

TANK,OIL,FOG KIT

5432362

Unavailable

18

GASKET-OVERFLOW CAP

5810279

$2.41

19

CAP,OIL BOTTLE

5432359

Unavailable

20

BOLT, SS.(10)

7512045

$4.99

21

BRACKET,BOTTLE,FOG

5244295

Unavailable
