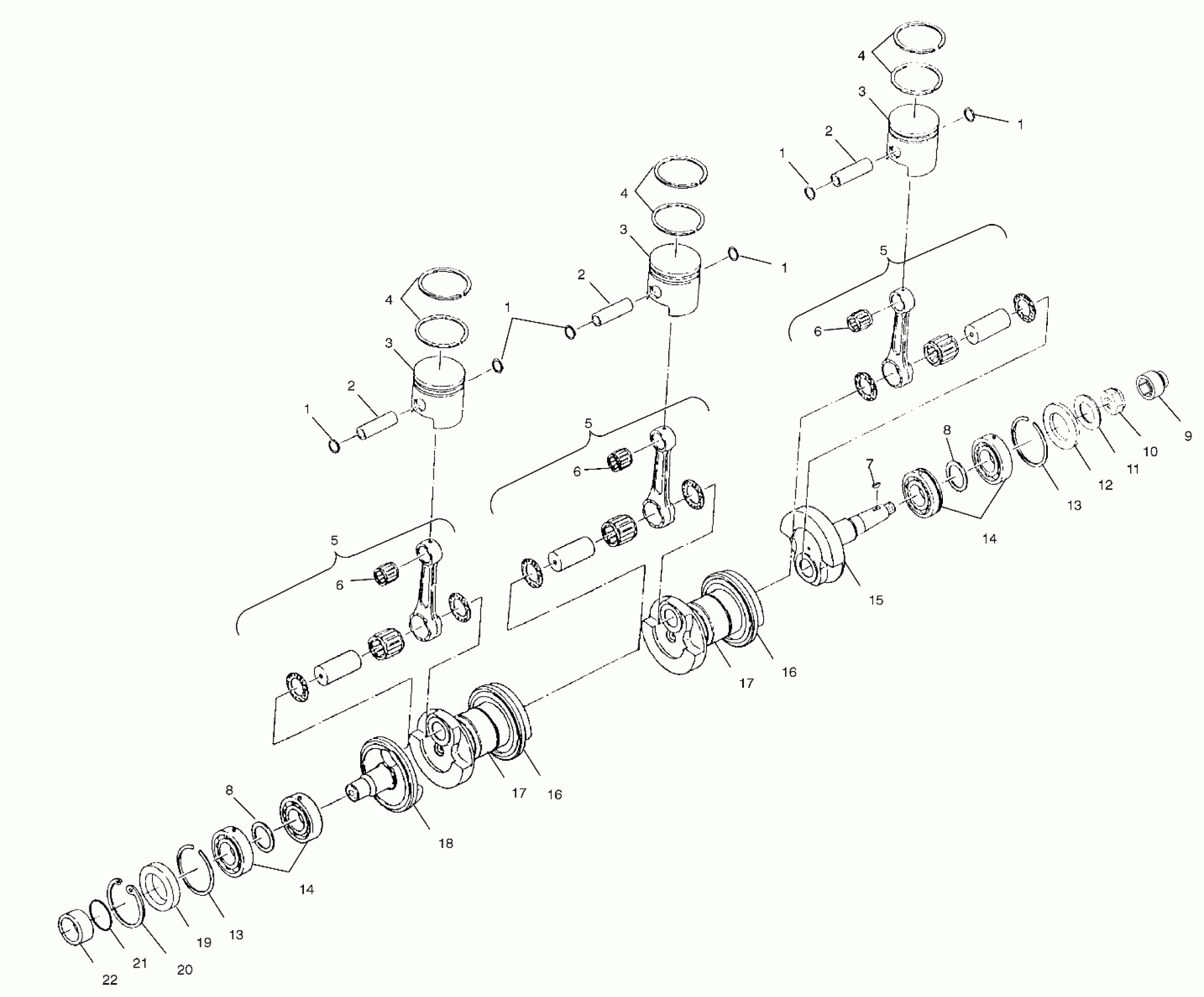

Polaris VIRAGE TX - W005199D CRANKSHAFT and PISTON - W005199I (4955825582C007) Diagram

#

Description
Price

-

CRANKSHAFT,ASM,1200 TRIPLE (Incl. 6,8,14-18)

2201444

Unavailable

1

CIRCLIP,PISTON,22MMX1.6

3021179

$6.04

1

CIRCLIP,PISTON,22MMX1.6

3021179

$6.04

1

CIRCLIP,PISTON,22MMX1.6

3021179

$6.04

1

CIRCLIP,PISTON,22MMX1.6

3021179

$6.04

1

CIRCLIP,PISTON,22MMX1.6

3021179

$6.04

2

PIN,PISTON,22MM NITRATED

3021164

$17.97

2

PIN,PISTON,22MM NITRATED

3021164

$17.97

2

PIN,PISTON,22MM NITRATED

3021164

$17.97

3

PST,84MM PWC STD NTRD PIN (Std.)(Incl.1,2,4)

2201706

$185.99

3

PSTN,84MM PWC.25 NTRD PIN (.25mm O/S) (Incl.1,2,4)

2201707

$140.16

3

PSTN,84MM PWC.50 NTRD PIN (.50mm O/S) (Incl. 1,2,4)

2201708

$226.99

3

PST,84MM PWC STD NTRD PIN (Std.)(Incl.1,2,4)

2201706

$185.99

3

PSTN,84MM PWC.25 NTRD PIN (.25mm O/S) (Incl.1,2,4)

2201707

$140.16

3

PSTN,84MM PWC.50 NTRD PIN (.50mm O/S) (Incl. 1,2,4)

2201708

$226.99

3

PST,84MM PWC STD NTRD PIN (Std.)(Incl.1,2,4)

2201706

$185.99

3

PSTN,84MM PWC.25 NTRD PIN (.25mm O/S) (Incl.1,2,4)

2201707

$140.16

3

PSTN,84MM PWC.50 NTRD PIN (.50mm O/S) (Incl. 1,2,4)

2201708

$226.99

4

RING,KIT,84MM.STD (Standard)

2201449

Unavailable

4

RING,KIT,84MM.25,O/S (.25mm O/S)

2201450

$85.54

4

RING,KIT,84MM.50,O/S (.50mm O/S)

2201451

$108.24

4

RING,KIT,84MM.STD (Standard)

2201449

Unavailable

4

RING,KIT,84MM.25,O/S (.25mm O/S)

2201450

$85.54

4

RING,KIT,84MM.50,O/S (.50mm O/S)

2201451

$108.24

4

RING,KIT,84MM.STD (Standard)

2201449

Unavailable

4

RING,KIT,84MM.25,O/S (.25mm O/S)

2201450

$85.54

4

RING,KIT,84MM.50,O/S (.50mm O/S)

2201451

$108.24

5

CONNE,ROD KIT ASM.

2201445

$211.74

5

CONNE,ROD KIT ASM.

2201445

$211.74

5

CONNE,ROD KIT ASM.

2201445

$211.74

6

BEARING,17NDL,PSTNPIN.

3552112

Unavailable

6

BEARING,17NDL,PSTNPIN.

3552112

Unavailable

6

BEARING,17NDL,PSTNPIN.

3552112

Unavailable

7

KEY,WOODRUFF(10)

7721117

$29.99

8

BUSHING(10)

7555905

$3.99

8

BUSHING(10)

7555905

$3.99

9

COUPLER,PUMP DRIVE

5432576

Unavailable

10

Nut (See Magneto Pg. C11, Ref. 10)

----

Unavailable

11

Washer (See Magneto Pg. C11, Ref. 9)

----

Unavailable

12

Seal

3610044

$24.27

13

RING,RETAINING,(10)

7710441

Unavailable

13

RING,RETAINING,(10)

7710441

Unavailable

14

BEARING,BALL

3585503

$31.75

14

BEARING,BALL

3585503

$31.75

15

Desc not available [No Longer Available]

5131744

Unavailable

16

Desc not available [No Longer Available]

5131745

Unavailable

16

Desc not available [No Longer Available]

5131745

Unavailable

17

Labyrinth

5131086

Unavailable

17

Labyrinth

5131086

Unavailable

18

Desc not available [No Longer Available]

5131746

Unavailable

19

SEAL,TYPE BA SL

5411524

Unavailable

20

RING,RETAINING(10)

7710435

Unavailable

21

O RING,(10)

5410613

$1.98

22

COLLAR,CRANKSHAFT

5131195

Unavailable
