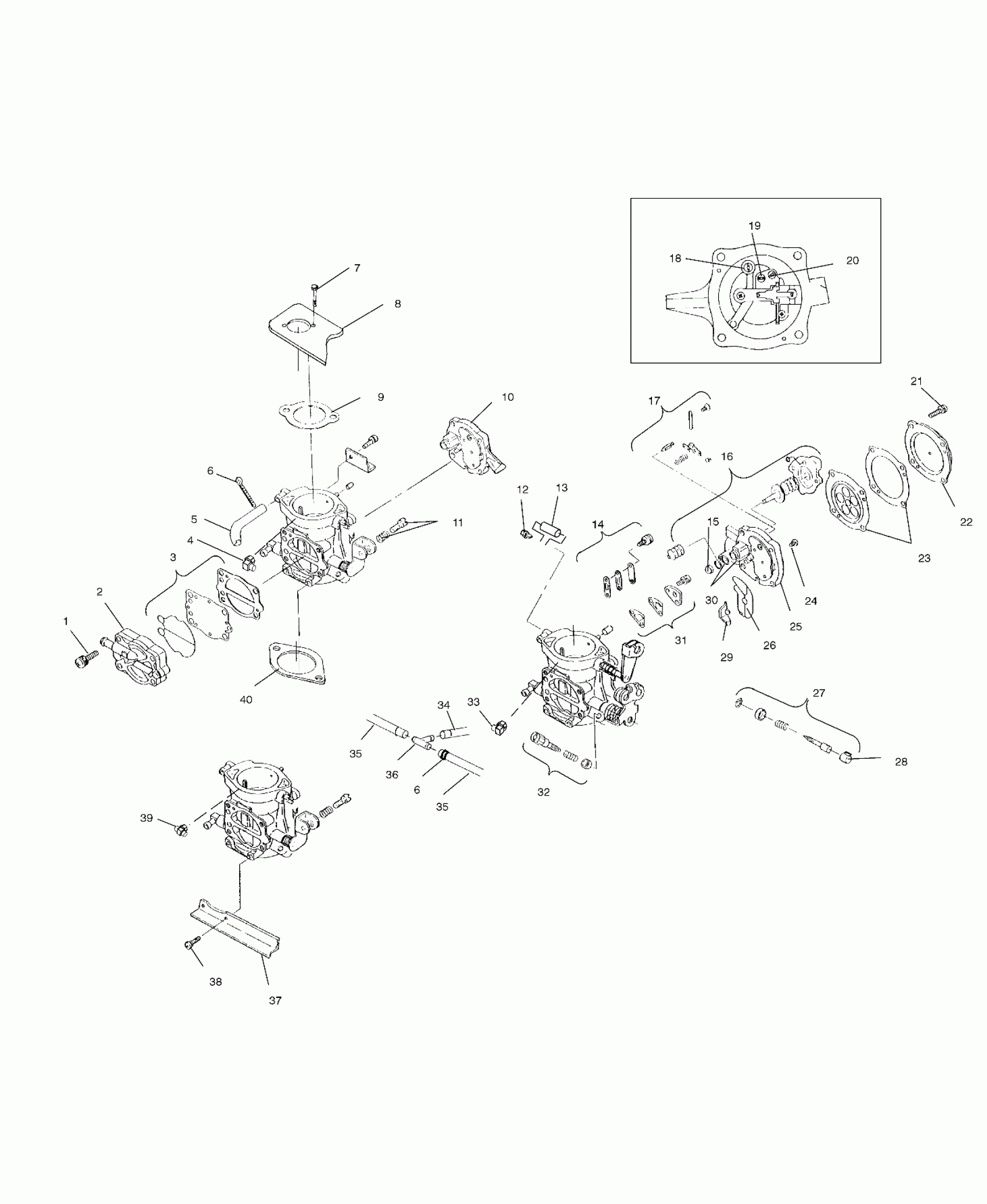

Polaris VIRAGE TX - W005199D CARBURETOR - W005199I (4955825582C009) Diagram

#

Description
Price

-

CARB,3CYL PWC,KEIHIN SL

1253323

Unavailable

-

KIT,CARB.REBUILD,PWC (Incl. 9,17,23,40)

2200910

Unavailable

1

SCREW, FUELPUMP

3050136

Unavailable

2

KIT,FUELPUMP BODY(KEIHIN)

2200687

Unavailable

3

KIT,GASKET(FUELPUMP)

2200686

Unavailable

4

NOZZLE,PTO,KEIHIN

3050254

Unavailable

5

Hose, Fuel

3050143

Unavailable

6

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

6

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

7

SCR-M6X1.00X145-HX/FL-SS

7516816

$29.99

8

BASE,SILENCER,INTAKE,TRIPLE

5630546

$49.75

9

GASKET,CARB.,UPPER

5830062

Unavailable

10

BLOCK-JET,KEIHIN Substituted by 3050205 (Rear & Center)

3050258

Unavailable

11

KIT,SYNCH.SCREW

2200734

Unavailable

12

JOINT,CONNECTING

3050156

$26.19

13

TUBE,RUBBER

3050157

Unavailable

14

KIT,CHECKVALVE,MID-RANGE,KHN (1 Per Carb)

2200685

Unavailable

15

SCREEN,FUELSTRAINER

3050144

Unavailable

16

PUMP,ACCEL.KIT (1 Per Carb)

2201309

Unavailable

17

KIT,NDLE VLVE,97DOM,NOT SL 1050 (1 Per Carb)

2200733

Unavailable

18

JET-MAIN,140 KEIHIN (Per Carb)(Mag)

3050186

$8.98

18

JET-MAIN,142 KEIHIN (Per Carb)(Center)

3050187

$8.98

18

JET-MAIN,135 KEIHIN (Per Carb)(PTO)

3050184

$8.98

19

JET-PILOT,65 KEIHIN (1 Per Carb)

3050128

$6.27

20

JET-PILOT, 42 KEIHIN (1 Per Carb)

3050119

$8.11

21

SCREW,JET BLOCK COVER

3050135

Unavailable

22

COVER,JET BLOCK

3050139

$45.24

23

KIT,DIAPHRAGM-JET BLOCK (1 Per Carb)

2200730

Unavailable

24

SCREW, JET BLOCK (1 Per Carb)

3050137

$3.98

25

BLOCK-JET,KEIHIN Substituted by 3050204

3050259

Unavailable

26

O-Ring, Jet Block

3050147

Unavailable

27

KIT,IDLESCREW,(KEIHIN) (1 Per Carb)

2200689

Unavailable

28

Cap, Limiter

3050140

Unavailable

29

Collar

3050138

Unavailable

30

O-RING,(VALVE SEAT)

3050148

Unavailable

31

KIT,CHECKVALVE,MAIN(KEIHIN) (1 Per Carb)

2200688

$34.21

32

KIT,IDLESTOP SCREW

2200731

$27.92

33

NOZZLE,MAG,KEIHIN

3050252

Unavailable

34

TUBE,RUBBER Substituted by 3050142

3050261

Unavailable

35

HOSE,FUEL,(ACCEL.PUMP)

3050142

Unavailable

35

HOSE,FUEL,(ACCEL.PUMP)

3050142

Unavailable

36

FITTING, T

3050141

$9.52

37

PLATE,CON,KEIHIN

3050164

$23.65

38

SCREW,CONNECT.PLATE

3050159

Unavailable

39

NOZZLE,CTR,KEIHIN

3050253

Unavailable

40

GASKET,CARB.

5830043

Unavailable
