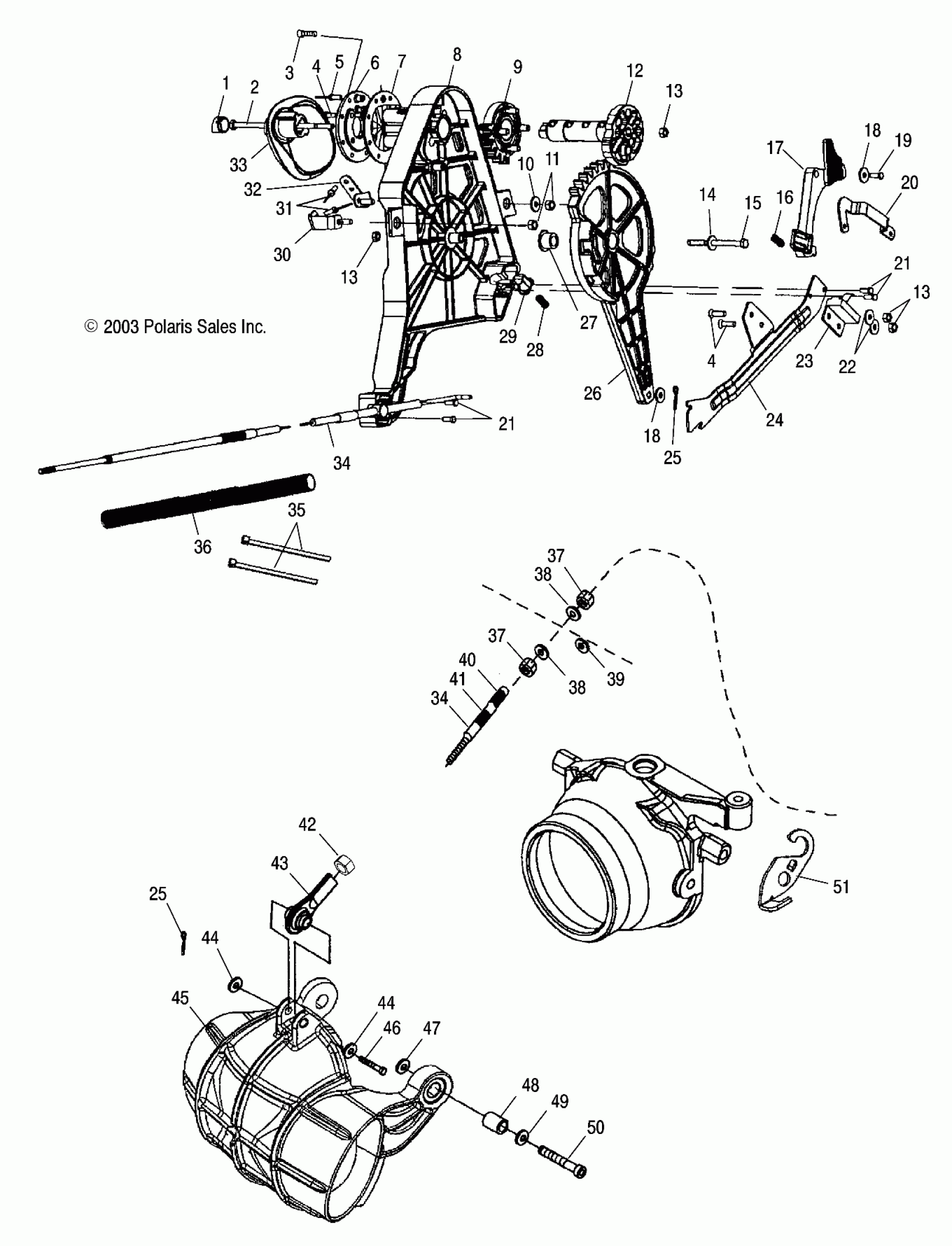

Polaris VIRAGE I - W045101CA/W045101IA REVERSE - W045101CA/W045101IA (4990479047B03) Diagram

#

Description
Price

1

Cap, Reverse Handle

5433677-070

Unavailable

2

SCR-M6X1.00X145-HX/FL-SS

7516816

$29.99

3

Screw

7516805

$0.71

4

Screw

7517669

Unavailable

4

Screw

7517669

Unavailable

5

Rivet

7661040

$0.54

6

Flange, Base, Reverse

5434066

$11.51

7

Gasket, Reverse

5811982

Unavailable

8

Plate, Base

5434973

Unavailable

9

Pinion, Reverse

5434067

Unavailable

10

WASHER-6.4MMX18X1.6,SS

7556094

$4.76

11

Nut

7546705

$4.76

12

Shaft, Cam, Reverse

5433955

Unavailable

13

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

13

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

13

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

14

Washer, Flat

7555856

$3.19

15

Screw

7516806

Unavailable

16

Spring, Compression

7041888

$13.10

17

Arm, Reverse Lock

5433676

Unavailable

18

Washer, Flat

7555837

$1.59

18

Washer, Flat

7555837

$1.59

19

Screw

7511882

$1.59

20

Bracket, Arm Lock Support

5412058

$28.73

21

Screw

7512049

Unavailable

21

Screw

7512049

Unavailable

22

Washer, Flat

7555857

Unavailable

23

Switch, Limit, Sealed

2410241

Unavailable

24

Bracket, Reverse, Support

5245180

$57.94

25

Pin, Cotter

7661010

$1.19

25

Pin, Cotter

7661010

$1.19

26

Arm, Reverse

5433871

Unavailable

27

Bushing

5433647

Unavailable

28

Spring, Compression

7041995

$13.10

29

Plunger, Detent, Reverse

5433673

Unavailable

30

Bracket, Reverse Plate, Rear w/Stud

5245634

$9.84

31

Rivet

7661041

$0.49

32

Bracket, Reverse Plate, Forward w/Stud

5245635

Unavailable

33

Handle, Reverse

5433605-070

Unavailable

34

Cable, Reverse

7081090

Unavailable

34

Cable, Reverse

7081090

Unavailable

35

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

36

Conduit, Convoluted

4010051-100

$9.89

37

Nut, Jam

7542528

$2.19

37

Nut, Jam

7542528

$2.19

38

Washer, Flat

7556232

Unavailable

38

Washer, Flat

7556232

Unavailable

39

Washer, Lock

7571625

$2.38

40

Seal, Rod

5411818

Unavailable

41

Seal, Rod

5412206

$2.94

42

Nut

7542150

Unavailable

43

Rod End

7061062

$27.94

44

Washer, Flat

7555839

Unavailable

44

Washer, Flat

7555839

Unavailable

45

Gate, Reverse, Directional (If built before 11/10/03)

5434049

Unavailable

45

Gate, Reverse, Directional w/Stop (If built after 11/10/03)

5435313

Unavailable

46

Pin, Clevis

7661117

Unavailable

47

Washer

7555866

Unavailable

48

Collar

5020683

$6.59

49

Washer, Flat

7555874

$2.38

49

Washer, Flat

7555874

$2.38

50

Screw

7515368

Unavailable

50

Screw

7515368

Unavailable

51

Bracket, Reverse Stop

5434272

Unavailable

51

Bracket, Reverse Stop

5434272

Unavailable
