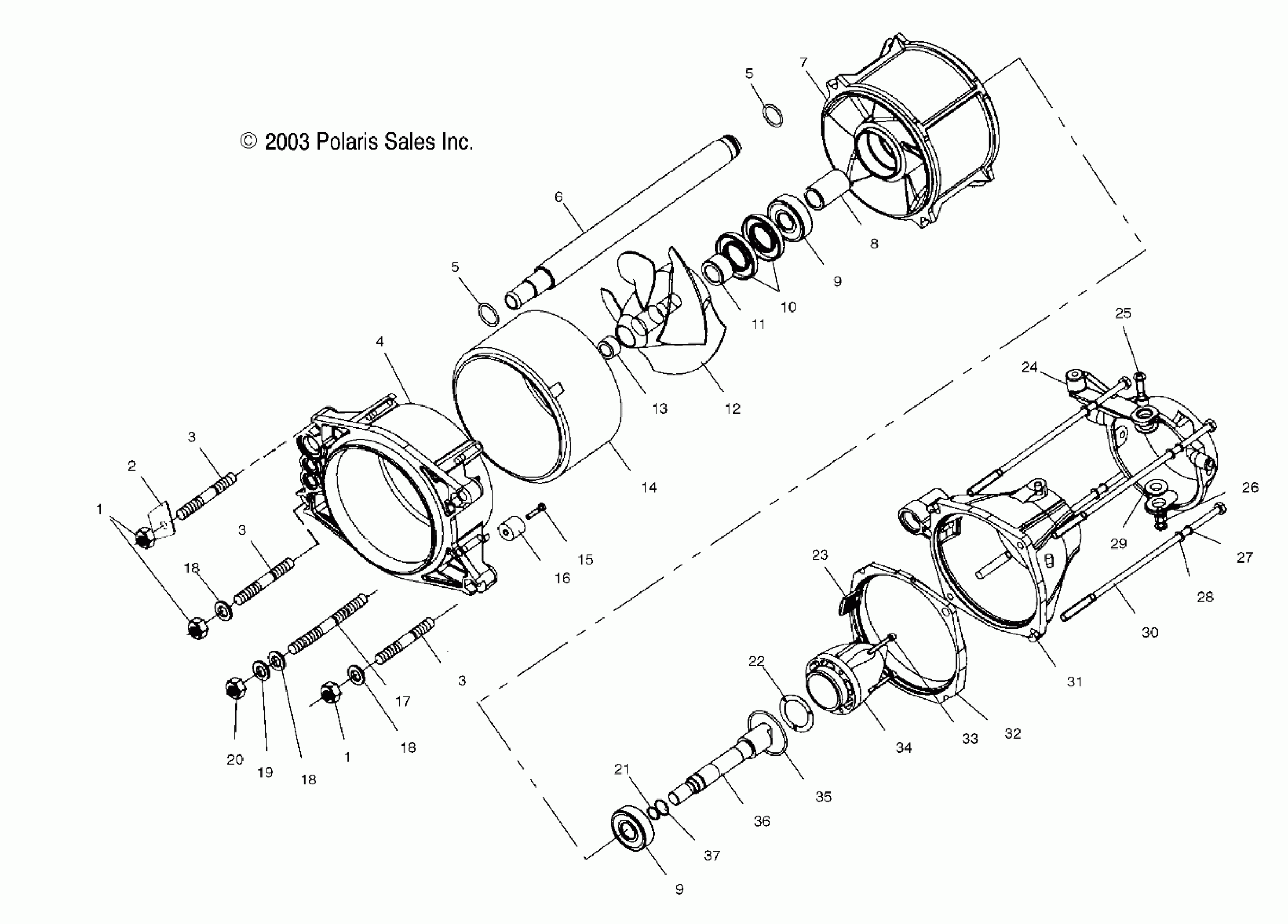

Polaris VIRAGE I - W045101CA/W045101IA PROPULSION - W045101CA/W045101IA (4990479047B02) Diagram

#

Description
Price

1

Nut, Nylok

7542455

Unavailable

1

Nut, Nylok

7542455

Unavailable

2

Bracket, Steering Cable Nut

5244556

Unavailable

3

Stud, Pump Mount

5132355

Unavailable

3

Stud, Pump Mount

5132355

Unavailable

3

Stud, Pump Mount

5132355

Unavailable

4

Housing, Pump, w/o Ring

5131573

Unavailable

5

O-Ring

5410735

$0.79

5

O-Ring

5410735

$0.79

6

Pipe, Water, Engine

5432269

$30.71

7

Stator, Pump

5130983

Unavailable

8

Spacer, Bearing

5010294

Unavailable

9

Bearing

3514008

Unavailable

9

Bearing

3514008

Unavailable

10

Seal, Stator Bearing

3610043

Unavailable

11

Spacer, Impeller (If built before 2/12/04)

5010295

Unavailable

11

Spacer, Impeller (If built after 2/12/04)

5134505

Unavailable

12

Impeller

5132372

$318.63

13

Seal, Impeller/Shaft

5411644

Unavailable

14

Extension, Pump

5131196

$204.99

15

Screw

7522019

$0.95

16

Anode, Zinc

5630598

Unavailable

17

Stud, Mount, Pump, Long

5132111

Unavailable

18

Washer, Flat

7555966

$2.62

18

Washer, Flat

7555966

$2.62

18

Washer, Flat

7555966

$2.62

19

Washer, Lock

7552607

$1.39

20

Nut

7542454

Unavailable

21

O-Ring

5410817

Unavailable

22

Seal, Tail Cone

5811984

Unavailable

23

Screen, Engine Inlet

5431523

Unavailable

24

Nozzle, Steering

5130999

Unavailable

25

Screw

7515366

Unavailable

26

Collar

5130938

Unavailable

27

Washer, Lock

7552610

Unavailable

28

Washer, Flat

7555835

$0.69

29

Bearing, Steering Nozzle

5431518

Unavailable

30

Bolt

7515389

Unavailable

31

Nozzle, Stationary

5131569

Unavailable

32

Wedge, Pump

5432841

Unavailable

33

Screw (If built before 3/15/04)

7512064

Unavailable

33

Screw (If built after 3/15/04)

7518396

Unavailable

34

Cone, Pump

5431519

Unavailable

35

O-Ring

5410819

$0.79

36

Shaft, Stub

5132674

$47.62

37

O-Ring

5410818

$0.79
