- VIRAGE I - W045101CA/W045101IA
FUEL TANK - W045101CA/W045101IA (4990479047A09)

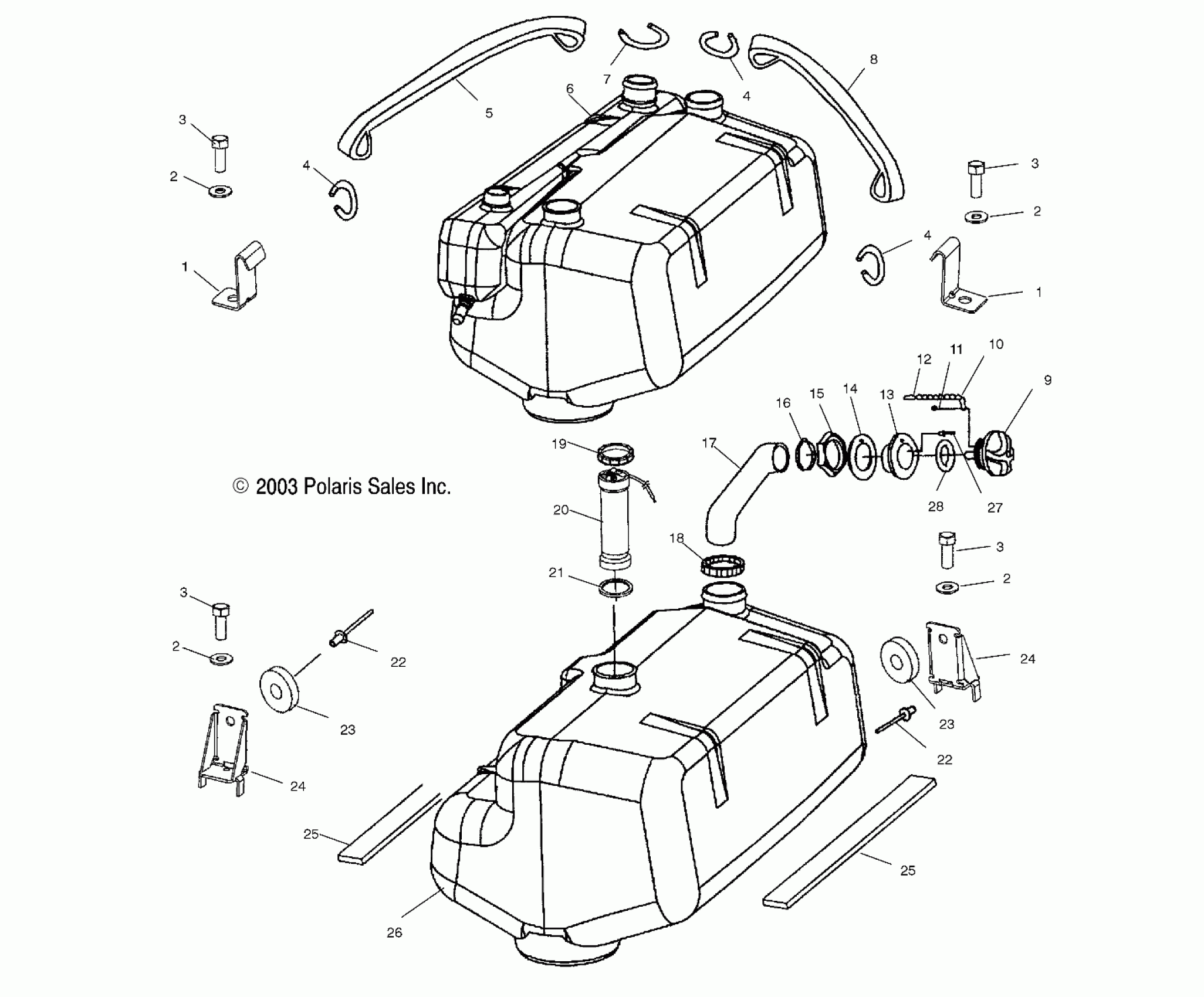

Polaris VIRAGE I - W045101CA/W045101IA FUEL TANK - W045101CA/W045101IA (4990479047A09) Diagram
#
1
Bracket, Strap
5244279
Unavailable
1
Bracket, Strap
5244279
Unavailable
2
Washer, Lock
7552610
Unavailable
2
Washer, Lock
7552610
Unavailable
2
Washer, Lock
7552610
Unavailable
2
Washer, Lock
7552610
Unavailable
3
Screw
7515361
Unavailable
3
Screw
7515361
Unavailable
3
Screw
7515361
Unavailable
3
Screw
7515361
Unavailable
4
Hook, Strap, Narrow
5243775
Unavailable
4
Hook, Strap, Narrow
5243775
Unavailable
4
Hook, Strap, Narrow
5243775
Unavailable
5
Strap, Rubber
5430621
$20.22
6
TANK, OIL, W/RELIEF [SEE OIL TANK PG. A12, REF. 20]
-------
Unavailable
7
Hook, Strap
5243776
Unavailable
8
Strap, Battery Holddown
5410424
Unavailable
9
Asm., Cap, Fuel, Ratchet
2520177
Unavailable
10
Chain, Bead, Fuel Cap Retainer
7080710
Unavailable
11
Screw
7511873
Unavailable
12
Coupling, End, Fuel Cap Chain
7080442
Unavailable
13
Inlet, Fuel
5433553
Unavailable
14
Seal, Fuel Inlet
5811492
Unavailable
15
Nut, Fuel Inlet
5433621
Unavailable
16
Clamp, Hose
7080766
Unavailable
17
Hose, Fuel Fill
5411757
Unavailable
18
CLAMP, HOSE
7080451
$7.19
19
Nut, DFI Fuel Pump
5433259
Unavailable
20
Pump, Fuel, DFI, Electrical
2410129
Unavailable
21
Gasket, DFI Fuel Pump
5411636
Unavailable
22
RIVET
7621407
$1.19
22
RIVET
7621407
$1.19
23
Pad, Fuel Tank Stop
5812206
Unavailable
23
Pad, Fuel Tank Stop
5812206
Unavailable
24
Bracket, Fuel Tank Stop
5244758
Unavailable
24
Bracket, Fuel Tank Stop
5244758
Unavailable
25
Pad, EVA
5812152
Unavailable
25
Pad, EVA
5812152
Unavailable
26
Tank, Fuel, Center, w/Relief, DFI
5434872
Unavailable
27
Rivet
7621229
Unavailable
28
Seal, Fuel Cap
5411305
Unavailable
