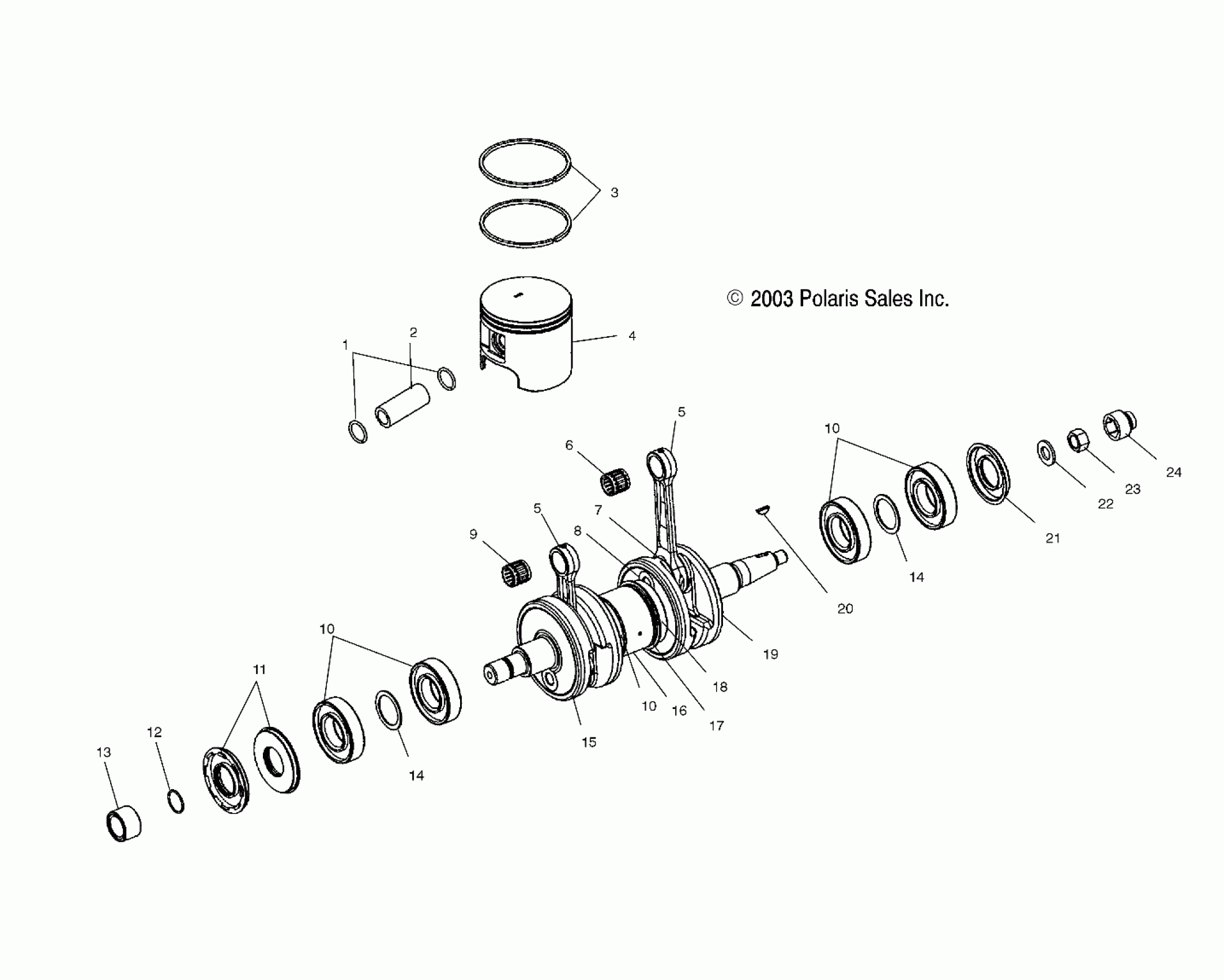

Polaris VIRAGE I - W045101CA/W045101IA CRANKSHAFT and PISTON - W045101CA/W045101IA (4990479047C04) Diagram

#

Description
Price

-

Kit, Crankshaft [Incl. 10,14-20]

2201844

Unavailable

1

Circlip, Piston

3022950

Unavailable

2

Pin, Piston

3021091

Unavailable

3

Kit, Piston Rings [Std.][2 Rings]

2201449

Unavailable

3

Kit, Piston Rings [.25 OS]

2201450

$85.54

3

Kit, Piston Rings [.50 OS]

2201451

$108.24

4

Kit, Piston [Std.][Incl.1,2,3]

2201706

$185.99

4

Kit, Piston [.25 OS][Incl.1,2,3]

2201707

$140.16

4

Kit, Piston [.50 OS][Incl.1,2,3]

2201708

$226.99

5

Kit, Connecting Rod [Incl. 7-9]

2202440

$257.99

5

Kit, Connecting Rod [Incl. 7-9]

2202440

$257.99

6

BEARING, CONNECTING ROD [20 MM]

----

Unavailable

7

Washer, Thrust

----

Unavailable

8

PIN, CRANKSHAFT

----

Unavailable

9

BEARING, CONNECTING ROD

----

Unavailable

10

Bearing, Ball

3585503

$31.75

10

Bearing, Ball

3585503

$31.75

10

Bearing, Ball

3585503

$31.75

11

Seal, Flange

5412091

$29.99

12

O-RING

5410613

$1.98

13

Collar, Crankshaft

5131195

Unavailable

14

Bushing

7555905

$3.99

14

Bushing

7555905

$3.99

15

Crankweb, PTO

5132546

Unavailable

16

Crankweb, Center

5132545

Unavailable

17

Labyrinth

5131086

Unavailable

18

BEARING, BALL

3514318

$52.37

19

Crankweb, Magneto

5132543

Unavailable

20

KEY, WOODRUFF

7721117

$29.99

21

Seal

3610044

$24.27

22

WASHER [SEE MAGNETO PG. C7, REF. 9]

----

Unavailable

23

NUT, HEX [SEE MAGNETO PG. C7, REF. 8]

----

Unavailable

24

Coupler, Pump Drive

5432576

Unavailable
