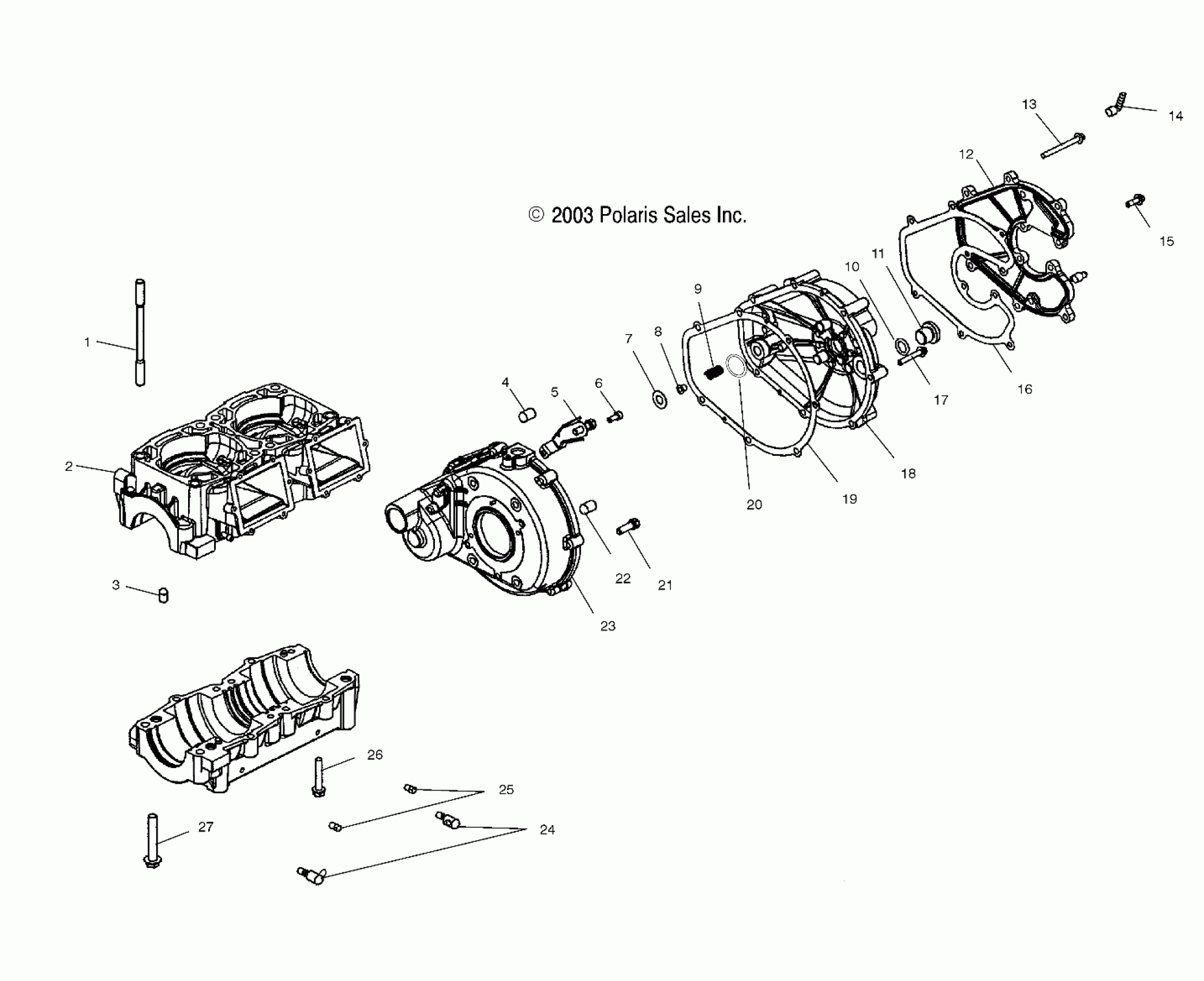

Polaris VIRAGE I - W045101CA/W045101IA CRANKCASE - W045101CA/W045101IA (4990479047C02) Diagram

#

Description
Price

1

Stud, Cylinder Flange

5131677

Unavailable

2

Kit, Crankcase [Incl. 1-3,26-27]

2202189

Unavailable

3

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

4

Bushing

3514378

$12.39

5

Clamp, Stator Wires

5243231

Unavailable

6

SCREW

7517431

$5.59

7

Washer, Thrust

7555908

$3.17

8

Bushing

3574214

Unavailable

9

Spring

7041457

Unavailable

10

O-Ring

5411564

$4.03

11

Plug, Hole, Timing, Nylon

5433820

$20.22

12

Cover, Water Jacket

5631431-329

Unavailable

13

Screw

7517662

Unavailable

14

Fitting

7052156

$30.00

15

Screw

7516809

Unavailable

16

Gasket, Water Jacket Cover

5812474

Unavailable

17

Screw

7516806

Unavailable

18

Asm., Flywheel Cover [Incl. 7]

1202574

Unavailable

19

Gasket, Flywheel Cover

5811550

Unavailable

20

Bushing

3569806

Unavailable

21

Screw

7516723

Unavailable

22

Pin, Dowel

7663002

$4.79

23

Asm., Flywheel Housing [Incl. 4,22]

1202023

Unavailable

24

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

25

Plug

7051529

$15.99

26

Screw

7517628

Unavailable

27

Screw

7516913

Unavailable
