COOLING SYSTEM - W045101CA/W045101IA (4990479047B09)

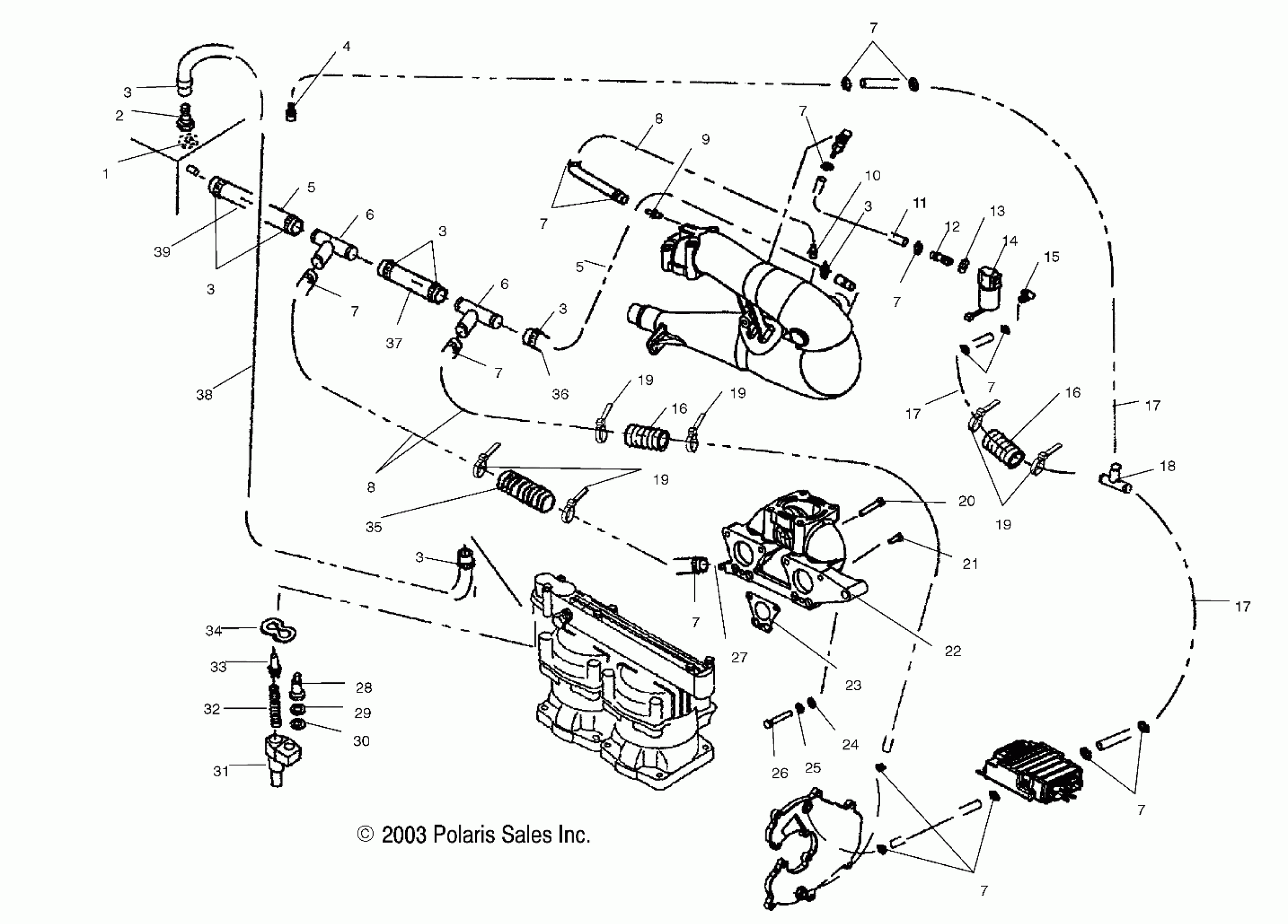

Polaris VIRAGE I - W045101CA/W045101IA COOLING SYSTEM - W045101CA/W045101IA (4990479047B09) Diagram
#
1
Gasket
5811317
Unavailable
2
Fitting, Thru-Hull
5431444-133
Unavailable
3
Clamp, Hose
7080475
$10.39
3
Clamp, Hose
7080475
$10.39
3
Clamp, Hose
7080475
$10.39
3
Clamp, Hose
7080475
$10.39
3
Clamp, Hose
7080475
$10.39
3
Clamp, Hose
7080475
$10.39
4
FITTING, WATER [SEE EXHAUST SYSTEM PG. B5, REF. 26]
-------
Unavailable
5
Conduit, Flex
5521287-45
Unavailable
5
Conduit, Flex
5521287-45
Unavailable
6
Fitting, Tee
5431784
Unavailable
6
Fitting, Tee
5431784
Unavailable
7
Clamp, Hose
7080476
$6.39
7
Clamp, Hose
7080476
$6.39
7
Clamp, Hose
7080476
$6.39
7
Clamp, Hose
7080476
$6.39
7
Clamp, Hose
7080476
$6.39
7
Clamp, Hose
7080476
$6.39
7
Clamp, Hose
7080476
$6.39
7
Clamp, Hose
7080476
$6.39
7
Clamp, Hose
7080476
$6.39
7
Clamp, Hose
7080476
$6.39
8
Hose, Water
8450054-100
Unavailable
8
Hose, Water
8450054-100
Unavailable
9
Fitting, Screen, Exhaust
7052128
Unavailable
10
Fitting, Injector, Exhaust
5020747
Unavailable
11
Hose, Long
8450102
Unavailable
12
Fitting
7052135
$9.52
13
Washer, Flat
7555841
Unavailable
14
Solenoid
4010915
Unavailable
15
Fitting
7052065
$7.19
16
Conduit, Flex
5521398-52
Unavailable
16
Conduit, Flex
5521398-52
Unavailable
17
Line, Fuel
8450104-1525
Unavailable
17
Line, Fuel
8450104-1525
Unavailable
17
Line, Fuel
8450104-1525
Unavailable
18
FITTING, TEE
7052075
$9.59
19
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
19
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
19
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
19
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
20
Screw
7516727
Unavailable
21
Screw
7516725
Unavailable
22
Asm., Exhaust Manifold
1260694-329
Unavailable
23
Gasket, Exhaust
5811045
Unavailable
24
Washer, Flat
7555856
Unavailable
25
Washer, Lock
7552611
Unavailable
26
Screw
7517004
Unavailable
27
Fitting, Drain Exhaust Manifold
5020746
Unavailable
28
Thermostat
7051008
Unavailable
29
Gasket, Thermostat
5412014
Unavailable
30
Washer
7556174
Unavailable
31
Cover, Thermostat
5631136
Unavailable
32
Spring, Compression
7041310
Unavailable
33
Valve, Pop-Off
5432799
Unavailable
34
Seal, Thermostat Housing
5410860
Unavailable
35
Conduit, Flex
5521398-13
Unavailable
36
Hose, Outlet, Pump
5411049
Unavailable
37
Hose, Water
8450050-08
Unavailable
38
Hose, Water Out
5411479
Unavailable
39
Hose, Inlet, Exhaust
5411050
Unavailable
