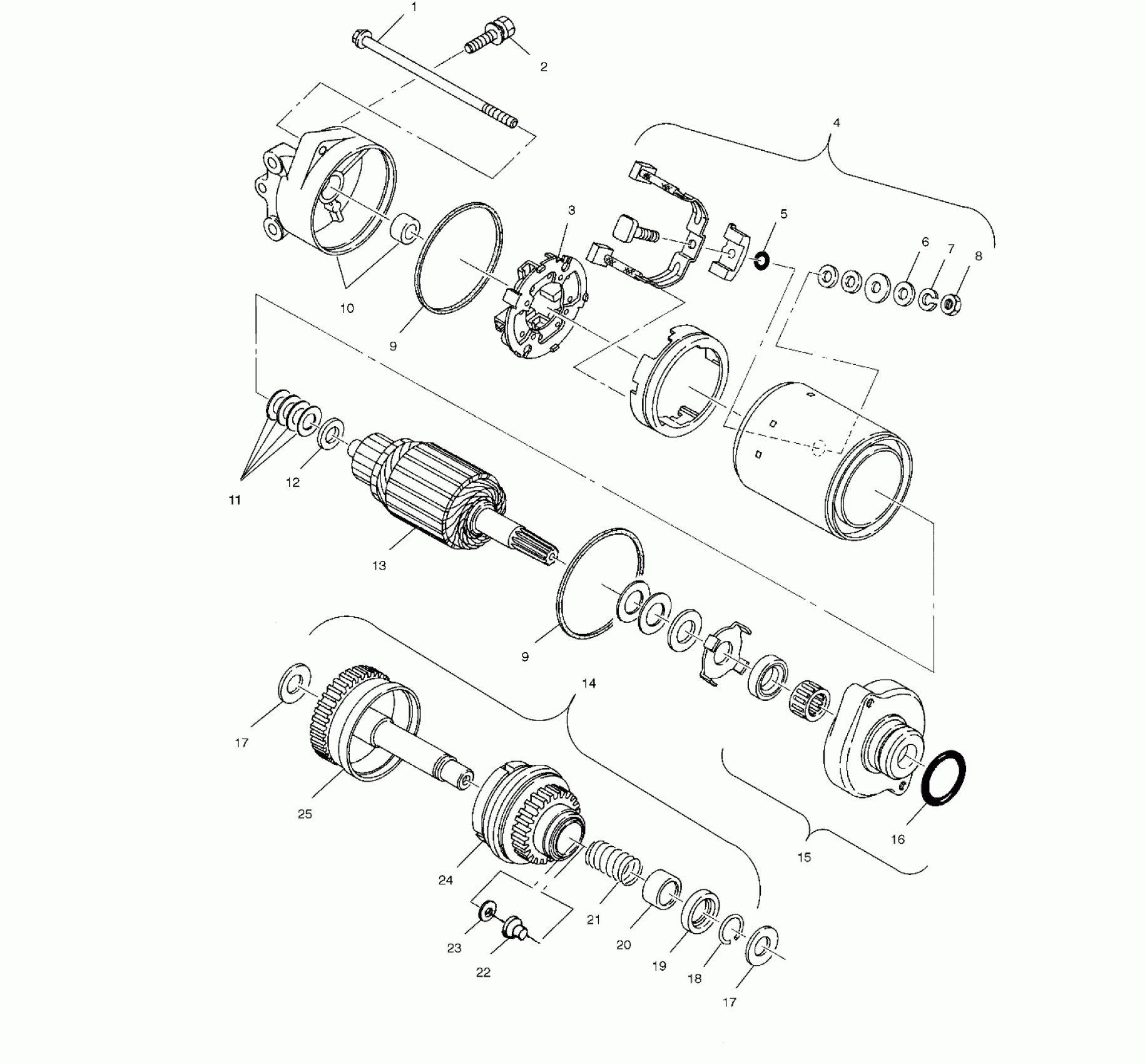

Polaris VIRAGE I - W035101CA/W035101IA STARTING MOTOR - W035101CA/W035101IA (4981048104C08) Diagram

#

Description
Price

-

Starter, Long Stud

4010675

$285.71

1

Bolt, Through

3240113

$8.73

2

Screw

7516807

Unavailable

3

Spring, Brush

3240111

$1.38

4

Asm., Brush [Incl. 3-8]

3240115

Unavailable

5

O-RING

3084408

Unavailable

6

Washer

3240119

Unavailable

7

Washer, Spring

3240117

Unavailable

8

Nut

3240116

Unavailable

9

RING, RUBBER

3084405

Unavailable

9

RING, RUBBER

3084405

Unavailable

10

Asm., Rear Bracket

3240207

$53.17

11

Washer, Thrust

3240118

Unavailable

12

Washer, Thrust

3240112

$0.32

13

Asm., Armature

3240205

$139.99

14

Asm., Bendix [Incl. 17-25]

4010418

$292.59

15

Asm., Front Bracket

3240206

Unavailable

16

O-Ring

3240114

$6.99

17

Washer

3083737

$3.17

17

Washer

3083737

$3.17

18

Ring, Snap

3240126

$0.32

19

Stopper

3240125

Unavailable

20

Cover

3240123

$3.81

21

Spring

7041457

Unavailable

22

Bushing, Flanged

3574214

$5.00

23

Washer, Thrust

7555908

$3.17

24

Asm., Gear

3240122

$292.59

25

Asm., Gear [Incl. 17-24]

3240120

$292.59
