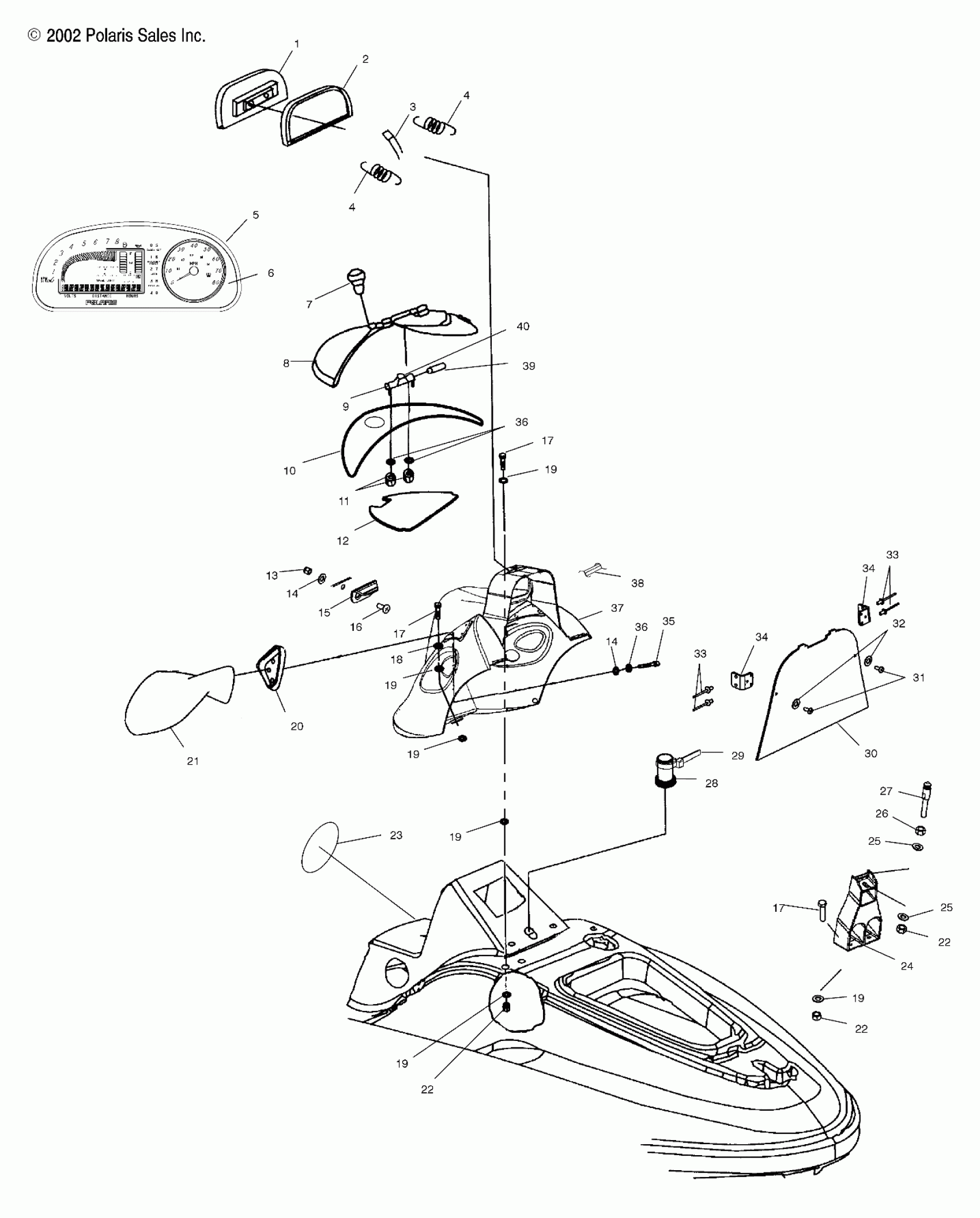

Polaris VIRAGE I - W035101CA/W035101IA SHROUD - W035101CA/W035101IA (4981048104A03) Diagram

#

Description
Price

1

Gauge, MFI

3280365

Unavailable

2

Gasket, MFI

5411738

$5.16

3

Line, Pitot, Formed End

8450070-190

$24.25

4

Spring, MFI Mounting

7041931

$1.83

4

Spring, MFI Mounting

7041931

$1.83

5

Kit, MFI Button Replacement

2201593

$25.30

6

Bezel, MFI, Overlay

3280342

$23.81

7

Asm., Console Latch

2653011

$28.73

8

Lid, Console

5434564-443

$97.99

9

Spring, Torsion, Console

7042007

Unavailable

10

Seal

5521630

Unavailable

11

Nut

7546705

$4.76

12

Pad, Console

5812235

Unavailable

13

NUT-6 MM X 1.00-NYLOK-SS

7546704

$1.75

14

WASHER-6.4MMX18X1.6,SS

7556094

$4.76

14

WASHER-6.4MMX18X1.6,SS

7556094

$4.76

15

Hook, Console

5245455

Unavailable

16

Screw

7517669

Unavailable

17

Screw

7517668

$2.06

17

Screw

7517668

$2.06

17

Screw

7517668

$2.06

18

Washer, Lock

7556055

Unavailable

19

Washer, Flat

7555831

Unavailable

19

Washer, Flat

7555831

Unavailable

19

Washer, Flat

7555831

Unavailable

19

Washer, Flat

7555831

Unavailable

19

Washer, Flat

7555831

Unavailable

19

Washer, Flat

7555831

Unavailable

20

Gasket, Mirror, LH

5411557

$4.92

20

Gasket, Mirror, RH

5411558

$4.92

21

Asm., Mirror, LH [Incl. 20]

2631972-070

$119.05

21

Asm., Mirror, RH [Incl. 20]

2631973-070

$106.35

22

NUT, NYLOK

7546804

$1.19

22

NUT, NYLOK

7546804

$1.19

22

NUT, NYLOK

7546804

$1.19

23

Grommet, Access

5411674

$9.84

24

Bracket, Hood Post

5434684

$22.06

25

Washer

7555835

$0.69

25

Washer

7555835

$0.69

26

Nut

7547187

$0.95

27

Pin, Latch

5132781

$24.60

28

Grommet, Deck, Wire Harness

5411664

Unavailable

29

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

30

Cover, Shroud

5812284

$23.81

31

Screw

7511873

Unavailable

32

Washer, Flat

7555837

$1.59

33

Rivet

7621220

$2.38

33

Rivet

7621220

$2.38

34

Bracket, Shroud

5245451

Unavailable

34

Bracket, Shroud

5245451

Unavailable

35

Screw

7516805

$0.71

36

Washer, Lock

7552613

Unavailable

36

Washer, Lock

7552613

Unavailable

37

Shroud, Steering

5434561-443

Unavailable

38

Bumper, Door/Shroud

5812076

$10.81

39

Pin, Hinge

5333698

Unavailable

40

Hinge, Console

5433384

Unavailable
