- VIRAGE I - W035101CA/W035101IA
ENGINE MOUNTING - W035101CA/W035101IA (4981048104B06)

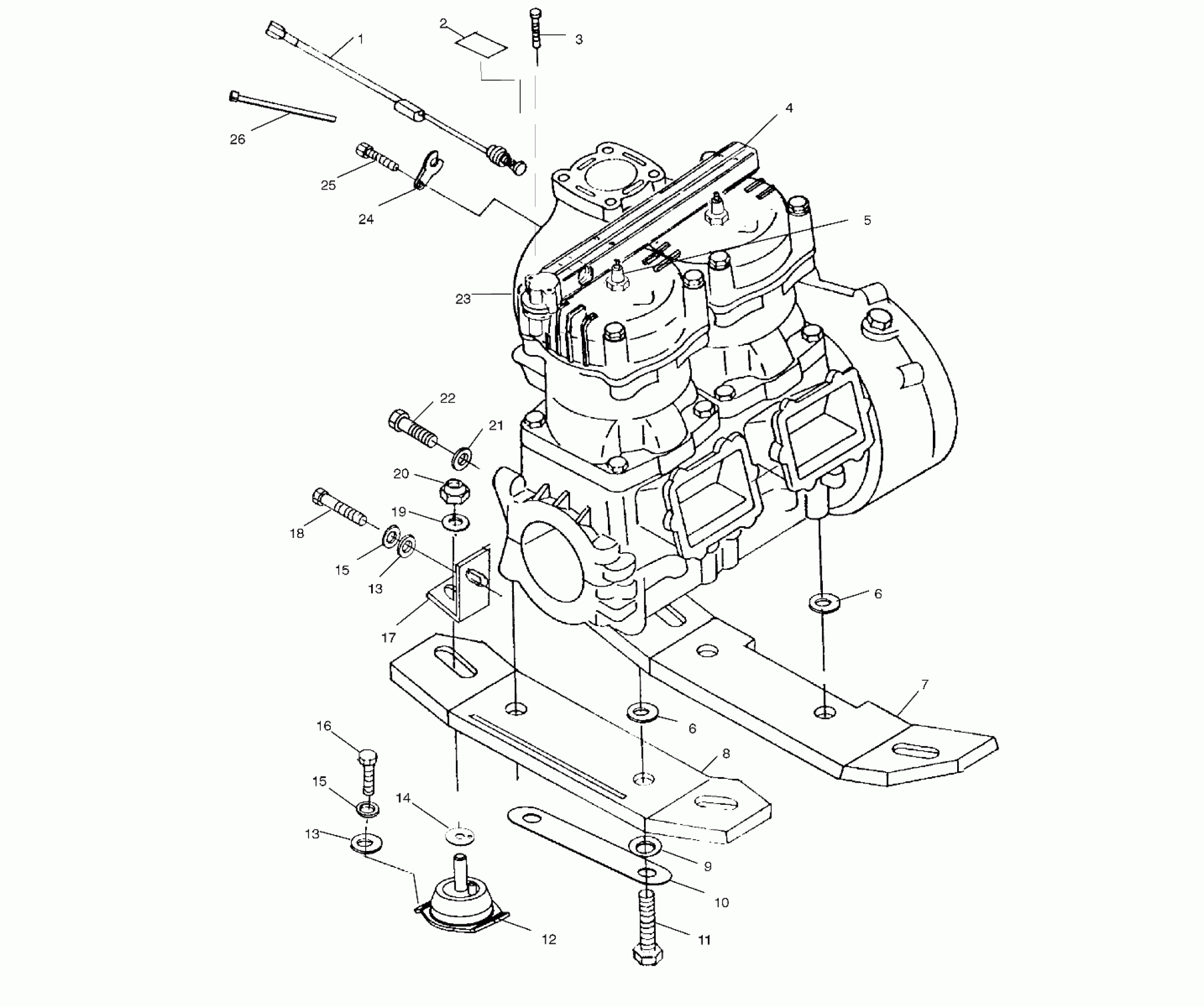

Polaris VIRAGE I - W035101CA/W035101IA ENGINE MOUNTING - W035101CA/W035101IA (4981048104B06) Diagram
#
Description
Price
1
Sensor, Water Temperature
2410125
Unavailable
2
Decal, Spark Plug
7077026
$2.95
3
Screw
7515149
Unavailable
4
DECAL, WARNING [SEE CYLINDER AND MANIFOLD PG. C3, REF. 3]
-------
Unavailable
5
SPARK PLUG, NGK BPR8ES [SEE CYLINDER AND MANIFOLD PG. C3, REF. 25]
-------
Unavailable
6
Washer, Flat
7556184
Unavailable
6
Washer, Flat
7556184
Unavailable
7
Plate, Front Mount
5631166-329
Unavailable
8
Plate, Rear Mount
5631167-329
Unavailable
9
Washer, Flat
7556170
Unavailable
10
Lock, Plate
5245460
Unavailable
11
Screw
7517330
Unavailable
12
Mount, Engine
3021254
Unavailable
13
Washer
7555835
Unavailable
13
Washer
7555835
Unavailable
14
Shim, Engine Mount
5211727
Unavailable
15
Washer, Lock
7552610
Unavailable
15
Washer, Lock
7552610
Unavailable
16
Screw
7517627
Unavailable
17
Bracket, Rear Muffler
1060142
Unavailable
18
Screw
7515357
Unavailable
19
Washer, Flat
7555848
Unavailable
20
Nut, Nylok
7542725
Unavailable
21
Washer, Lock
7556055
Unavailable
22
Bolt
7517497
$3.97
23
Kit, Short Block NOTE: The Short Block assembly contains a crankcase assembly, cylinder, and cylinder head assembly.
2201843
Unavailable
24
Clip, Retainer
5244176
Unavailable
25
BOLT
7516603
$10.39
26
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
