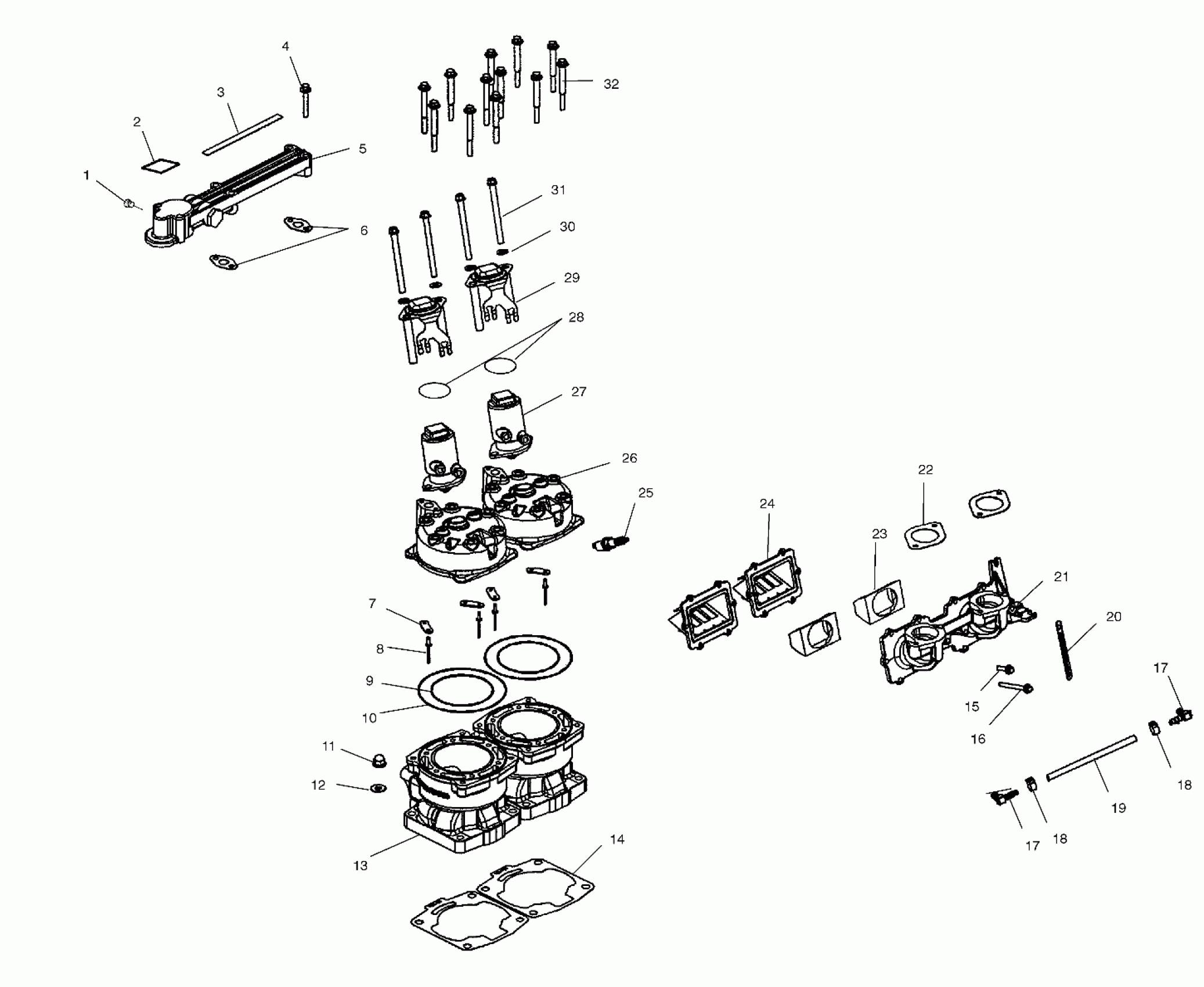

Polaris VIRAGE I - W035101CA/W035101IA CYLINDER and MANIFOLD - W035101CA/W035101IA (4981048104C03) Diagram

#

Description
Price

1

Plug, Pipe

7051527

Unavailable

2

Decal, Spark Plug

7077026

$2.95

3

Decal, Warning

7075383

Unavailable

4

Screw

7516806

Unavailable

5

Manifold, Outlet, Water

1202061-329

Unavailable

6

Gasket, Water, Manifold

5830061

Unavailable

7

Restrictor

5244008

Unavailable

8

Rivet

7661072

Unavailable

9

O-Ring

5411573

Unavailable

10

O-Ring

5412232

$7.99

11

NUT

7547021

$6.99

12

Washer, Flat

7556222

Unavailable

13

Cylinder

3021286

Unavailable

14

Gasket, Cylinder Base

5811784

$8.89

15

Screw

7516807

Unavailable

16

Screw

7516814

Unavailable

17

Fitting

7052156

$30.00

17

Fitting

7052156

$30.00

18

Clamp Hose, Oetiker

7081066

Unavailable

18

Clamp Hose, Oetiker

7081066

Unavailable

19

Line, Fuel

8450104

Unavailable

20

Retainer

7080654

$18.32

21

Manifold, Intake

5631223-329

Unavailable

22

Gasket, Carb

5830043

Unavailable

23

Stuffer, Reed Block

5433151

Unavailable

24

Asm., Valve, Reed

1201825

$134.99

25

Spark Plug, NGK PZFR6H

3070189

Unavailable

26

Head, Cylinder

3021205-244

Unavailable

27

Injector

1253375

Unavailable

28

O-Ring

5412393

Unavailable

29

Cap

5247336

Unavailable

30

Washer, Flat

7555835

Unavailable

31

Screw

7517832

Unavailable

32

Screw

7518031

Unavailable
