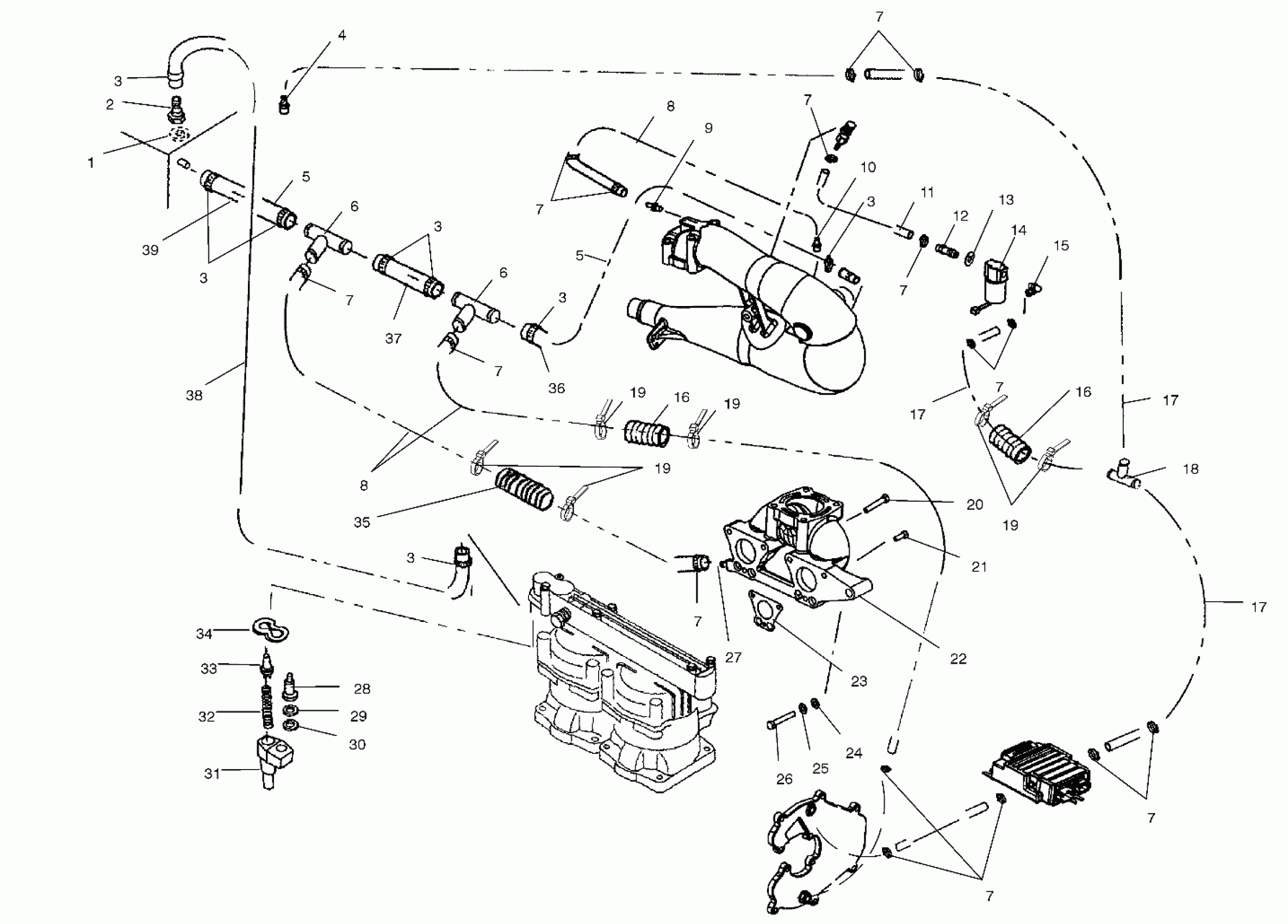

Polaris VIRAGE I - W035101CA/W035101IA COOLING SYSTEM - W035101CA/W035101IA (4981048104B09) Diagram

#

Description
Price

1

Gasket

5811317

$0.87

2

Fitting, Thru-Hull

5431444-133

Unavailable

3

Clamp, Hose

7080475

Unavailable

3

Clamp, Hose

7080475

Unavailable

3

Clamp, Hose

7080475

Unavailable

3

Clamp, Hose

7080475

Unavailable

3

Clamp, Hose

7080475

Unavailable

3

Clamp, Hose

7080475

Unavailable

4

FITTING [SEE EXHAUST SYSTEM PG. B5, REF. 26]

----

Unavailable

5

Conduit

5521287-45

$7.38

5

Conduit

5521287-45

$7.38

6

Fitting, Tee

5431784

Unavailable

6

Fitting, Tee

5431784

Unavailable

7

Clamp, Hose

7080476

$6.35

7

Clamp, Hose

7080476

$6.35

7

Clamp, Hose

7080476

$6.35

7

Clamp, Hose

7080476

$6.35

7

Clamp, Hose

7080476

$6.35

7

Clamp, Hose

7080476

$6.35

7

Clamp, Hose

7080476

$6.35

7

Clamp, Hose

7080476

$6.35

7

Clamp, Hose

7080476

$6.35

7

Clamp, Hose

7080476

$6.35

8

Hose, Water

8450054-100

Unavailable

8

Hose, Water

8450054-100

Unavailable

9

Fitting, Screen, Exhaust

7052128

Unavailable

10

Fitting, Injector, Exhaust

5020747

$5.56

11

Hose, Blue

8450102

$15.56

12

Fitting

7052135

$9.52

13

Washer, Flat

7555841

Unavailable

14

Valve, Solenoid

4010768

Unavailable

15

Fitting

7052065

$7.14

16

Conduit, Flex

5521398-52

$5.71

16

Conduit, Flex

5521398-52

$5.71

17

Line

8450104-1525

Unavailable

17

Line

8450104-1525

Unavailable

17

Line

8450104-1525

Unavailable

18

T-Fitting

7052075

$9.52

19

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

19

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

19

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

19

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

20

Screw

7516727

Unavailable

21

Screw

7516725

Unavailable

22

Asm., Exhaust Manifold

1260694-329

Unavailable

23

Gasket, Exhaust

5811045

Unavailable

24

Washer, Flat

7555856

$3.19

25

Washer, Lock

7552611

Unavailable

26

Screw

7517004

Unavailable

27

Fitting, Drain Exhaust

5020746

Unavailable

28

Thermostat, 143 Degrees F.

7051008

Unavailable

29

Gasket, Thermostat

5412014

Unavailable

30

Washer

7556174

Unavailable

31

Cover, Thermostat, Machined

5631136

Unavailable

32

Spring, Compression

7041310

$1.83

33

Valve, Pop-Off

5432799

$4.92

34

Seal, Thermostat Housing

5410860

Unavailable

35

Conduit, Flex

5521398-13

$5.71

36

Hose, Outlet, Pump

5411049

Unavailable

37

Line

8450050-08

Unavailable

38

Hose, Water Out

5411479

Unavailable

39

Hose, Inlet

5411050

Unavailable
