SHROUD - W025101C/W025101D/W025101I (4971387138A03)

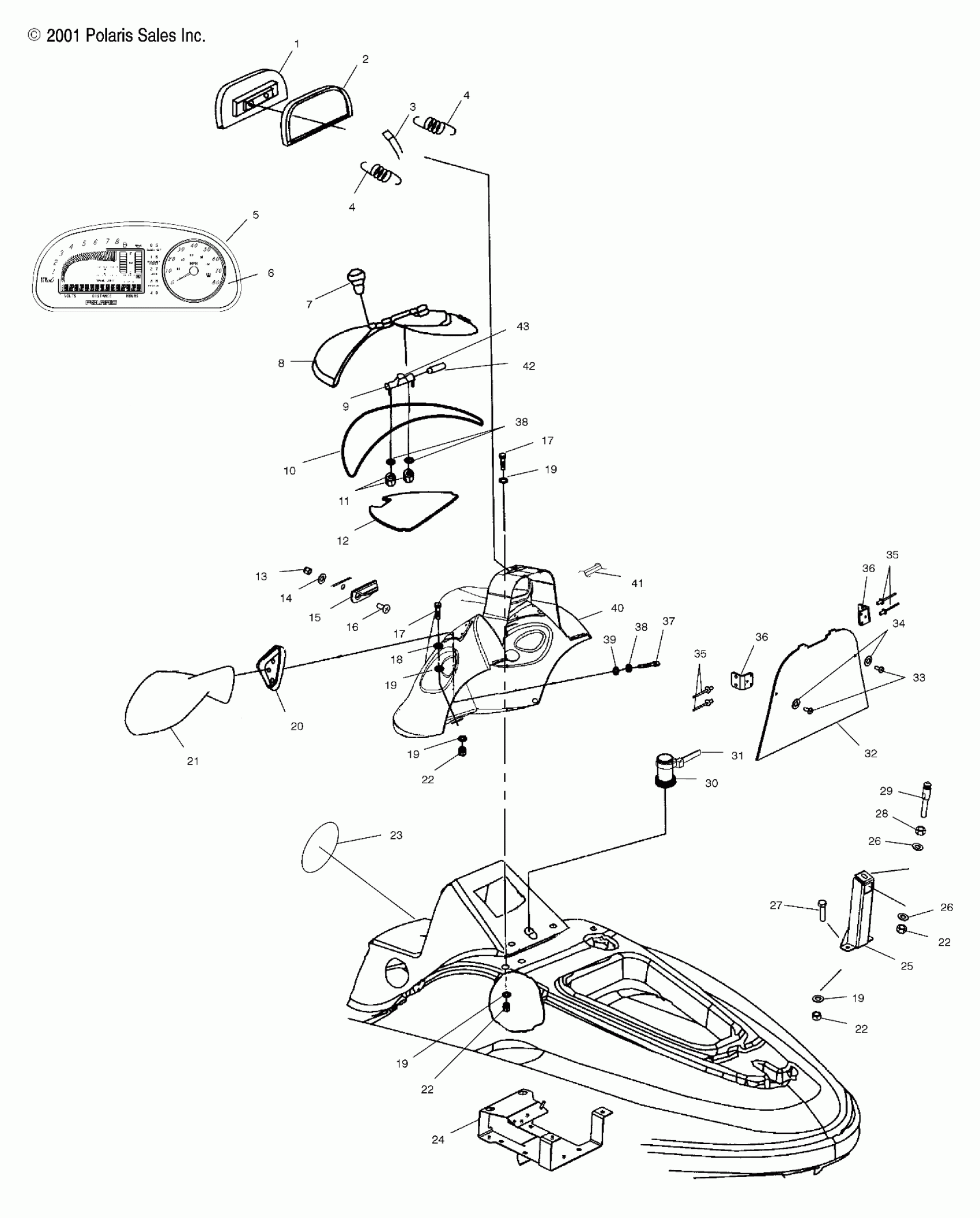

Polaris VIRAGE I - W025101D SHROUD - W025101C/W025101D/W025101I (4971387138A03) Diagram
#
1
Gauge, MFI
3280365
Unavailable
2
Gasket, MFI
5411738
Unavailable
3
Line, Pitot, Formed End
8450070-190
Unavailable
4
Spring, MFI Mounting
7041931
Unavailable
4
Spring, MFI Mounting
7041931
Unavailable
5
Kit, MFI Button Replacement
2201593
Unavailable
6
Bezel, MFI, Overlay
3280342
Unavailable
7
Asm., Console Latch
2653011
Unavailable
8
Lid, Console
5434564-1132
Unavailable
9
Spring, Torsion, Console
7042007
Unavailable
10
Seal
5521596
Unavailable
11
Nut
7546705
$4.79
12
Pad, Console
5812235
Unavailable
13
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
14
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
15
Hook, Console
5245455
Unavailable
16
Screw
7517669
Unavailable
17
Screw
7517668
Unavailable
17
Screw
7517668
Unavailable
18
Washer, Lock
7556055
Unavailable
19
Washer, Flat
7555831
Unavailable
19
Washer, Flat
7555831
Unavailable
19
Washer, Flat
7555831
Unavailable
19
Washer, Flat
7555831
Unavailable
19
Washer, Flat
7555831
Unavailable
20
Gasket, Mirror, LH
5411557
Unavailable
20
Gasket, Mirror, RH
5411558
Unavailable
21
Asm., Mirror, LH [Incl. 20]
2631972-070
Unavailable
21
Asm., Mirror, RH [Incl. 20]
2631973-070
Unavailable
22
NUT, NYLOK
7546804
$1.49
22
NUT, NYLOK
7546804
$1.49
22
NUT, NYLOK
7546804
$1.49
22
NUT, NYLOK
7546804
$1.49
23
Grommet, Access
5411674
Unavailable
24
Bracket, EMM
5245934
Unavailable
25
Post, Door Latch
1821213
Unavailable
26
Washer
7555835
Unavailable
26
Washer
7555835
Unavailable
27
Screw
7517539
Unavailable
28
Nut
7547187
Unavailable
29
Pin, Latch
5132781
Unavailable
30
Grommet, Deck, Wire Harness
5411664
Unavailable
31
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
32
Cover, Shroud
5812284
Unavailable
33
Screw
7511873
Unavailable
34
Washer, Flat
7555837
Unavailable
35
Rivet
7621220
$2.39
35
Rivet
7621220
$2.39
36
Bracket, Shroud
5245451
Unavailable
36
Bracket, Shroud
5245451
Unavailable
37
Screw
7516805
Unavailable
38
Washer, Lock
7552613
Unavailable
38
Washer, Lock
7552613
Unavailable
39
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
40
Shroud, Steering
5434561-1132
Unavailable
41
Bumper, Door/Shroud
5812076
Unavailable
42
Pin, Hinge
5333698
Unavailable
43
Hinge, Console
5433384
Unavailable
