SEAT - W025101C/W025101D/W025101I (4971387138A11)

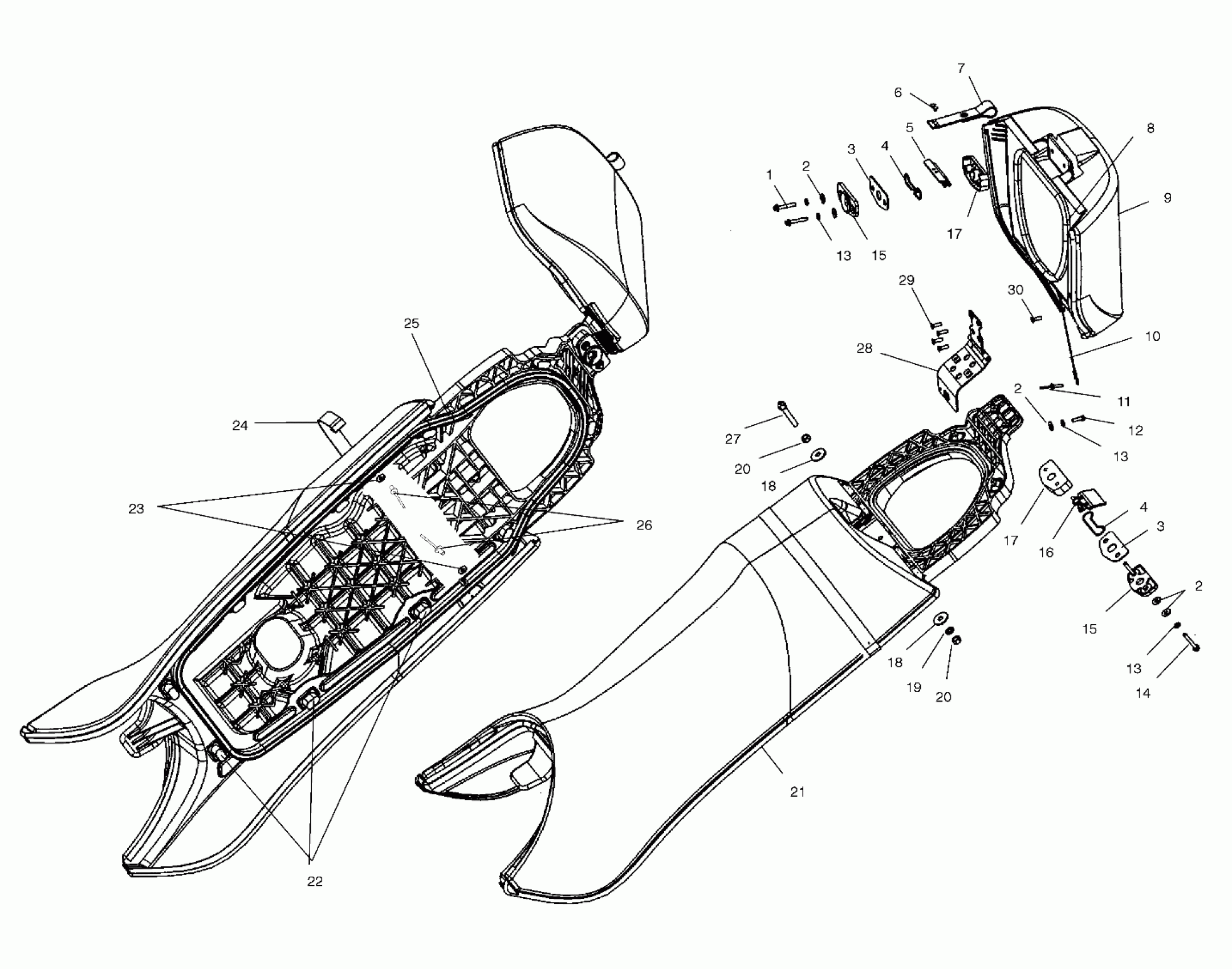

Polaris VIRAGE I - W025101D SEAT - W025101C/W025101D/W025101I (4971387138A11) Diagram
#
-
Asm., Seat, Final
2682964-342
Unavailable
1
Screw
7516806
Unavailable
2
Washer, Flat
7555839
Unavailable
2
Washer, Flat
7555839
Unavailable
2
Washer, Flat
7555839
Unavailable
3
Plate, Seat Base Latch
5211314
Unavailable
3
Plate, Seat Base Latch
5211314
Unavailable
4
Spring, Seat Base Latch
7042036
Unavailable
4
Spring, Seat Base Latch
7042036
Unavailable
5
Handle, Seat Latch
5433779
Unavailable
6
RIVET
7621478
Unavailable
7
Strap, Seat Latch
5812025
Unavailable
8
Seal, Seat, Rear
5411807
Unavailable
9
Asm., Seat, Rear
2682962-342
Unavailable
9
Cover, Seat, Rear
2682663-342
Unavailable
10
Cable, Limiter, Seat
7080914
Unavailable
11
Rivet
7661104
Unavailable
12
Screw
7517805
Unavailable
13
Washer, Lock
7555838
Unavailable
13
Washer, Lock
7555838
Unavailable
13
Washer, Lock
7555838
Unavailable
14
Screw
7517806
Unavailable
15
Plate, Bottom, Seat Base Latch
5431357
Unavailable
15
Plate, Bottom, Seat Base Latch
5431357
Unavailable
16
Handle, Seat Base Latch
5431358
Unavailable
17
Plate, Top, Seat Base Latch
5431359
Unavailable
17
Plate, Top, Seat Base Latch
5431359
Unavailable
18
WASHER, FLAT
7555846
$5.59
18
WASHER, FLAT
7555846
$5.59
19
Washer, Lock
7552607
Unavailable
20
Nut
7542454
Unavailable
20
Nut
7542454
Unavailable
21
Asm., Seat, Main
2682772-370
Unavailable
21
Cover, Seat, Main
2682665-370
Unavailable
22
Bumper, Seat
5521490
Unavailable
23
Washer
5245090
Unavailable
24
Strap, Seat
2682677-370
Unavailable
25
Seal, Seat, Main
5521536
Unavailable
26
Rivet
7661108
$1.19
27
Plunger, Latch
5020753
Unavailable
28
Asm., Hinge, Seat
1013431
Unavailable
29
Screw
7517669
Unavailable
30
Screw
7517717
Unavailable
