- VIRAGE I - W025101D
REVERSE - W025101C/W025101D/W025101I (4971387138B03)

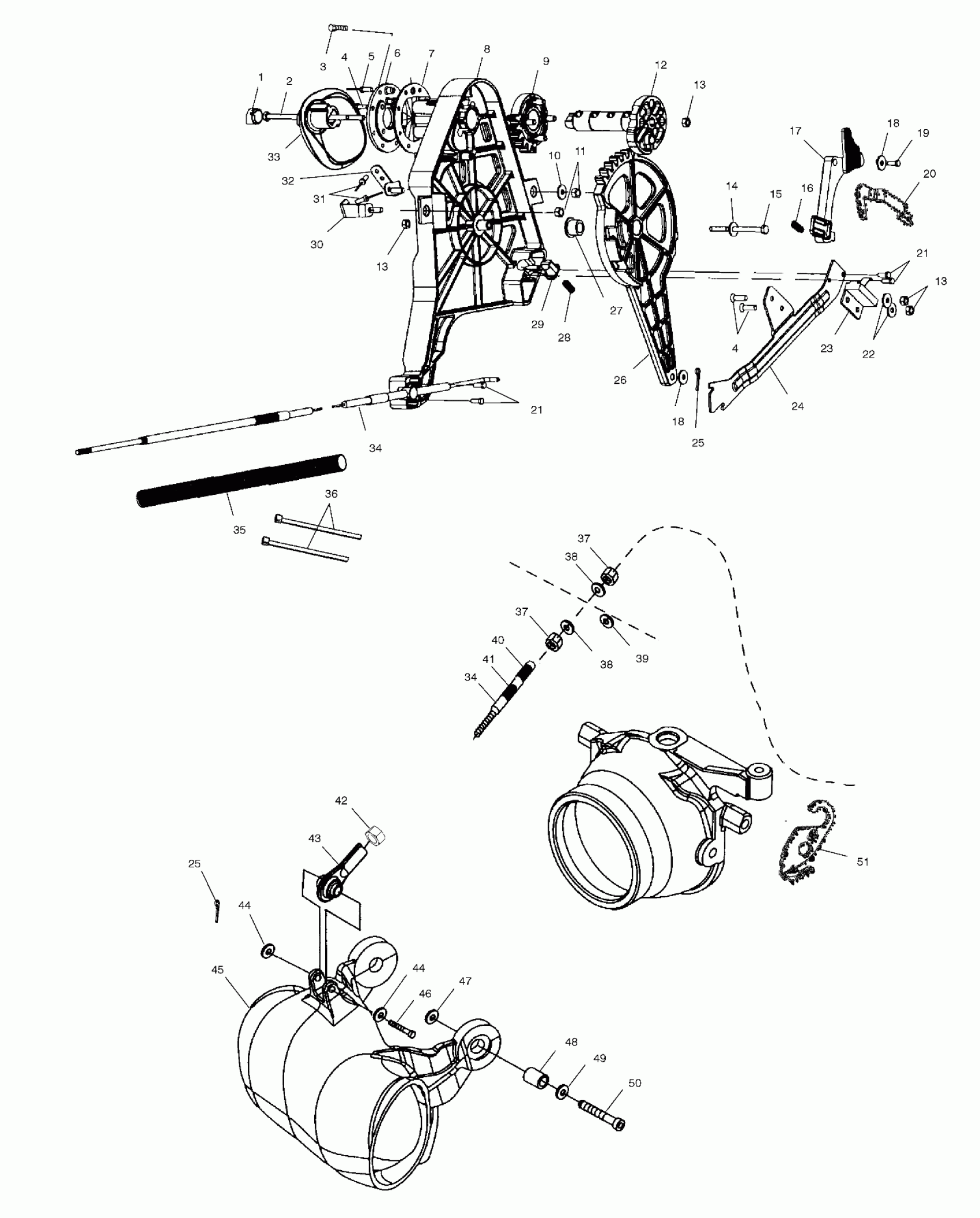

Polaris VIRAGE I - W025101D REVERSE - W025101C/W025101D/W025101I (4971387138B03) Diagram
#
1
Cap
5433677-070
Unavailable
2
SCR-M6X1.00X145-HX/FL-SS
7516816
$23.99
3
Screw
7516805
Unavailable
4
Screw
7517669
Unavailable
4
Screw
7517669
Unavailable
5
Rivet
7661040
Unavailable
6
Flange
5434066
Unavailable
7
Gasket
5811982
Unavailable
8
Plate, Base
5433643
Unavailable
9
Pinion
5434067
Unavailable
10
WASHER-6.4MMX18X1.6,SS
7556094
$4.79
11
Nut
7546705
$4.79
12
Shaft, Cam
5433955
Unavailable
13
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
13
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
13
NUT-6 MM X 1.00-NYLOK-SS
7546704
$1.75
14
Washer, Flat
7555856
Unavailable
15
Screw
7516806
Unavailable
16
Spring, Compression
7041888
$13.19
17
Arm, Reverse Lock
5433676
Unavailable
18
Washer, Flat
7555837
Unavailable
18
Washer, Flat
7555837
Unavailable
19
Screw
7511882
Unavailable
20
Bracket, Arm Lock
5412058
Unavailable
21
Screw
7512049
Unavailable
21
Screw
7512049
Unavailable
22
Washer, Flat
7555857
Unavailable
23
Switch, Limit
2410241
Unavailable
24
Bracket, Reverse, Support
5245180
Unavailable
25
Pin, Cotter
7661010
$1.49
25
Pin, Cotter
7661010
$1.49
26
Arm, Reverse
5433871
Unavailable
27
Bushing
5433647
Unavailable
28
Spring, Compression
7041995
Unavailable
29
Plunger
5433673
Unavailable
30
Bracket, Reverse Plate, Rear
5245634
Unavailable
31
Rivet
7661041
Unavailable
32
Bracket, Reverse Plate, Forward
5245635
Unavailable
33
Handle, Reverse
5433605-070
Unavailable
34
Cable, Reverse
7080899
Unavailable
34
Cable, Reverse
7080899
Unavailable
35
Conduit
4010051-100
$13.75
36
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
$2.41
37
Nut, Jam
7542528
Unavailable
37
Nut, Jam
7542528
Unavailable
38
Washer
7556232
Unavailable
38
Washer
7556232
Unavailable
39
Washer, Lock
7571625
Unavailable
40
Seal, Rod
5411818
Unavailable
41
Seal, Rod
5412206
Unavailable
42
Nut
7542150
Unavailable
43
Rod End
7061062
Unavailable
44
Washer, Flat
7555839
Unavailable
44
Washer, Flat
7555839
Unavailable
45
Gate, Reverse, Directional
5434049
Unavailable
46
Pin, Clevis
7661117
Unavailable
47
Washer
7555866
Unavailable
48
Collar
5020683
Unavailable
49
Washer, Flat
7555874
$2.39
50
Screw
7515368
Unavailable
51
Bracket, Reverse Stop
5434272
Unavailable
