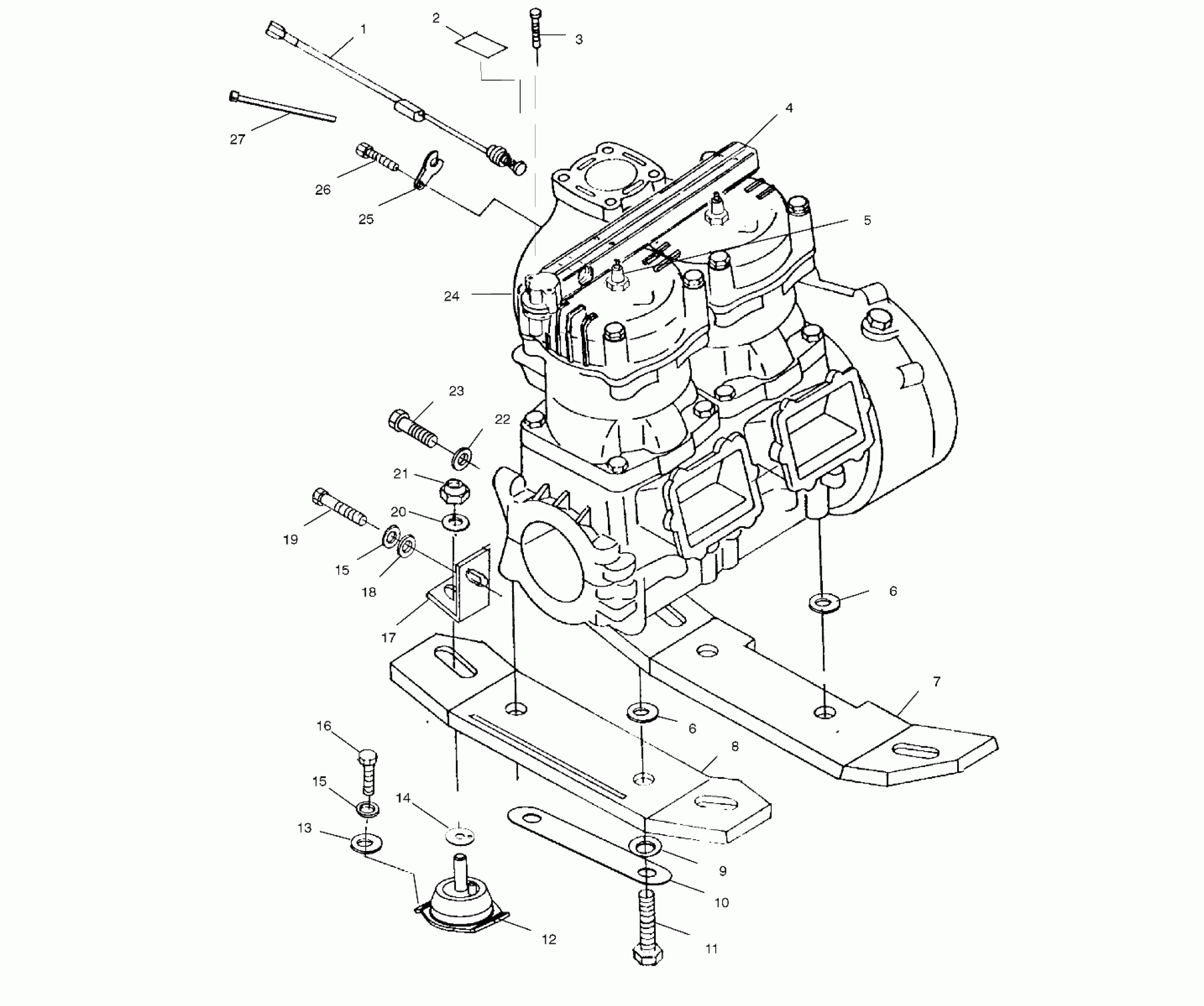

Polaris VIRAGE I - W025101D ENGINE MOUNTING - W025101C/W025101D/W025101I (4971387138B06) Diagram

#

Description
Price

1

Sensor, Water Temperature

2410125

Unavailable

2

Decal, Spark Plug

7077026

$2.94

3

Screw

7515149

Unavailable

4

DECAL, WARNING [See Cylinder and Manifold Pg. C4, Ref. 3]

----

Unavailable

5

SPARK PLUG, NGK BPR8ES [See Cylinder and Manifold Pg. C4, Ref. 25]

----

Unavailable

6

Washer, Flat

7556184

$3.81

6

Washer, Flat

7556184

$3.81

7

Plate, Front Mount

5631166-329

$139.68

8

Plate, Rear Mount

5631167-329

Unavailable

9

Washer, Flat

7556170

Unavailable

10

Lock, Plate

5245460

$13.10

11

Screw

7517330

Unavailable

12

Mount, Engine

3021254

$73.81

13

Washer

7555866

Unavailable

14

Shim, Engine Mount

5211727

Unavailable

15

Washer, Lock

7552610

Unavailable

15

Washer, Lock

7552610

Unavailable

16

Screw

7517627

Unavailable

17

Bracket, Rear Muffler

1060142

$53.17

18

Washer, Flat

7555835

$0.69

19

Screw

7515357

Unavailable

20

Washer, Flat

7555848

Unavailable

21

Nut, Nylok

7542725

$3.59

22

Washer, Lock

7556055

Unavailable

23

Bolt

7517497

$3.97

24

Kit, Short Block NOTE: The Short Block assembly contains a crankcase assembly, cylinder, and cylinder head assembly.

2201843

Unavailable

25

Clip, Retainer

5244176

$4.76

26

BOLT

7516603

$10.32

27

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
