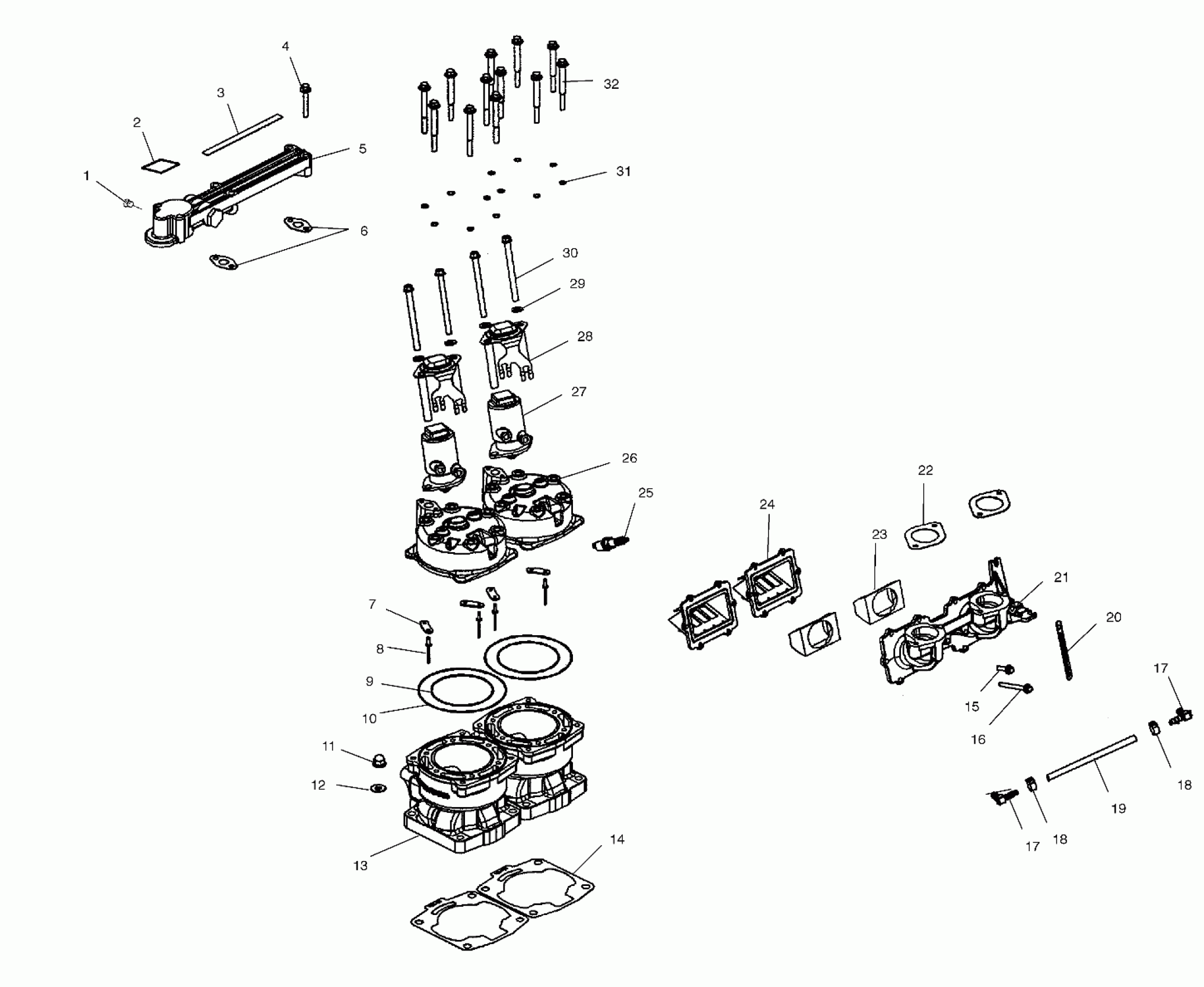

Polaris VIRAGE I - W025101D CYLINDER and MANIFOLD - W025101C/W025101D/W025101I (4971387138C04) Diagram

#

Description
Price

1

Plug, Pipe

7051527

Unavailable

2

Decal, Spark Plug

7077026

$2.95

3

Decal, Warning

7075383

Unavailable

4

Screw

7516806

Unavailable

5

Manifold, Outlet, Water

1202061-067

Unavailable

6

Gasket, Water, Manifold

5830061

Unavailable

7

Restrictor

5244008

Unavailable

8

Rivet

7661072

Unavailable

9

O-Ring

5411573

Unavailable

10

O-Ring

5410931

Unavailable

11

NUT

7547021

$6.99

12

Washer, Flat

7556222

Unavailable

13

Cylinder

3021286

Unavailable

14

Gasket, Cylinder Base

5811784

$8.89

15

Screw

7516807

Unavailable

16

Screw

7516814

Unavailable

17

Fitting

7052156

$30.00

17

Fitting

7052156

$30.00

18

Clamp Hose, Oetiker

7080830

Unavailable

18

Clamp Hose, Oetiker

7080830

Unavailable

19

Line

8450085-100

Unavailable

20

Retainer

7080654

$18.32

21

Manifold, Intake

1202380-329

Unavailable

22

Gasket, Carb

5830043

Unavailable

23

Stuffer, Reed Block

5433151

Unavailable

24

Asm., Valve, Reed

1201825

$134.99

25

Spark Plug, NGK PZFR6H

3070189

Unavailable

26

Head, Cylinder

3021205-244

Unavailable

27

Injector

1253375

Unavailable

28

Cap

1202086

Unavailable

29

Washer, Flat

7555835

Unavailable

30

Screw

7517832

Unavailable

31

O-RING

5411876

Unavailable

32

Screw

7516721

Unavailable
