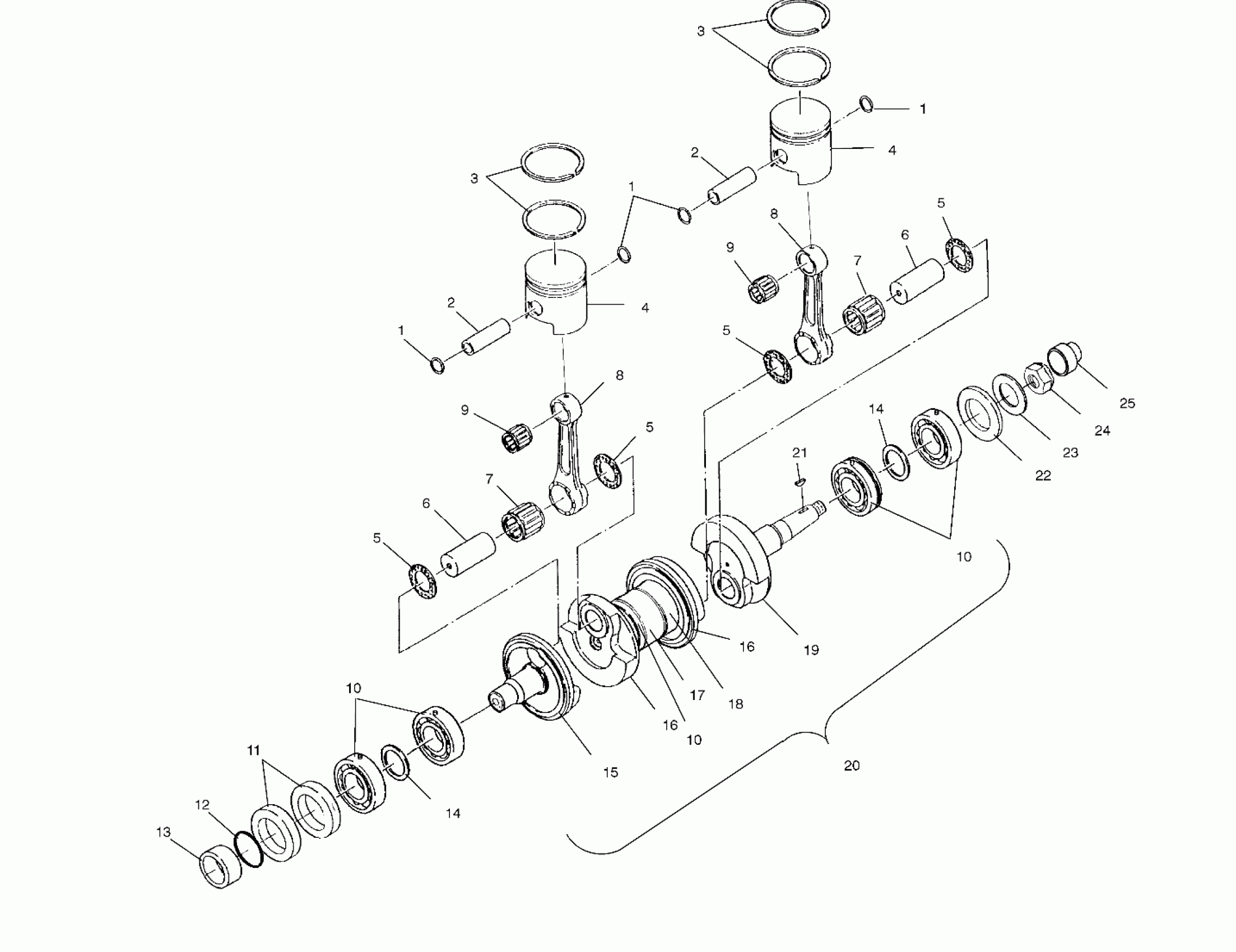

Polaris VIRAGE I - W025101D CRANKSHAFT and PISTON - W025101C/W025101D/W025101I (4971387138C05) Diagram

#

Description
Price

1

Circlip, Piston

3022950

Unavailable

1

Circlip, Piston

3022950

Unavailable

1

Circlip, Piston

3022950

Unavailable

2

Pin, Piston

3021091

Unavailable

2

Pin, Piston

3021091

Unavailable

3

Kit, Piston Rings [Std.][2 Rings]

2201449

Unavailable

3

Kit, Piston Rings [.25mm OS]

2201450

Unavailable

3

Kit, Piston Rings [.50 mm OS]

2201451

Unavailable

3

Kit, Piston Rings [Std.][2 Rings]

2201449

Unavailable

3

Kit, Piston Rings [.25mm OS]

2201450

Unavailable

3

Kit, Piston Rings [.50 mm OS]

2201451

Unavailable

4

Kit, Piston Asm. [Std.][Incl.1,2,3]

2201706

Unavailable

4

Kit, Piston Asm. [.25 mm OS][Incl.1,2,3]

2201707

Unavailable

4

Kit, Piston Asm. [.50 mm OS][Incl.1,2,3]

2201708

Unavailable

4

Kit, Piston Asm. [Std.][Incl.1,2,3]

2201706

Unavailable

4

Kit, Piston Asm. [.25 mm OS][Incl.1,2,3]

2201707

Unavailable

4

Kit, Piston Asm. [.50 mm OS][Incl.1,2,3]

2201708

Unavailable

5

Washer, Thrust

-------

Unavailable

5

Washer, Thrust

-------

Unavailable

5

Washer, Thrust

-------

Unavailable

5

Washer, Thrust

-------

Unavailable

6

PIN, CRANKSHAFT

-------

Unavailable

6

PIN, CRANKSHAFT

-------

Unavailable

7

BEARING, CONNECTING ROD

-------

Unavailable

7

BEARING, CONNECTING ROD

-------

Unavailable

8

Kit, Connecting Rod Assembly [Incl. 5-7]

2201445

Unavailable

8

Kit, Connecting Rod Assembly [Incl. 5-7]

2201445

Unavailable

9

BEARING, CONNECTING ROD

3552112

Unavailable

9

BEARING, CONNECTING ROD

3552112

Unavailable

10

Bearing, Ball

3585503

$31.99

10

Bearing, Ball

3585503

$31.99

10

Bearing, Ball

3585503

$31.99

11

Seal

5411937

Unavailable

12

O-RING

5410613

$1.99

13

Collar, Crankshaft

5131195

Unavailable

14

Bushing

7555905

$3.99

14

Bushing

7555905

$3.99

15

Crankweb, PTO

5132546

Unavailable

16

Crankweb, Center

5132545

Unavailable

16

Crankweb, Center

5132545

Unavailable

17

Labyrinth

5131086

Unavailable

18

Bearing

3514318

$43.99

19

Crankweb, Mag.

5132543

Unavailable

20

Kit, Crankshaft [Incl. 10,14-19,21]

2201844

Unavailable

21

KEY, WOODRUFF

7721117

$24.99

22

Seal

3610044

$24.27

23

WASHER [See Magneto Pg. C8, Ref. 9]

-------

Unavailable

24

NUT, PUMP DRIVE [See Magneto Pg. C8, Ref. 8]

-------

Unavailable

25

Coupler

5432576

Unavailable
