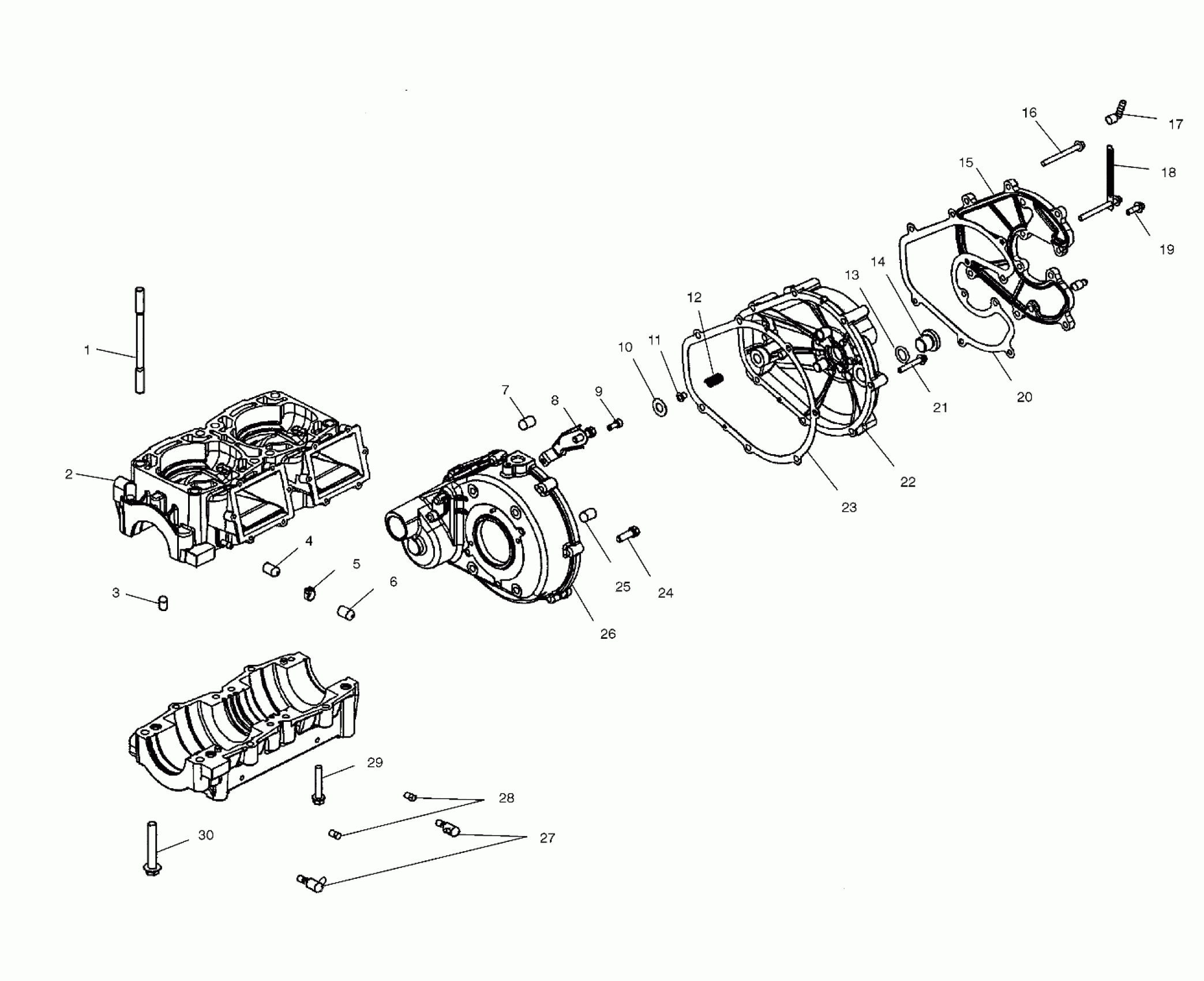

Polaris VIRAGE I - W025101D CRANKCASE - W025101C/W025101D/W025101I (4971387138C03) Diagram

#

Description
Price

1

Stud, Cylinder Flange

5131677

Unavailable

2

Kit, Asm., Crankcase [Incl. 1-4,29-30]

2202189

Unavailable

3

PIN-DOWEL,M8 X 16 SS

7663001

$11.19

4

Fitting

7052145

$9.59

5

Clamp, Hose, Oetiker

7080830

Unavailable

6

Cap

5411736

Unavailable

7

Bushing

3514378

$12.39

8

Clamp, Stator Wires

5243231

Unavailable

9

SCREW

7517431

$5.59

10

Bushing

3569806

Unavailable

11

Bushing

3574214

Unavailable

12

Spring

7041457

Unavailable

13

O-Ring

5411564

$4.03

14

Plug

5433820

$20.22

15

Cover, Water Jacket

5630981-329

Unavailable

16

Screw

7517662

Unavailable

17

Fitting

7052156

$30.00

18

Retainer

7080654

$18.32

19

Screw

7516809

Unavailable

20

Gasket, Water Jacket

5812011

Unavailable

21

Screw

7516806

Unavailable

22

Asm., Flywheel Cover [Incl. 10]

1201911

Unavailable

23

Gasket, Flywheel Cover

5811550

Unavailable

24

Screw

7516723

Unavailable

25

Pin, Dowel

7663002

$4.79

26

Asm., Flywheel Housing [Incl. 7,25]

1202023

Unavailable

27

VALVE-CHECK,90,1/8"7MM BORE

7051020

$32.37

28

Plug

7051529

$15.99

29

Screw

7516725

Unavailable

30

Screw

7516913

Unavailable
