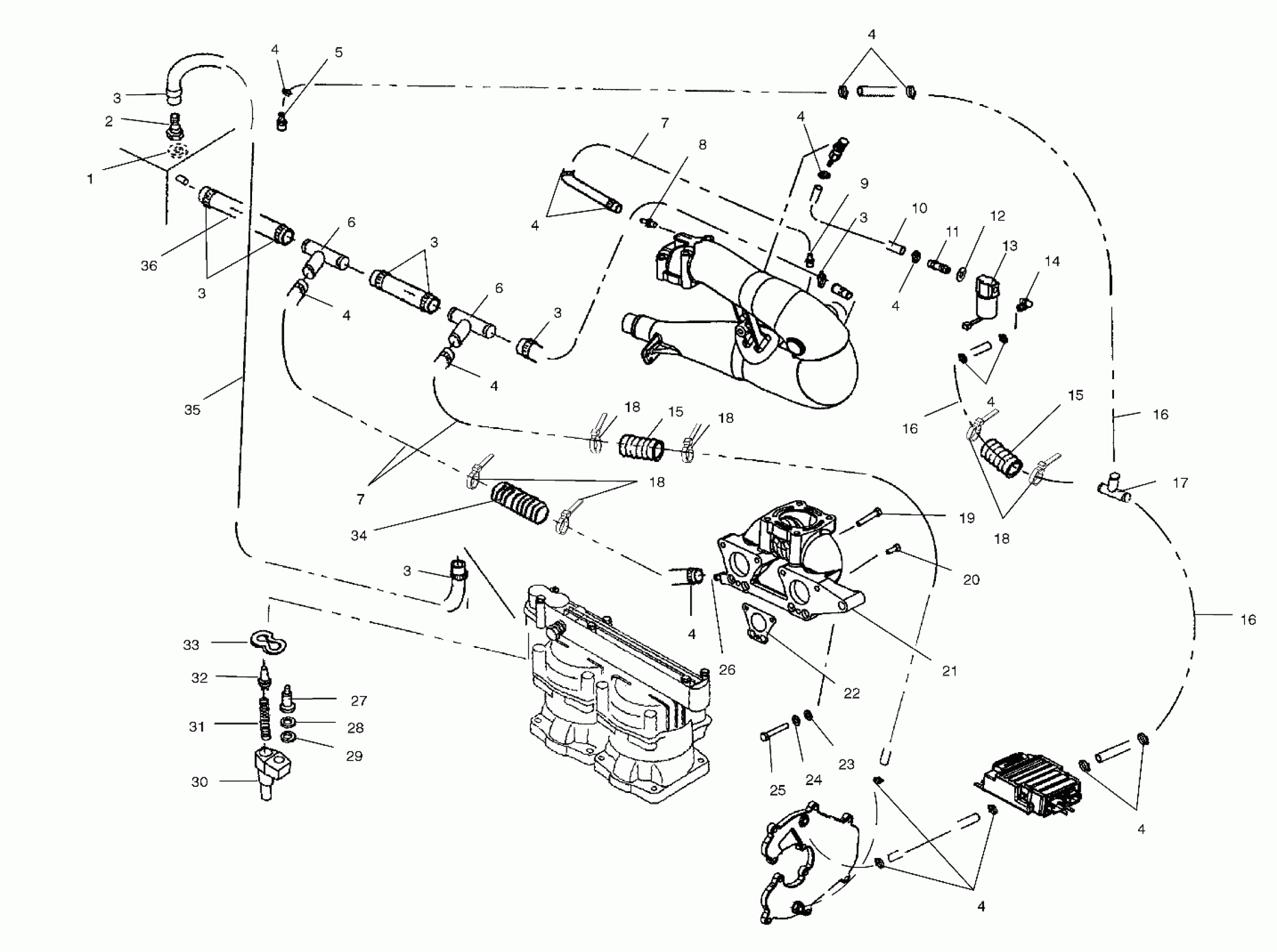

Polaris VIRAGE I - W025101D COOLING SYSTEM - W025101C/W025101D/W025101I (4971387138B08) Diagram

#

Description
Price

1

Gasket

5811317

$0.87

2

Fitting, Thru-Hull

5431444-133

Unavailable

3

Clamp, Hose

7080475

Unavailable

3

Clamp, Hose

7080475

Unavailable

3

Clamp, Hose

7080475

Unavailable

3

Clamp, Hose

7080475

Unavailable

3

Clamp, Hose

7080475

Unavailable

3

Clamp, Hose

7080475

Unavailable

4

Clamp, Hose

7080476

$6.35

4

Clamp, Hose

7080476

$6.35

4

Clamp, Hose

7080476

$6.35

4

Clamp, Hose

7080476

$6.35

4

Clamp, Hose

7080476

$6.35

4

Clamp, Hose

7080476

$6.35

4

Clamp, Hose

7080476

$6.35

4

Clamp, Hose

7080476

$6.35

4

Clamp, Hose

7080476

$6.35

4

Clamp, Hose

7080476

$6.35

4

Clamp, Hose

7080476

$6.35

5

FITTING [See Exhaust System Pg. B5, Ref. 27]

----

Unavailable

6

Fitting, Tee

5431784

Unavailable

6

Fitting, Tee

5431784

Unavailable

7

Hose, Water

8450054-100

Unavailable

7

Hose, Water

8450054-100

Unavailable

8

Fitting, Screen, Exhaust

7052128

Unavailable

9

Fitting, Injector, Exhaust

5020747

$5.56

10

Hose, Blue

8450102

$15.56

11

Fitting

7052135

$9.52

12

Washer, Flat

7555841

Unavailable

13

Valve, Solenoid

4010768

Unavailable

14

Fitting

7052065

$7.14

15

Conduit, Flex

5521398-52

$5.71

15

Conduit, Flex

5521398-52

$5.71

16

Line

8450046-100

Unavailable

16

Line

8450046-100

Unavailable

17

T-Fitting

7052075

$9.52

18

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

18

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

18

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

18

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

18

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

19

Screw

7516727

Unavailable

20

Screw

7516725

Unavailable

21

Asm., Exhaust Manifold

1260694-329

Unavailable

22

Gasket, Exhaust

5811045

Unavailable

23

Washer, Flat

7555856

$3.19

24

Washer, Lock

7552611

Unavailable

25

Screw

7517004

Unavailable

26

Fitting, Drain Exhaust

5020746

Unavailable

27

Thermostat, 143 Degrees F.

7051008

Unavailable

28

Gasket, Thermostat

5412014

Unavailable

29

Washer

7556174

Unavailable

30

Cover, Thermostat, Machined

5631136

Unavailable

31

Spring, Compression

7041310

$1.83

32

Valve, Pop-Off

5432799

$4.92

33

Seal, Thermostat Housing

5410860

Unavailable

34

Conduit, Flex

5521398-13

$5.71

35

Hose, Water Out

5411479

Unavailable

36

Hose, Inlet

5411050

Unavailable
