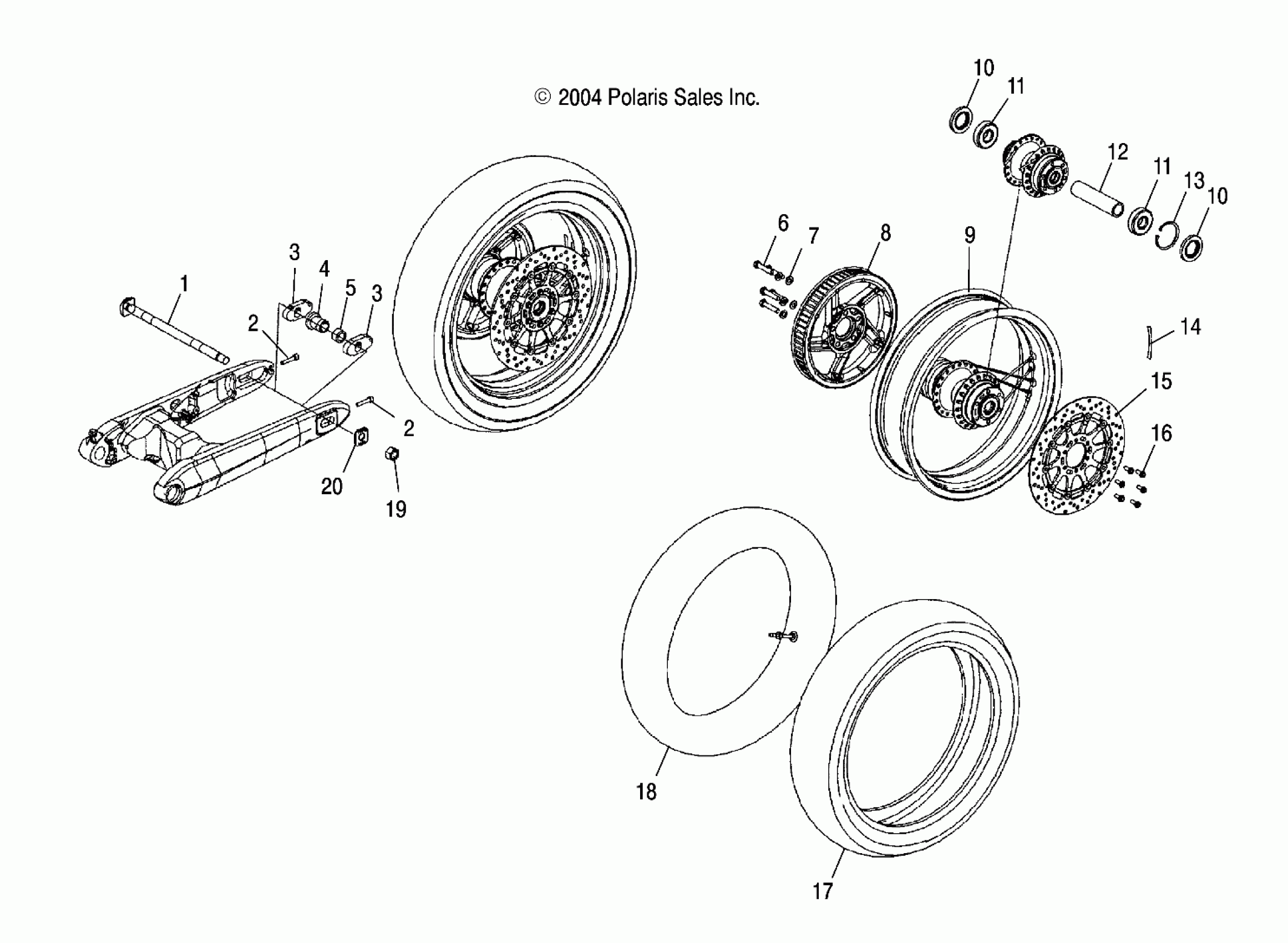

Polaris VICTORY VEGAS ALL OPTIONS - V05AB16/EC16/GB16 WHEELS, REAR (SPOKED) - V05AB16/EC16/GB16ALL OPTIONS (4996239623B04) Diagram

#

Description
Price

1

Shaft, Spindle, Wheel, Rear

1013926

Unavailable

2

SCREW

7518178

Unavailable

2

SCREW

7518178

Unavailable

3

Mount, Axle Adjustment

5133481

$27.94

3

Mount, Axle Adjustment

5133481

$27.94

4

Spacer, RH

5631480

$5.79

5

SPACER, BEARING, LH

5631479

Unavailable

6

Screw

7518044

$6.19

7

WASHER, FLAT

7556234

$3.19

8

Asm., Sprocket, 64T

1341448

Unavailable

8

Asm., Sprocket, 64T, Blk [Eight Ball]

1332293-266

Unavailable

8

Asm., Sprocket, 64T, Silver [NSS]

1332293-339

$405.99

9

Nipple, Spoke

5132870

Unavailable

9

Rim

5133677

Unavailable

9

Flap, Rim

5812233

$13.10

9

Spoke, Outer

5334021

Unavailable

9

Spoke, Inner

5334023

Unavailable

9

Asm., Wheel [Incl. 10-14][Vegas]

1520615

$713.99

10

SEAL

3610094

Unavailable

10

SEAL

3610094

Unavailable

11

BEARING, BALL

3514405

Unavailable

11

BEARING, BALL

3514405

Unavailable

12

Spacer, Bearing

5334138

Unavailable

13

Ring, Retaining

7710526

Unavailable

14

Weight, Balance

1520618

Unavailable

15

Rotor, Brake

1910623

Unavailable

16

Screw

7518297

Unavailable

17

Tire, Rear

5412373

Unavailable

18

Tube, Tire, Inner

1821398

$46.84

19

Nut, Hex

7547266

Unavailable

20

Washer, Indicator, Axle

5245087-236

$15.70
