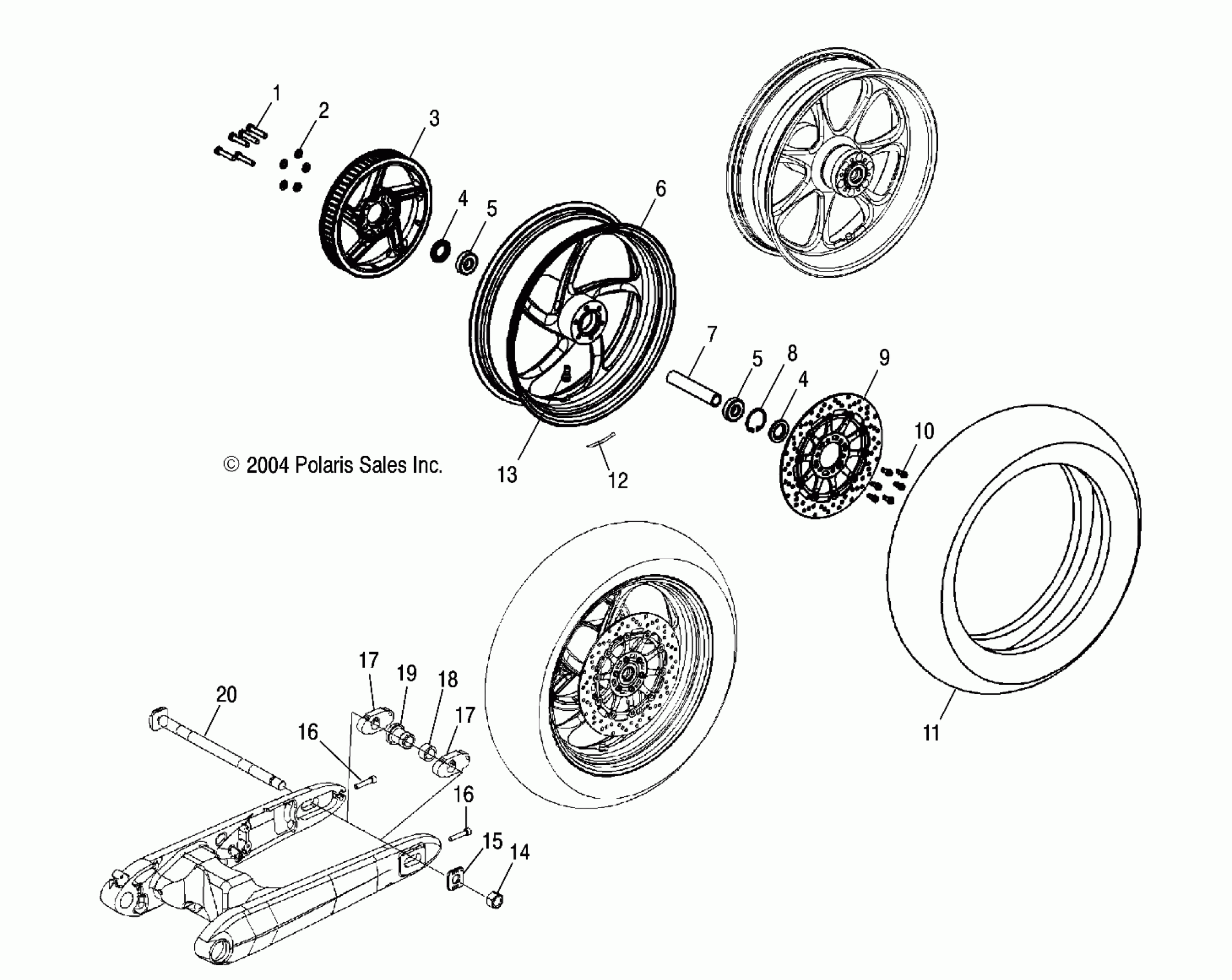

Polaris VICTORY VEGAS ALL OPTIONS - V05AB16/EC16/GB16 WHEELS, REAR (BILLET) - V05AB16/EC16/GB16ALL OPTIONS (4996239623B05) Diagram

#

Description
Price

1

Screw

7518044

$6.19

2

WASHER, FLAT

7556234

$3.17

3

Asm., Sprocket, 64T, Blk [Eight Ball]

1332293-266

Unavailable

3

Asm., Sprocket, 64T, Silver [NSS]

1332293-339

$405.99

4

SEAL

3610094

$31.75

4

SEAL

3610094

$31.75

5

BEARING, BALL

3514405

$19.84

5

BEARING, BALL

3514405

$19.84

6

Asm., Wheel, Billet, Rear [Vegas] [Incl. 4-8,12,13]

1520664

$531.75

6

Asm., Wheel, Billet, Rear, [NSS] [Incl. 4-8,12,13]

1520807

Unavailable

7

Spacer

5334138

$61.89

8

Ring, Retaining

7710526

$10.32

9

Rotor, Brake, Floating

1910623

$349.99

10

Screw

7518297

$5.56

11

Tire, Rear

5412373

$319.99

12

Weight, Balance

1520618

Unavailable

13

Valve, Rim

1520232

$3.17

14

Nut, Hex

7547266

$23.81

15

Washer, Indicator, Axle

5245087-236

$15.70

16

SCREW

7518178

$7.14

16

SCREW

7518178

$7.14

17

Mount, Axle, Adjustment

5133481

$27.94

17

Mount, Axle, Adjustment

5133481

$27.94

18

SPACER, BEARING, LH

5631479

$3.97

19

Spacer, RH

5631480

$5.79

20

Shaft, Spindle, Wheel, Rear

1013926

Unavailable
