Partiron

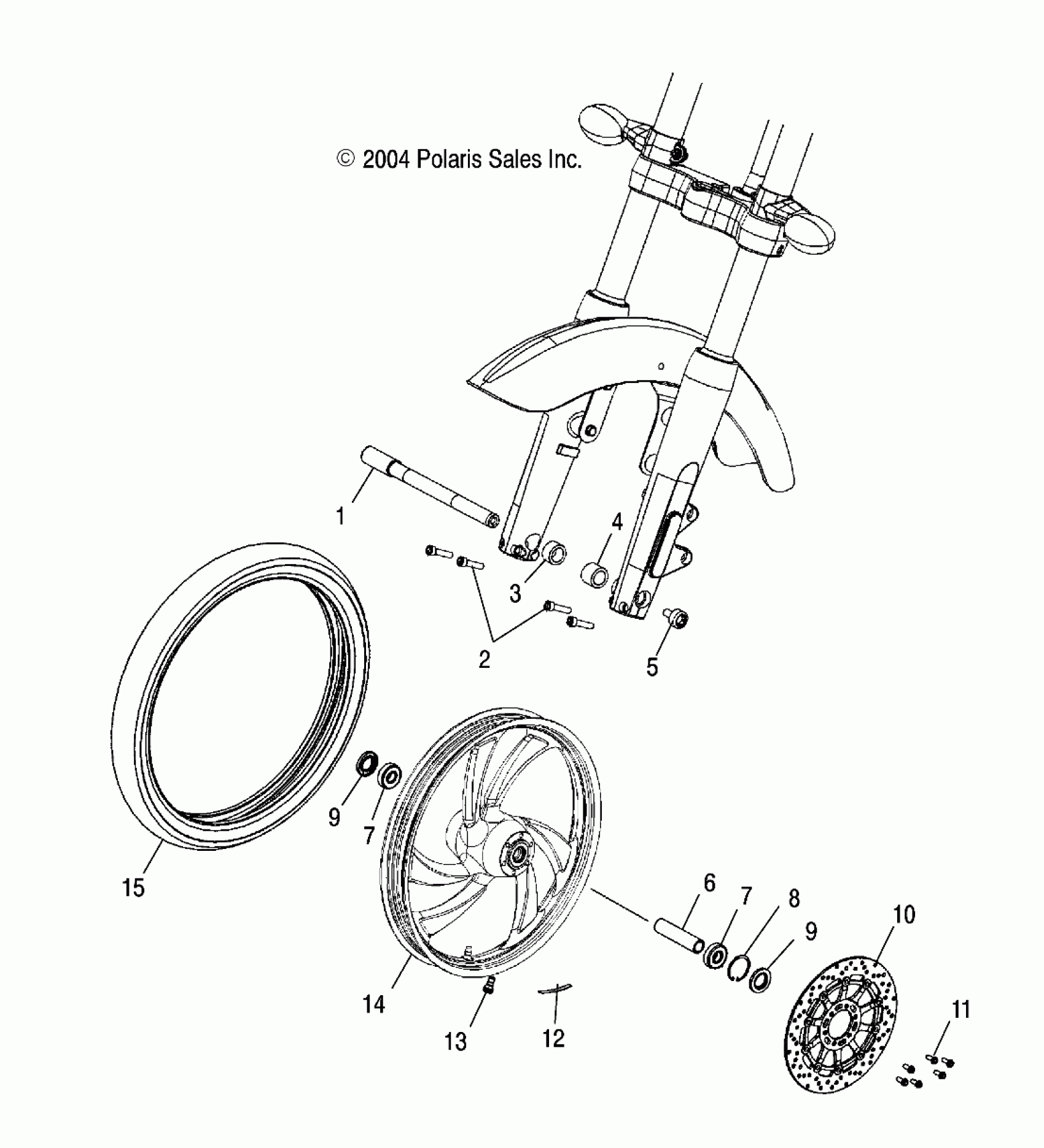

Polaris VICTORY VEGAS ALL OPTIONS - V05AB16/EC16/GB16 WHEELS, FRONT (CAST) - V05AB16/EC16/GB16ALL OPTIONS (4996239623B03) Diagram

#

Description
Price

1

Axle, Front

5133593

$222.60

2

SCREW

7517517

Unavailable

3

SPACER, BEARING, LH

5631479

$3.97

4

SPACER, BEARING, LH

5631481

$4.76

5

SCREW

7517936

$39.99

6

Spacer

5334135

$29.99

7

BEARING, BALL

3514405

$19.84

7

BEARING, BALL

3514405

$19.84

8

Ring, Retaining

7710526

$10.32

9

SEAL

3610094

$31.75

9

SEAL

3610094

$31.75

10

Rotor, Brake

1910623

$349.99

11

Screw

7518297

$5.56

12

Weight, Balance

1520618

Unavailable

13

Valve, Rim

1520232

$3.17

14

Asm., Wheel, Front [Incl. 6-9,13][Vegas, EB]

1520684

$815.53

15

Tire, Front

5412263

Unavailable
