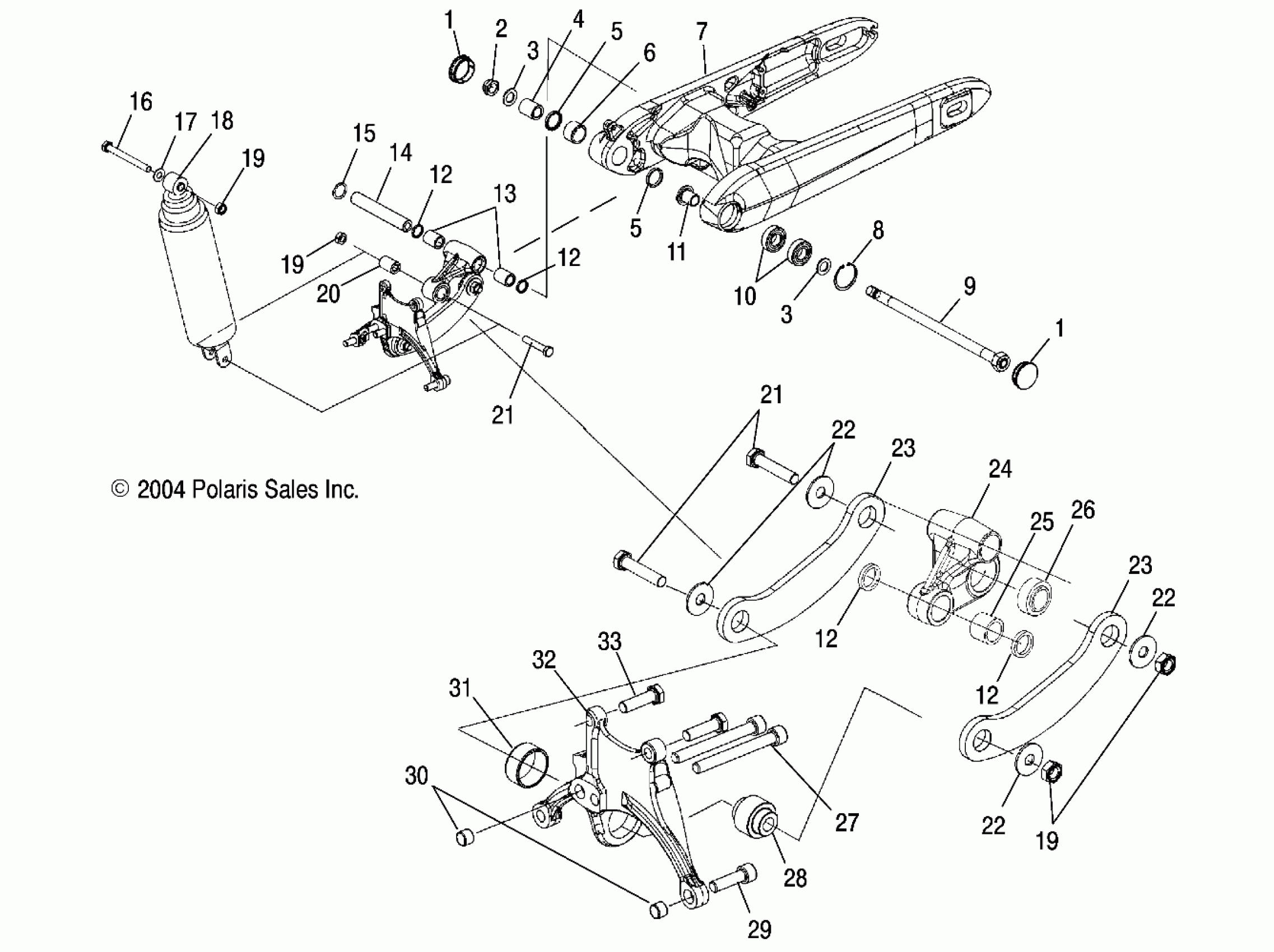

Polaris VICTORY VEGAS ALL OPTIONS - V05AB16/EC16/GB16 SUSPENSION, REAR and SWING ARM - V05AB16/EC16/GB16ALL OPTIONS (4996239623A04) Diagram

#

Description
Price

1

Cap

5434637

Unavailable

1

Cap

5434637

Unavailable

2

Nut, FLEXLOC

7547048

Unavailable

3

WASHER, FLAT

7556236

Unavailable

3

WASHER, FLAT

7556236

Unavailable

4

Bushing

5133475

Unavailable

5

SEAL

3610096

Unavailable

5

SEAL

3610096

Unavailable

6

BEARING

3514413

Unavailable

7

Asm., Swing Arm w/Bearings, Silver

1014408-385

$989.99

7

Asm., Swing Arm w/Bearings, Chrome

1014408-156

$989.99

7

Asm., Swing Arm w/Bearings, Black [Eight Ball]

1014408-266

$819.99

8

RING, RETAINING

7670149

Unavailable

9

Shaft, Swing Arm Pivot

1013916

$55.56

10

BEARING, BALL

3514414

Unavailable

11

BUSHING

5631478

Unavailable

12

SEAL

3610095

Unavailable

12

SEAL

3610095

Unavailable

12

SEAL

3610095

Unavailable

12

SEAL

3610095

Unavailable

13

BEARING, NEEDLE

3514411

Unavailable

14

BUSHING

5134101

Unavailable

15

RING, RETAINING

7710544

Unavailable

16

SCREW

7518206

Unavailable

17

Washer, Flat

7556155

$5.22

18

ASM., SHOCK [SEE REAR SHOCK PG. B13 FOR DETAILS]

-------

Unavailable

19

NUT, NYLOK

7547268

$1.49

19

NUT, NYLOK

7547268

$1.49

19

NUT, NYLOK

7547268

$1.49

20

Bushing, Suspension, Short

5133473

Unavailable

21

SCREW

7517946

Unavailable

21

SCREW

7517946

Unavailable

22

Washer, Flat

7556260

Unavailable

22

Washer, Flat

7556260

Unavailable

22

Washer, Flat

7556260

Unavailable

23

Link, Suspension Strap

5247519

$55.56

23

Link, Suspension Strap

5247519

$55.56

24

Asm., Rocker w/Bearings [Incl. 12,13,25,26]

1014865

Unavailable

25

BEARING, NEEDLE

3514412

Unavailable

26

BEARING, SPHERICAL

3514439

Unavailable

27

SCREW

7518202

Unavailable

28

Bushing, Suspension, Plain Bearing

5134096

Unavailable

29

SCR-SH-M10X1.5X35 8.8 ZPD D204

7518032

Unavailable

30

DOWEL

7663008

$5.27

31

BEARING

3514459

Unavailable

32

Mount, Minor Pivot

5134079-067

$298.99

33

SCREW

7517827

$6.39
