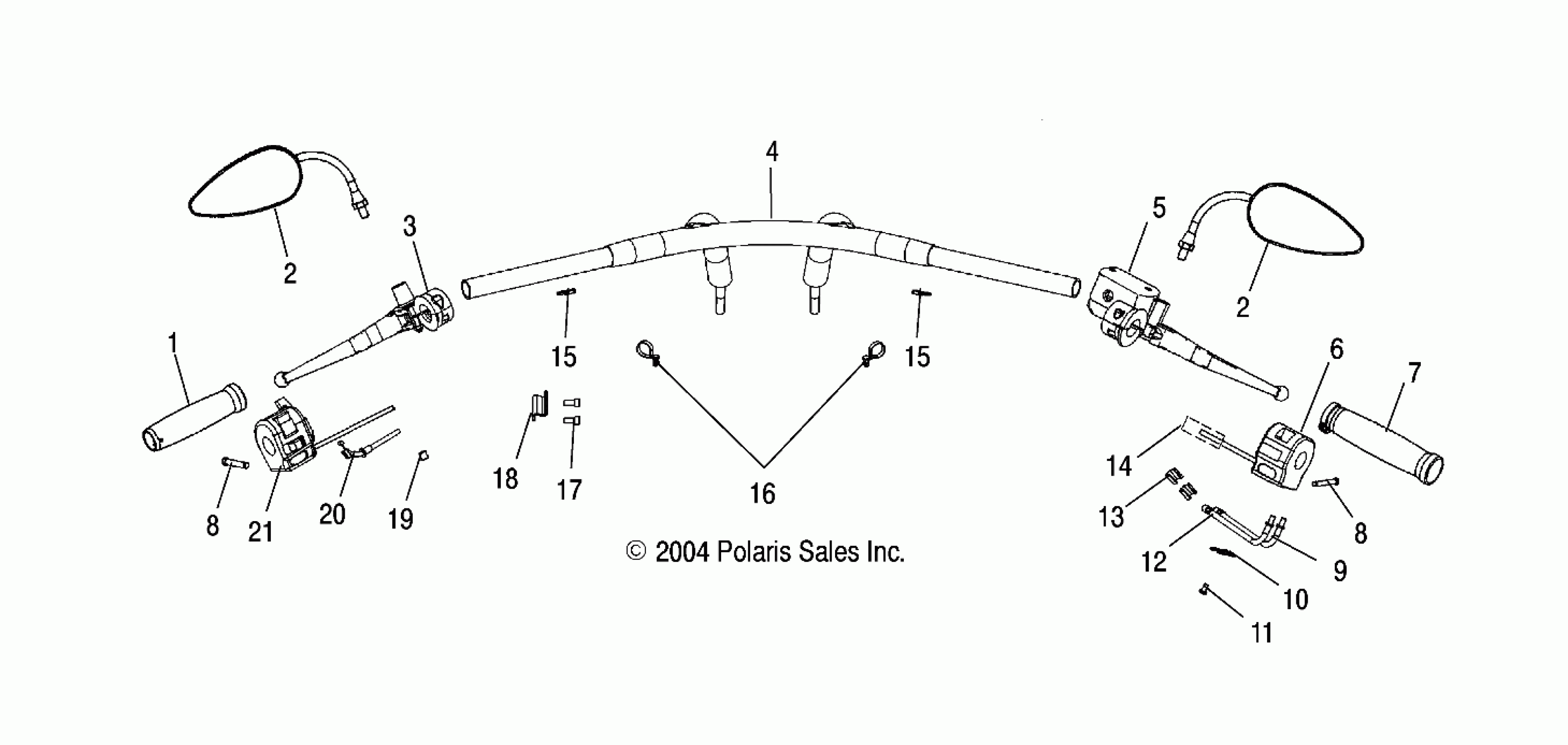

Polaris VICTORY VEGAS ALL OPTIONS - V05AB16/EC16/GB16 STEERING, HANDLEBAR (NSS) - V05EC16DU/LU (4996239623A09) Diagram

Description

Price

Asm., Throttle Cable [Incl. 9,12,13]

2010224

Unavailable

Grip, Billet Twister, LH

5134183

$77.99

Mirror, Teardrop, LH

2632945

$87.29

Mirror, Teardrop, RH

2632946

Unavailable

Mirror, Teardrop, LH

2632945

$87.29

Mirror, Teardrop, RH

2632946

Unavailable

ASM., CLUTCH LEVER [See Clutch Lever Asm. Pg. B14 for Details]

-------

Unavailable

Kit, Handlebar, Ness

2875165

Unavailable

ASM., MASTER CYLINDER, FRONT BRAKE [SEE FRONT BRAKE PG. B10, REF. 3]

-------

Unavailable

Switch, Cube, Chrome, RH

4011082-156

$406.65

Grip, Billet Twister, RH

5134184

$70.79

Screw

7517366

Unavailable

Screw

7517366

Unavailable

Cable, Throttle, Pull

7081201

Unavailable

Retainer, Throttle Cable

5242448

Unavailable

SCREW

7517420

Unavailable

Cable, Throttle, Push

7081200

$134.99

CLIP, THROTTLE CABLE

5433039

Unavailable

Shrink, Heat

5521655

$7.19

Clip

7670102

$2.39

Clip

7670102

$2.39

STRAP, RETAINER

7081115

Unavailable

SCREW

7517272

$7.19

Bracket, Clutch Cable

5246529

$6.59

Bushing, Clutch Cable, Upper

5433071

Unavailable

Cable, Fast Idle

7081202

Unavailable

Switch, LH Control, Chrome

4011045-156

$285.70
