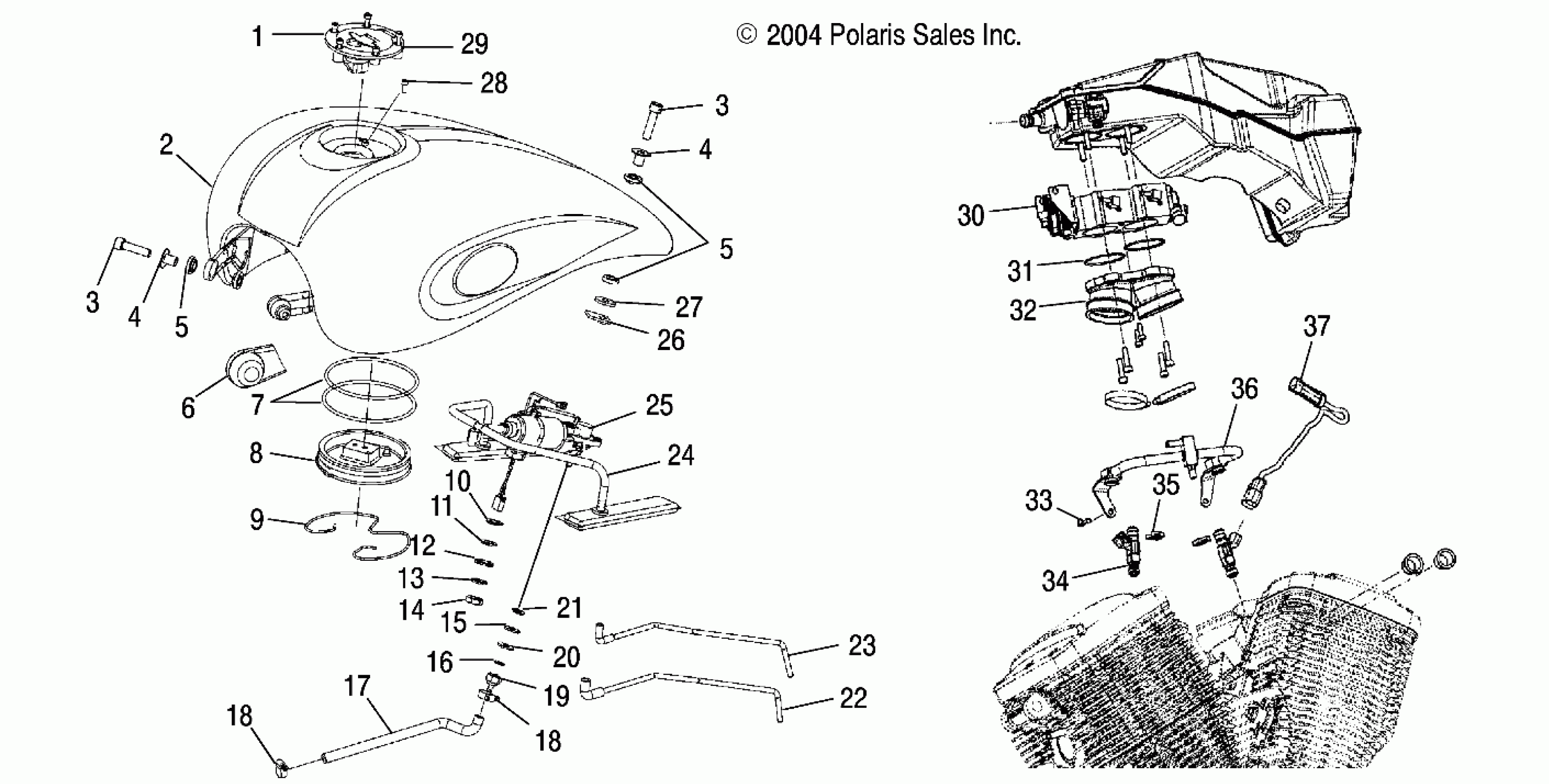

Polaris VICTORY VEGAS ALL OPTIONS - V05AB16/EC16/GB16 FUEL SYSTEM, FUEL TANK, LINES and THROTTLE BODY - V05AB16/EC16/GB16ALL OPTIONS (4996239623A13) Diagram

#

Description
Price

1

SCREW

7518086

$5.59

2

Tank, Fuel, Spine, Black

1014754-266

Unavailable

2

Tank, Fuel, Spine, Blue

1014754-341

Unavailable

2

Tank, Fuel, Spine, Red

1014754-342

Unavailable

2

Tank, Fuel, Spine, Yellow

1014754-388

Unavailable

2

Tank, Fuel, Spine, Blue/Silver

1014754-1179

$1,404.99

2

Tank, Fuel, Spine, White/Silver

1014754-1187

Unavailable

2

Tank, Fuel, Spine, Red/Tri Fade

1014754-1188

Unavailable

2

Tank, Fuel, Spine, Black/Flames

1014754-1189

Unavailable

2

Tank, Fuel, Spine, Black/Blue

1014754-1200

Unavailable

3

SCREW

7517525

$3.99

3

SCREW

7517525

$3.99

4

Bushing

5134160

$10.99

4

Bushing

5134160

$10.99

5

Bushing, Flange

5412480

Unavailable

5

Bushing, Flange

5412480

Unavailable

6

COVER, MOUNT, LH

5412414

Unavailable

6

COVER, MOUNT, RH

5412415

$27.99

7

O-Ring

5412071

Unavailable

8

Plug

5133613

Unavailable

9

Ring, Retaining

7710515

Unavailable

10

Grommet

5412096

Unavailable

11

Grommet

5412095

Unavailable

12

Washer

7556193

Unavailable

13

Washer

7556192

Unavailable

14

Nut

7547186

$4.76

15

Grommet

5412093

Unavailable

16

O-Ring

5411869

Unavailable

17

Hose

5412332

Unavailable

18

CLAMP, HOSE

7081151

Unavailable

18

CLAMP, HOSE

7081151

Unavailable

19

Fitting

2520251

Unavailable

20

Washer

7556131

$3.17

21

Grommet

5412094

Unavailable

22

Line

5434782

$83.33

23

Line, Water Vent

5434781

$35.24

24

Asm., Fuel Line, Filter

2520322

Unavailable

25

Pump, Fuel

2520394

Unavailable

25

Thermistor, Fuel Pump [Level Sensor]

2520678

Unavailable

26

U-NUT

7547233

Unavailable

27

Washer, Flat

7556260

Unavailable

28

SCREW

7517845

Unavailable

29

ASM., IGNITION SWITCH/FUEL CAP [SEE IGNITION ASM. PG. C6, REF. 5]

-------

Unavailable

30

Asm., Throttle Body

1253363

$519.99

30

Cap, Fitting

5411886

$8.89

31

O-Ring

5412259

Unavailable

32

Adapter, Throttle Body

1253335

Unavailable

33

SCREW

7517405

$10.39

34

O-RING-BOSCH,EV-14,UPPER, BLUE

1500198

$11.99

34

Injector, Fuel

1253405

Unavailable

35

Clip, Injector Clocking

7670129

Unavailable

36

Asm., Fuel Rail

2520207

Unavailable

37

HARNESS, JUMPER, FUEL INJECTOR [SEE ELECTRICAL PG. C5, REF. 23]

-------

Unavailable
