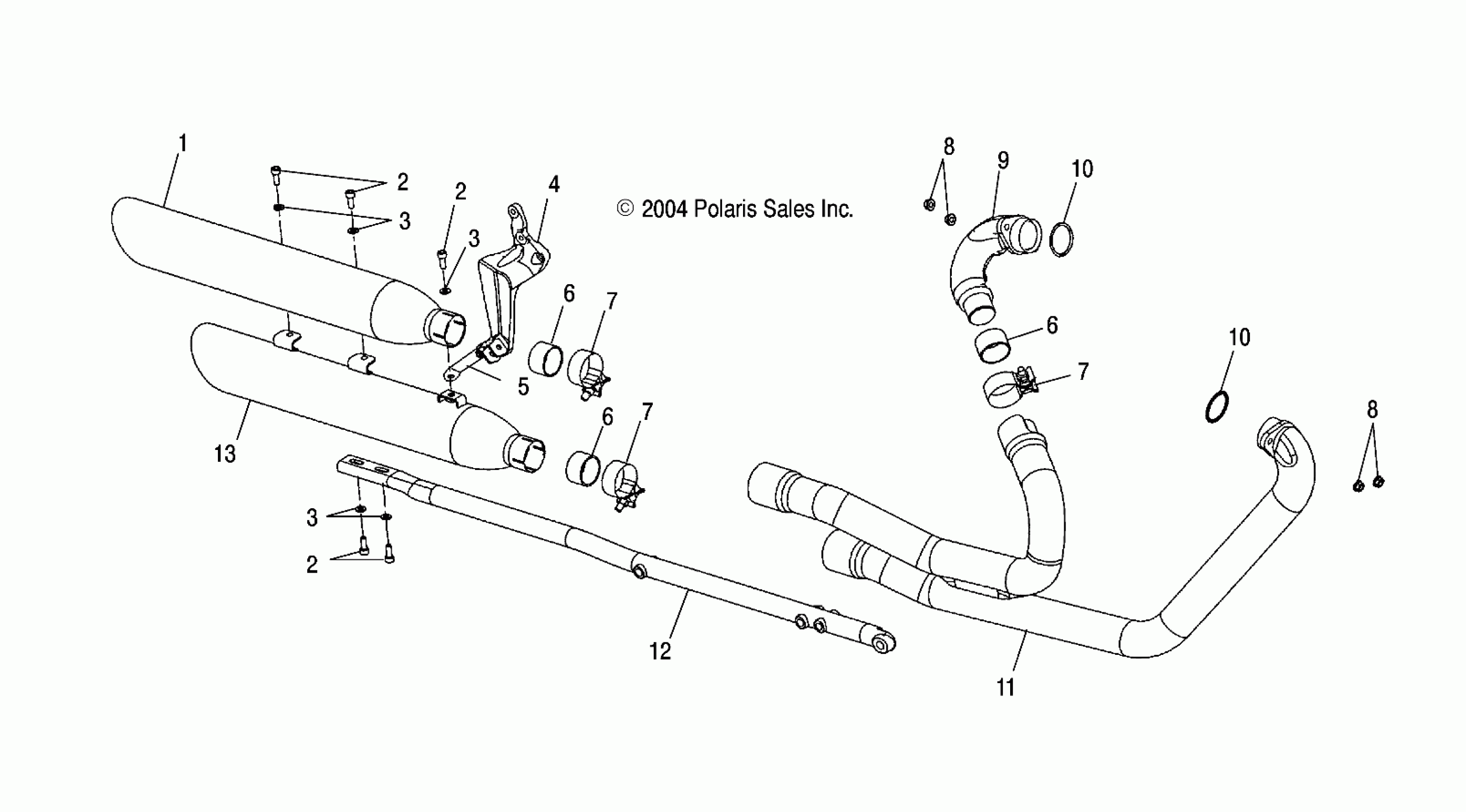

Polaris VICTORY VEGAS ALL OPTIONS - V05AB16/EC16/GB16 ENGINE, EXHAUST SYSTEM - V05AB16/EC16/GB16ALL OPTIONS (4996239623C08) Diagram

#

Description
Price

1

Asm., Muffler, Rear, 49 States

1261291

$969.99

1

Asm., Muffler, RH, California

1261293

$744.99

2

SCREW

7517523

Unavailable

2

SCREW

7517523

Unavailable

2

SCREW

7517523

Unavailable

3

Washer, Flat

7556245

$4.79

3

Washer, Flat

7556245

$4.79

3

Washer, Flat

7556245

$4.79

4

Footpeg, Passenger, Silver, RH

1014127-385

$182.54

5

Bracket, Exhaust, Upper

5246787-236

$23.02

6

Gasket, Exhaust

5811770

Unavailable

6

Gasket, Exhaust

5811770

Unavailable

6

Gasket, Exhaust

5811770

Unavailable

7

Clamp, Muffler

7081028

Unavailable

7

Clamp, Muffler

7081028

Unavailable

7

Clamp, Muffler

7081028

Unavailable

8

NUT

7546805

Unavailable

8

NUT

7546805

Unavailable

9

CLAMP, HEAT SHIELD

7080774

Unavailable

9

Manifold, Exhaust, Rear

1261087

$163.49

9

Shield, Heat, U-Tube

1261260

$188.10

9

Asm., U-Tube

1261328

$155.56

10

GASKET, EXHAUST SEALING

5246008

Unavailable

10

GASKET, EXHAUST SEALING

5246008

Unavailable

11

CLAMP, HEAT SHIELD

7080774

Unavailable

11

Shield, Exhaust, Rear

1261105

$237.30

11

Shield, Exhaust, Front

1261095

$189.43

11

Asm., Header Pipe

1261323

Unavailable

11

Pipe, Header

1261324

Unavailable

12

CRADLE, RH [SEE MAIN FRAME PG. A3, REF. 10]

-------

Unavailable

13

Asm., Muffler Front, 49 States

1261290

$569.99

13

Asm., Muffler, LH, California

1261292

$744.99
