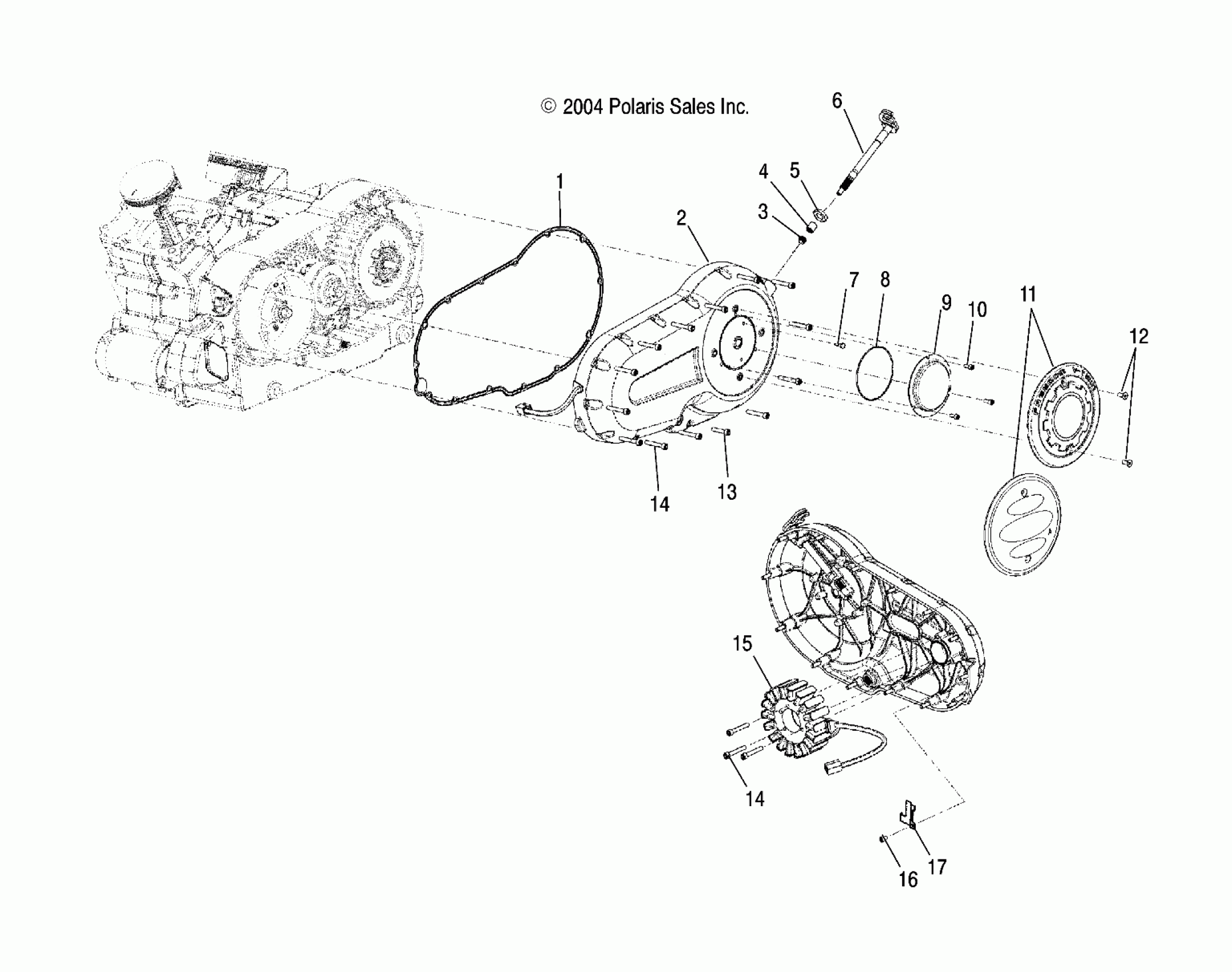

Polaris VICTORY VEGAS ALL OPTIONS - V05AB16/EC16/GB16 DRIVE TRAIN, PRIMARY COVER - V05AB16/EC16/GB16ALL OPTIONS (4996239623D07) Diagram

#

Description
Price

1

GASKET, PRIMARY COVER

5830223

$55.56

1

Kit, Gasket, Beaded Paper

5830227

$55.56

2

Asm. Primary Cover, Chrome [Incl. 3,4,5][NSS, Vegas]

3021305

Unavailable

2

Asm., Primary Cover, Black [Incl. 3,4,5][EB]

3021546

$480.94

3

BEARING, NEEDLE

3512106

$21.81

4

BEARING,NDL,M12X16X10,CLTSHF

3552105

$21.81

5

Seal

3610059

Unavailable

6

Pinion, Clutch

1013770

$222.22

7

SCREW

7517499

$10.99

8

O-RING

5412230

Unavailable

9

PLATE, CAP SEAL

5246387

$49.99

10

Screw

7517483

$34.99

11

Cover, Primary Cap, Chrome [Vegas, EB]

5245960

Unavailable

11

Cover, Primary, Ness

5134063

Unavailable

12

SCREW

7517754

Unavailable

13

SCREW

7517301

$2.99

14

SCREW

7517261

$5.56

14

SCREW

7517261

$5.56

15

Stator

4010436

$229.37

16

SCREW

7517515

$8.71

17

Bracket, Stator Wire

5245036

$4.13
