- VICTORY VEGAS ALL OPTIONS - V05AB16/EC16/GB16
CHASSIS, R.H. FOOTPEG/FLOORBOARD/BRAKE - V05AB16/EC16/GB16ALL OPTIONS (4996239623A07)

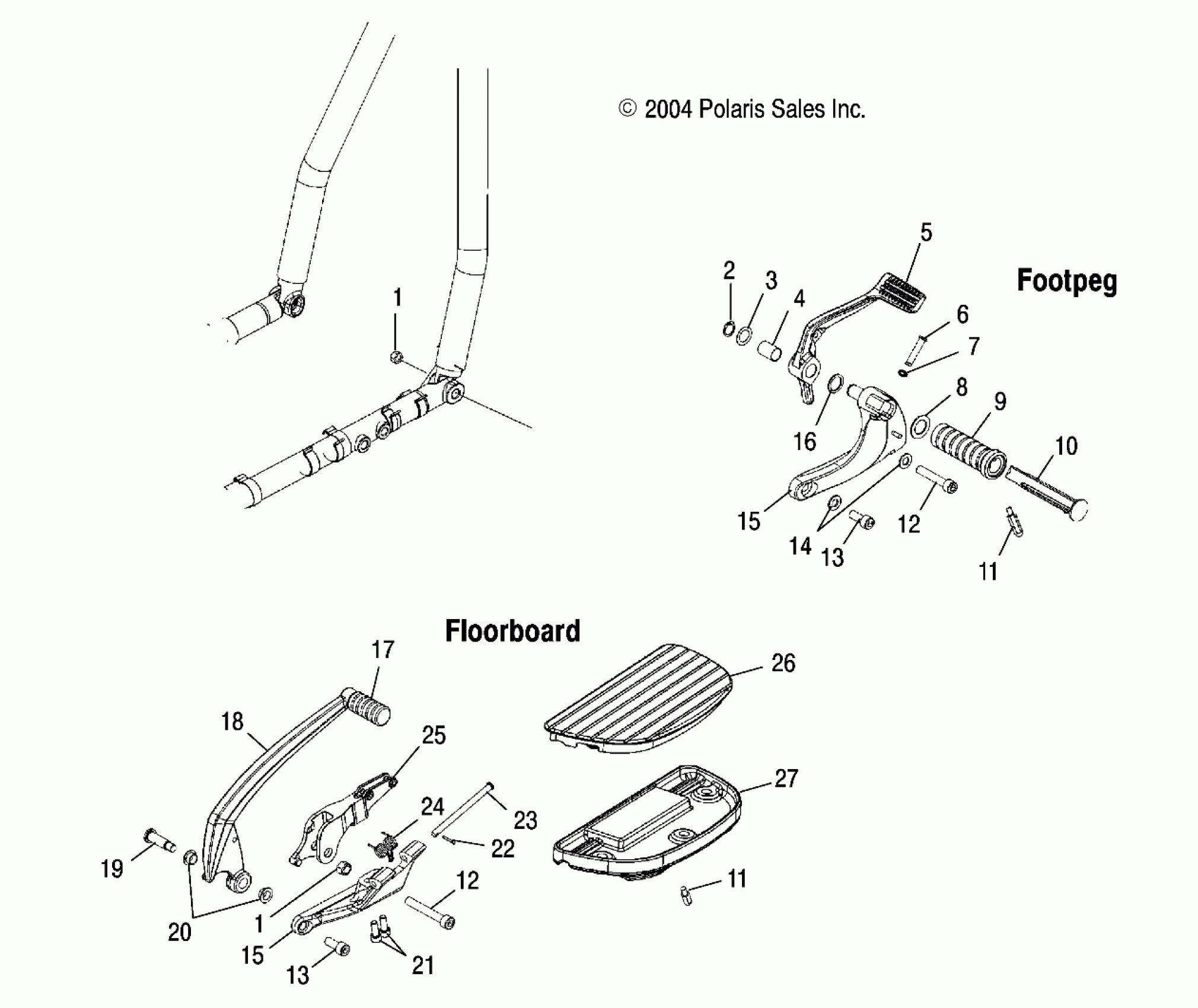

Polaris VICTORY VEGAS ALL OPTIONS - V05AB16/EC16/GB16 CHASSIS, R.H. FOOTPEG/FLOORBOARD/BRAKE - V05AB16/EC16/GB16ALL OPTIONS (4996239623A07) Diagram
#
1
NUT
7547039
Unavailable
1
NUT
7547039
Unavailable
2
RING, RETAINING, EXTERNAL
7710499
$7.19
3
WASHER, FLAT
7556075
Unavailable
4
BEARING-SHIFT PEDAL
3514335
Unavailable
5
Pedal, Brake Lever, Silver
5133525-385
Unavailable
5
Pedal, Brake Lever, Chrome
5133525-156
$370.94
5
Pedal, Brake Lever, Black [Eight Ball]
5133525-067
$195.24
6
Pin, Pivot
7661167
$7.94
7
Ring, Retaining
7710545
$1.98
8
Washer, Flat
7556241
Unavailable
9
PAD, FOOTPEG
5412256
Unavailable
10
Footpeg, CC, RH
5133526-411
Unavailable
10
Footpeg, CC, Chrome, RH
5133526-156
Unavailable
11
FEELER, FOOTPEG
5133539
Unavailable
11
FEELER, FOOTPEG
5133539
Unavailable
12
SCREW
7518146
Unavailable
12
SCREW
7518146
Unavailable
13
SCREW
7518101
Unavailable
13
SCREW
7518101
Unavailable
14
WASHER, FLAT
7556234
$3.19
15
Support, Footpeg, Silver, RH
5133529-385
$237.30
15
Support, Footpeg, Chrome, RH
5133529-156
Unavailable
15
Support, Floorboard, RH
5133864-385
$266.49
15
Support, Footpeg, Black, RH [EB]
5133529-067
$172.22
15
Support, Footpeg, Silver, RH
5133529-385
$237.30
15
Support, Footpeg, Chrome, RH
5133529-156
Unavailable
15
Support, Floorboard, RH
5133864-385
$266.49
15
Support, Footpeg, Black, RH [EB]
5133529-067
$172.22
16
WASHER, WAVE
7556273
Unavailable
17
PAD, FOOTPEG
5412256
Unavailable
18
Pedal, Brake Lever
5134178-410
Unavailable
19
Screw, Brake Pivot
7517715
Unavailable
20
BUSHING, PEDAL
5020904
Unavailable
21
SCREW
7517410
Unavailable
22
PIN, COTTER
7661094
Unavailable
23
PIN, FLOORBOARD SUPPORT
7661095
$2.99
24
Spring, Floorboard Support
7041623
$27.99
25
Support, Brake Pedal
5134199-385
$139.68
26
Pad, Floorboard
5412456
Unavailable
27
Floorboard, Driver, Bur
5134061-425
Unavailable
