- VICTORY VEGAS ALL OPTIONS - V05AB16/EC16/GB16
CHASSIS, L.H. FOOTPEG/FLOORBOARD/SHIFT - V05AB16/EC16/GB16ALL OPTIONS (4996239623A06)

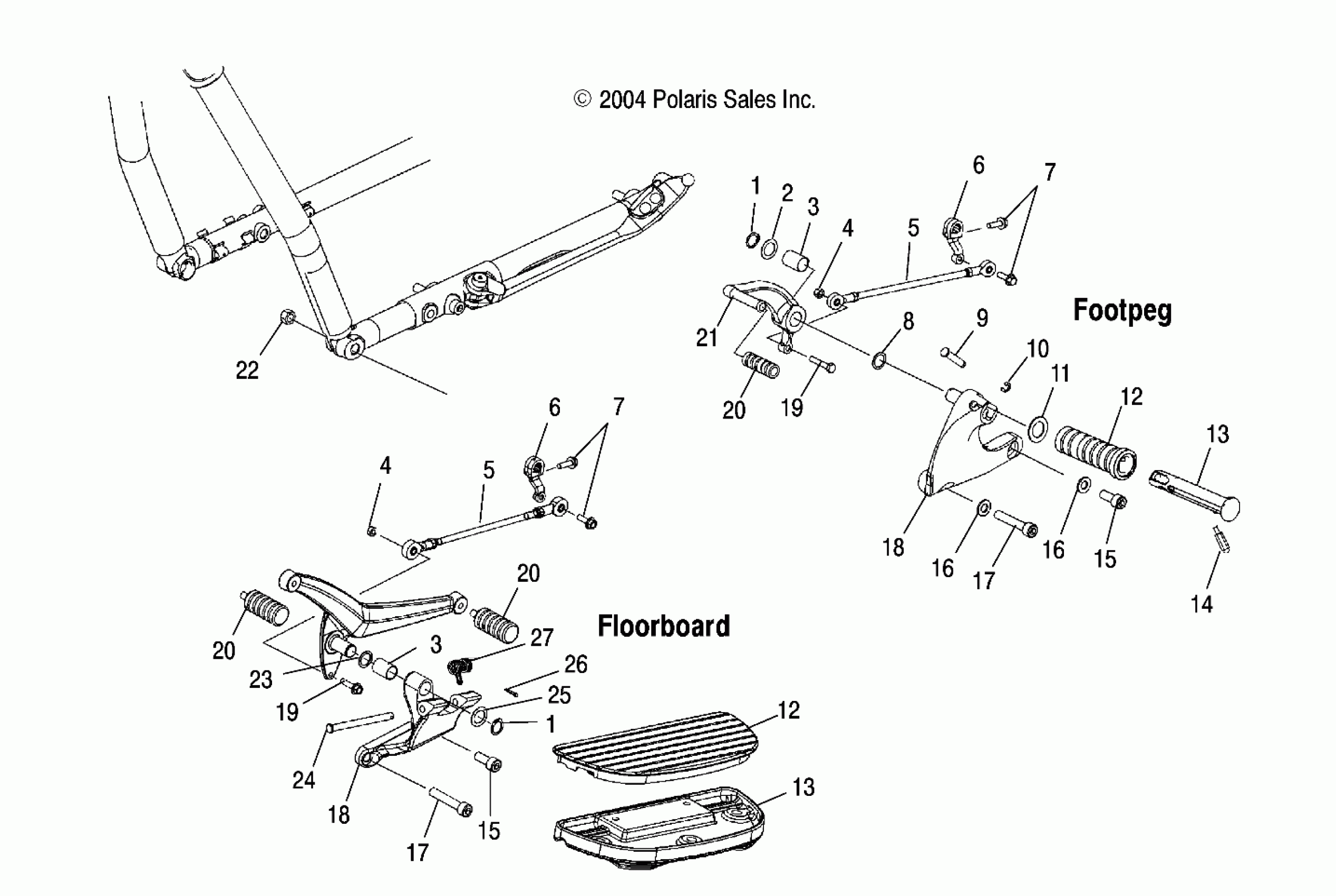

Polaris VICTORY VEGAS ALL OPTIONS - V05AB16/EC16/GB16 CHASSIS, L.H. FOOTPEG/FLOORBOARD/SHIFT - V05AB16/EC16/GB16ALL OPTIONS (4996239623A06) Diagram
#
1
RING, RETAINING, EXTERNAL
7710499
$7.19
1
RING, RETAINING, EXTERNAL
7710499
$7.19
2
WASHER, FLAT
7556075
Unavailable
3
BEARING-SHIFT PEDAL
3514335
Unavailable
3
BEARING-SHIFT PEDAL
3514335
Unavailable
4
NUT
7547230
Unavailable
4
NUT
7547230
Unavailable
5
Asm., Shifter Linkage [Footpeg]
1013957
Unavailable
5
Asm., Shifter Linkage [Floorboard]
1014246
Unavailable
5
Asm., Shifter Linkage [Footpeg]
1013957
Unavailable
5
Asm., Shifter Linkage [Floorboard]
1014246
Unavailable
6
LEVER, SHIFTER
5133530
Unavailable
6
LEVER, SHIFTER
5133530
Unavailable
7
SCREW
7518141
$4.79
7
SCREW
7518141
$4.79
8
WASHER, WAVE
7556273
Unavailable
9
Pin, Pivot
7661167
$7.94
10
Ring, Retaining
7710545
$1.98
11
Washer, Flat
7556241
Unavailable
12
PAD, FOOTPEG
5412256
Unavailable
12
PAD, FLOORBOARD, DRIVER
5412456
Unavailable
12
PAD, FOOTPEG
5412256
Unavailable
12
PAD, FLOORBOARD, DRIVER
5412456
Unavailable
13
Footpeg, CC, LH
5133540-411
$105.02
13
Footpeg, CC, Chrome, LH
5133540-156
Unavailable
13
Floorboard, Driver, Ball Burnish
5134061-425
Unavailable
13
Floorboard, Driver, Chrome [NSS]
5134061-156
Unavailable
13
Footpeg, CC, LH
5133540-411
$105.02
13
Footpeg, CC, Chrome, LH
5133540-156
Unavailable
13
Floorboard, Driver, Ball Burnish
5134061-425
Unavailable
13
Floorboard, Driver, Chrome [NSS]
5134061-156
Unavailable
14
FEELER, FOOTPEG
5133539
Unavailable
15
SCREW
7518101
Unavailable
15
SCREW
7518101
Unavailable
16
WASHER, FLAT
7556234
$3.19
16
WASHER, FLAT
7556234
$3.19
17
SCREW
7518146
Unavailable
17
SCREW
7518146
Unavailable
18
Support, Footpeg, Silver, LH
5133527-385
Unavailable
18
Support, Footpeg, Chrome, LH
5133527-156
$384.99
18
Support, Floorboard, LH
5133863-067
$170.63
18
Support, Footpeg, Black, LH [EB]
5133527-067
$184.13
18
Support, Footpeg, Silver, LH
5133527-385
Unavailable
18
Support, Footpeg, Chrome, LH
5133527-156
$384.99
18
Support, Floorboard, LH
5133863-067
$170.63
18
Support, Footpeg, Black, LH [EB]
5133527-067
$184.13
19
Screw [Footpeg]
7518147
Unavailable
19
Screw [Floorboard]
7517751
$7.19
19
Screw [Footpeg]
7518147
Unavailable
19
Screw [Floorboard]
7517751
$7.19
20
PEG-SHIFTER, BRAKE [Floorboard]
5412493
Unavailable
20
Pad, Shift Pedal [Footpeg]
5411364
$23.99
20
PEG-SHIFTER, BRAKE [Floorboard]
5412493
Unavailable
20
Pad, Shift Pedal [Footpeg]
5411364
$23.99
20
PEG-SHIFTER, BRAKE [Floorboard]
5412493
Unavailable
20
Pad, Shift Pedal [Footpeg]
5411364
$23.99
21
Pedal, Shifter Lever [Floorboard]
5134179-410
$319.99
21
Pedal, Shift Lever, Silver [Footpeg]
5133528-385
Unavailable
21
Pedal, Shift Lever, Chrome [Footpeg]
5133528-156
Unavailable
21
Pedal, Shift Lever, Black [Footpeg][EB]
5133528-067
$104.76
22
NUT
7547039
Unavailable
23
Washer, Wave
7556149
$2.38
24
PIN, FLOORBOARD SUPPORT
7661095
$2.99
25
WASHER, FLAT
7556075
Unavailable
26
PIN, COTTER
7661094
Unavailable
27
SPRING, SUPPORT, FLOORBOARD
7041623
$27.99
