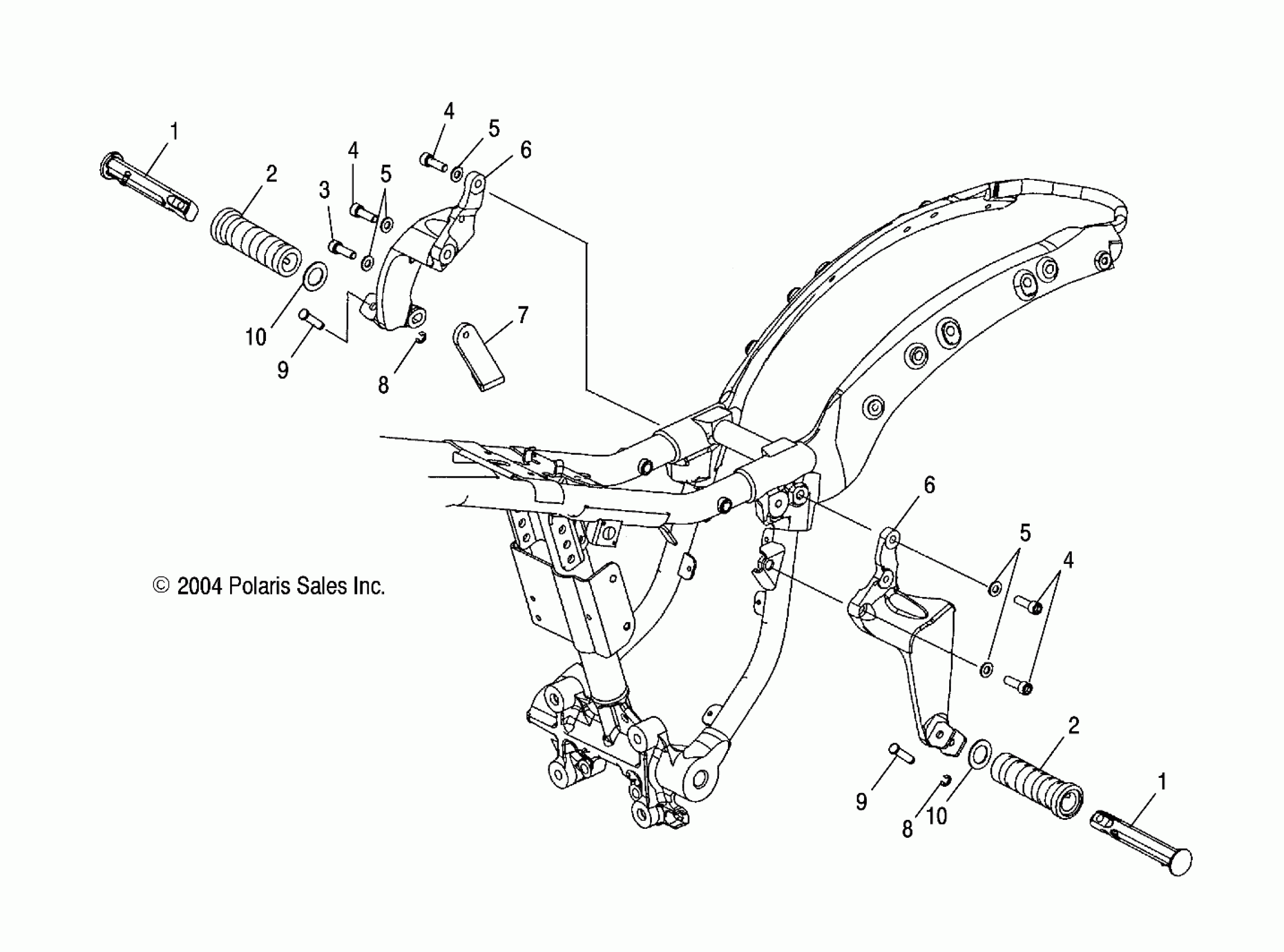

Polaris VICTORY VEGAS ALL OPTIONS - V05AB16/EC16/GB16 CHASSIS, FOOTPEGS, PASSENGER - V05AB16/EC16/GB16ALL OPTIONS (4996239623A05) Diagram

#

Description
Price

1

Footpeg, Clear, LH

5133540-411

$105.02

1

Footpeg, Chrome, LH

5133540-156

Unavailable

1

Footpeg, Clear, RH

5133526-411

Unavailable

1

Footpeg, Chrome, RH

5133526-156

Unavailable

1

Footpeg, Clear, LH

5133540-411

$105.02

1

Footpeg, Chrome, LH

5133540-156

Unavailable

1

Footpeg, Clear, RH

5133526-411

Unavailable

1

Footpeg, Chrome, RH

5133526-156

Unavailable

2

PAD, FOOTPEG, REAR

5412261

$20.22

2

PAD, FOOTPEG, REAR

5412261

$20.22

3

Screw

7518149

Unavailable

4

SCREW

7518142

$10.32

4

SCREW

7518142

$10.32

4

SCREW

7518142

$10.32

5

Washer, Flat

7556245

$4.76

5

Washer, Flat

7556245

$4.76

5

Washer, Flat

7556245

$4.76

6

Mount, Footpeg, Passenger, Silver, RH

1014127-385

$182.54

6

Mount, Footpeg, Passenger, Silver, LH

1014126-385

$182.54

6

Mount, Footpeg, Passenger, Chr., LH

1014126-156

$174.60

6

Mount, Footpeg, Passenger, Chr., RH

1014127-156

$196.83

6

Support, Footpeg, Passenger, RH [EB]

5133581-067

$204.76

6

Mount, Footpeg, Passenger, Silver, RH

1014127-385

$182.54

6

Mount, Footpeg, Passenger, Silver, LH

1014126-385

$182.54

6

Mount, Footpeg, Passenger, Chr., LH

1014126-156

$174.60

6

Mount, Footpeg, Passenger, Chr., RH

1014127-156

$196.83

6

Support, Footpeg, Passenger, RH [EB]

5133581-067

$204.76

7

Bracket, Exhaust, Upper

5246787-236

$23.02

7

Bracket, Exhaust, Upper [Eight Ball]

5246787-067

Unavailable

7

Bracket, Exhaust, Upper Chr. [NSS]

5246787-156

$77.78

8

Ring, Retaining

7710545

$1.98

8

Ring, Retaining

7710545

$1.98

9

Pin, Pivot

7661168

$7.94

9

Pin, Pivot

7661168

$7.94

10

WASHER-FOOTPEG,PIVOT

7556274

$3.17

10

WASHER-FOOTPEG,PIVOT

7556274

$3.17
