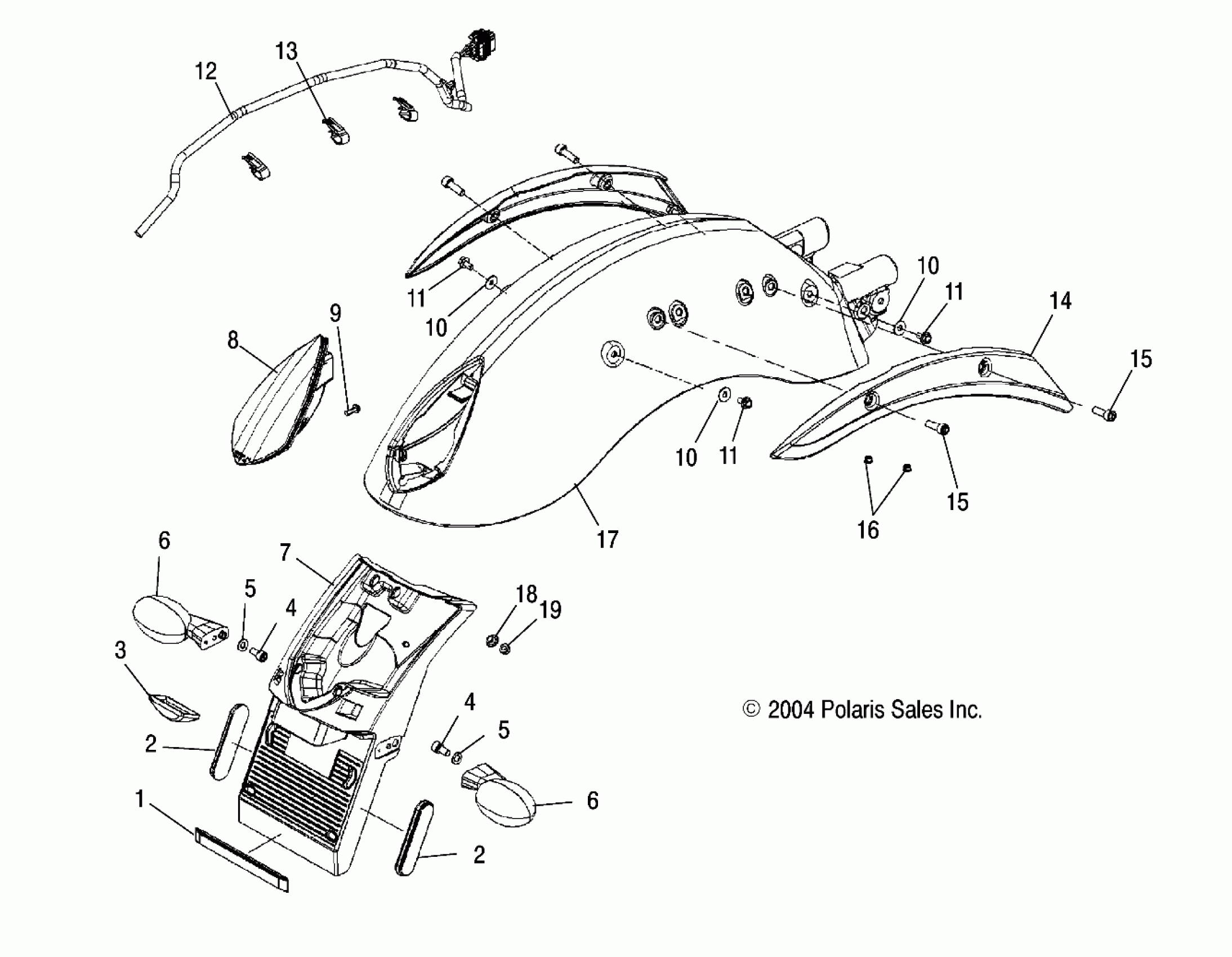

Polaris VICTORY VEGAS ALL OPTIONS - V05AB16/EC16/GB16 BODY, REAR FENDER and TAILLIGHT - V05AB16/EC16/GB16ALL OPTIONS (4996239623B09) Diagram

#

Description
Price

1

ASM., REFLECTOR, RED

2670070

$9.84

2

REFLECTOR, RED

5434624

$32.37

2

REFLECTOR, RED

5434624

$32.37

3

HOUSING, LICENSE PLATE LIGHT

5132233

$32.37

4

SCREW

7517305

$5.22

4

SCREW

7517305

$5.22

5

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

5

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

6

Bulb, Single Filament, 10W

4010742

$10.63

6

SIGNAL, INC, REAR, RH

2410440

$52.60

6

SIGNAL, INC, REAR, LH

2410439

Unavailable

6

Bulb, Single Filament, 10W

4010742

$10.63

6

SIGNAL, INC, REAR, RH

2410440

$52.60

6

SIGNAL, INC, REAR, LH

2410439

Unavailable

7

BRACKET, LICENSE PLATE

5435514

$93.08

8

Taillight, LED

2410470

Unavailable

9

SCREW

7518275

$3.97

10

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

10

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

10

WSHR-6.4X18.0X1.6 ZPB

7556064

$5.22

11

SCREW

7517704

$7.84

11

SCREW

7517704

$7.84

11

SCREW

7517704

$7.84

12

Harness, Rear

2410473

Unavailable

13

CLIP, ELECTRICAL

7080737

$4.76

14

Cover, Frame, Rail, LH, Chrome

5631635-156

$178.08

14

Cover, Frame, Rail, RH, Chrome

5631636-156

$170.63

14

Cover, Frame, Rail, LH, Black

5631635-266

$68.25

14

Cover, Frame, Rail, RH, Black

5631636-266

$93.08

15

SCREW

7518084

$7.14

15

SCREW

7518084

$7.14

16

PLUG, FENDER, REAR

7671178

$2.02

17

Fender, Rear, Black

1014064-266

Unavailable

17

Fender, Rear, Blue

1014064-341

$869.99

17

Fender, Rear, Red

1014064-342

$889.99

17

Fender, Rear, Yellow

1014064-388

$869.99

17

Fender, Rear, Blue/Silver

1014064-1179

$869.99

17

Fender, Rear, White/Silver

1014064-1187

$869.99

17

Fender, Rear, Red/Tri Fade

1014064-1188

$869.99

17

Fender, Rear, Black/Flames

1014064-1189

$939.99

17

Fender, Rear, Black/Blue

1014064-1200

$869.99

18

SLEEVE, SHOULDERED, M6

5134082

$3.17

19

Nut

7710495

$5.22
