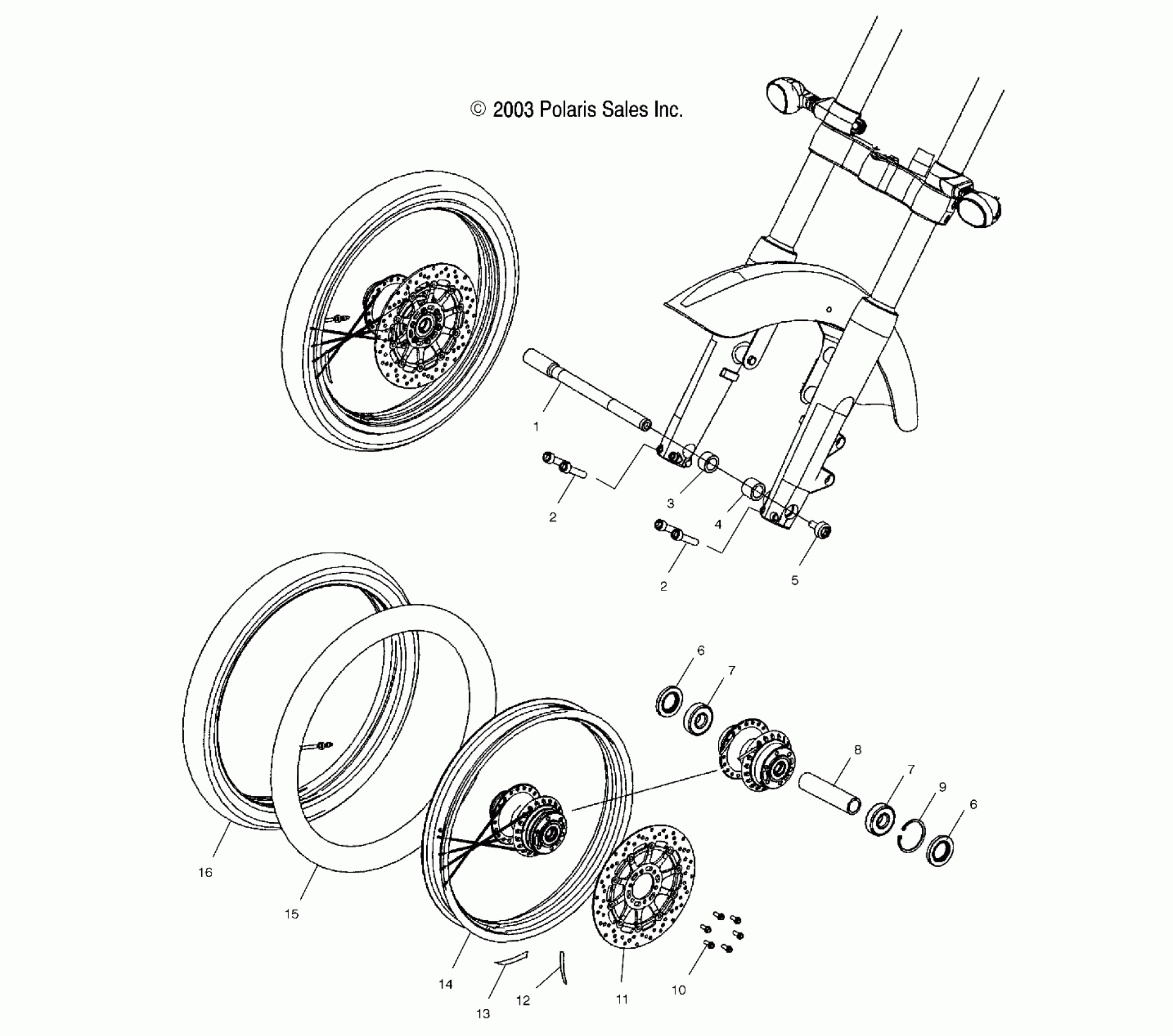

Polaris VICTORY VEGAS ALL OPTIONS - V04GB16/NC16 WHEELS, FRONT (SPOKED) - V04GB16CA/CB/CC/CE/CG/CJ/CK/CL/DA/DB/DC/DE/DG/DJ/DK/DL/LA/LB/LC/LE/LG/LJ/LK/LL/UA/UB/UC/UE/UG/UJ/UK/UL (4989548954B01) Diagram

#

Description

Price

1

Axle, Front

5133593

Unavailable

2

SCREW

7517517

Unavailable

2

SCREW

7517517

Unavailable

3

SPACER, BEARING, LH

5631479

Unavailable

4

SPACER, BEARING, LH

5631481

Unavailable

5

SCREW

7517936

Unavailable

6

SEAL

3610094

Unavailable

6

SEAL

3610094

Unavailable

7

BEARING, BALL

3514405

Unavailable

7

BEARING, BALL

3514405

Unavailable

8

Spacer, Bearing

5334138

Unavailable

9

Ring, Retaining

7710526

Unavailable

10

Screw

7518297

Unavailable

11

Rotor, Brake

1910623

Unavailable

12

Weight, Balance

1520618

Unavailable

13

Decal, Rim, Laced

7079024

Unavailable

14

Asm., Wheel, Front [Incl. 6,7,8,9, Rim, Weight, Flap, and Spokes]

1520366

$989.99

14

Rim

5133678

Unavailable

14

Flap, Rim

5812234

Unavailable

14

Spoke, Outer

5334020

$4.92

14

Spoke, Inner

5334022

$5.71

15

Tube, Tire, Inner

1821320

Unavailable

16

Tire, Front

5412263

Unavailable
